About the Bill-Of-Materials-Tools PCB

Bill-Of-Materials-Tools is an open source AVR/Arduino PCB design by Jesse-Millwood, published on GitHub. It is a board, with 99 components from 54 distinct parts.

Its main chip is the ATmega328P, from the AVR/Arduino family. Other key parts include the LTC4412, LTC6800, ADS1015, bq2057CTS and SM72238. By type, the board carries 39 resistors, 24 capacitors, 12 ICs, 7 diodes, 3 transistors and 3 connectors.

From the project

Scripts to automate filling out Bill of Materials

Bill Of Materials Tools =======================

Command Line tool for converting a Kicad Netlist or an Eagle schematic file to a CSV file in a BOM format.

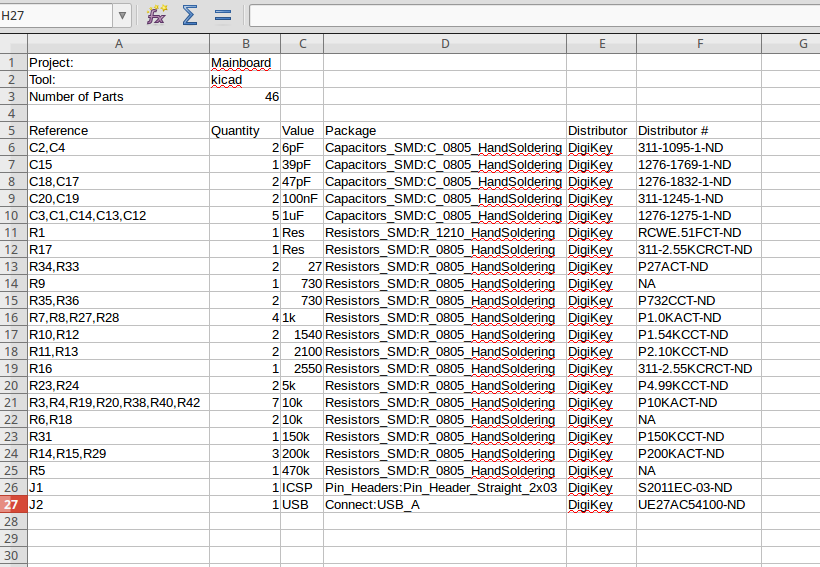

This will output a csv file that can be opened by just about any spreadsheet program. The parts are grouped by the type of part and identical parts. For the output argument, -o, do not put the file name. The output file will be RootnameofinputfileBOM.csv`.

Main components on the Bill-Of-Materials-Tools

LTC4412ATmega328PLTC6800ADS1015bq2057CTSSM72238LMR61428FT230XLM75BDPHIH6130

Bill-Of-Materials-Tools bill of materials (BOM)

99 components, 54 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
LTC4412
U1
1
ATmega328P
U2
2
LTC6800
U3, U4
1
ADS1015
U5
2
bq2057CTS
U6, U7
1
SM72238
U8
1
LMR61428
U9
1
FT230X
U10
1
LM75BDP
U11
1
HIH6130
U12
1
FDC638
Q1
2
FZT788B
Q2, Q3
1
32kHz
X1
1
ICSP
J1
1
USB
J2
1
CONN_01X02
P1
2
Li-ion(2Cell)
B1, B2
1
Fiducial
F1
4
Mounting_Hole
H1, H2, H3, H4
2
NTC
TH1, TH2
Show 34 more
QtyPartRefs
3
1N5819
D1, D3, D4
1
LED
D2
1
Diode-Shottky
D5
1
GRN
D6
1
LED
D7
1
6.8uH
L1
5
1UF
1uF
C1, C3, C12, C13, C14
2
6PF
6pF
C2, C4
7
0.1uF
C5, C6, C7, C8, C9, C10, C22
1
22uF Tant
C11
1
39PF
39pF
C15
1
68uF Tant
C16
2
47PF
47pF
C17, C18
2
100NF
100nF
C19, C20
1
4.7uF
C21
1
0.22uF
C23
1
0.1
C24
1
Res
R1
1
0.5,1W
R2
9
10K
10k
R3, R4, R6, R18, R19, R20, R38, R40 +1
1
470K
470k
R5
4
1k
R7, R8, R27, R28
3
730
R9, R35, R36
2
1540
R10, R12
2
2100
R11, R13
3
200K
200k
R14, R15, R29
1
2550
R16
1
Res
R17
2
0.2, 1W
R21, R22
2
5k
R23, R24
3
49.9k
R25, R26, R32
1
49.9
R30
1
150K
150k
R31
2
27
R33, R34

Bill-Of-Materials-Tools design files

The KiCad project lives in the Jesse-Millwood/Bill-Of-Materials-Tools repository on GitHub; these links point at the commit this page was built from.

Bill-Of-Materials-Tools: common questions

What microcontroller does the Bill-Of-Materials-Tools use?

The Bill-Of-Materials-Tools is built around the ATmega328P, from the AVR/Arduino family.

How many components are on the Bill-Of-Materials-Tools?

99 components, from 54 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Bill-Of-Materials-Tools design files?

From the Jesse-Millwood/Bill-Of-Materials-Tools repository on GitHub, which has a netlist and the BOM; the links under Design files point to each one.

Can I use the Bill-Of-Materials-Tools design in my own project?

The repository has no license, so all rights stay with Jesse-Millwood. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Bill-Of-Materials-Tools without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
