About the ScriptPad PCB

ScriptPad is an open source RP2040/RP2350 PCB design by jfm92, published on GitHub under the MIT license. It is a 2-layer board measuring 219.8 × 111.3 mm, with 74 components from 22 distinct parts.

Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the AP2112K-3.3, W25Q32JVZP and 74HCT1G125GV,125. By type, the board carries 14 capacitors, 12 LEDs, 12 diodes, 12 resistors, 4 ICs and 3 switches.

From the project

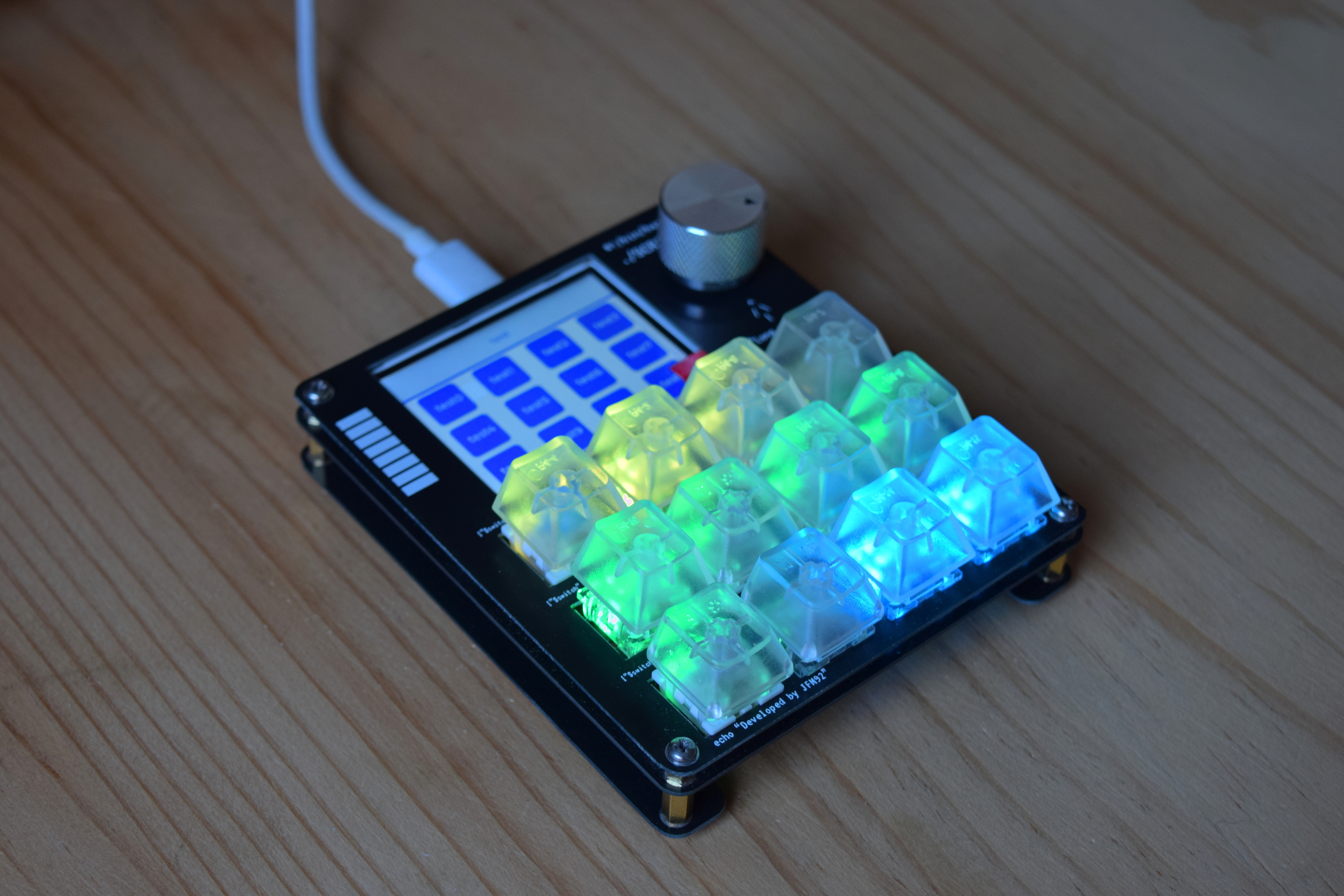

The scriptPad project is a macroPad fully customizable with build in USB WebPage allowing to configure every aspect of the device without extra software or web page, everything you need in a single device.

Main components on the ScriptPad

RP2040 AP2112K-3.3 W25Q32JVZP74HCT1G125GV,125

ScriptPad bill of materials (BOM)

74 components, 22 distinct parts.

Qty	Part	Footprint	Refs
1	RP2040	QFN-56-1EP_7x7mm_P0.4mm_EP3.2x3.2mm	U1
1	AP2112K-3.3	SOT-23-5	U2
1	W25Q32JVZP	SOIC-8_L5.3-W5.3-P1.27-LS8.0-BL	U3
1	74HCT1G125GV,125	SOT-753_L3.1-W1.7-P0.95-LS3.0-BL	U4
1	X322512MSB4SI	OSC-SMD_4P-L3.2-W2.5-BL	X1
1	Conn_01x05_Pin	PinHeader_1x05_P1.27mm_Vertical	J1
1	XKTF-015-N	TF-SMD_XKTF-015-N	Card1
1	FPC-05F-18PH20	FPC-SMD_18P-P0.50_FPC-05F-18PH20	FPC1
1	ED11301M-FB12A4.0-C20-102-G219	SW-TH_CTR_ED11301M-FB12A4.0-C20-102-G219	SW1
2	TS365CA	SW-SMD_TS365CA	SW2, SW3
12	CPG151101S11-16	SW_Hotswap_Kailh_MX_1.00u	SW_CN1, SW_CN2, SW_CN3, SW_CN4, SW_CN5, SW_CN6, SW_CN7, SW_CN8 +4
1	TYPE-C-31-M-12	USB-C_SMD-TYPE-C-31-M-12	USBC1
12	SK6812MINI-EA	LED-SMD_4P-L3.2-W2.8_SK6812MINI-EA	LED1, LED2, LED3, LED4, LED5, LED6, LED7, LED8 +4
12	LL4148	D_MiniMELF	D1, D2, D3, D4, D5, D6, D7, D8 +4
2	10uF	C_0805_2012Metric	C1, C2
3	2u2	C_0805_2012Metric	C3, C7, C11
7	100n	C_0603_1608Metric	C4, C8, C9, C10, C12, C13, C14
2	12pF	C_0603_1608Metric	C5, C6
2	5.1K	R_0603_1608Metric	R1, R2
2	1k	R_0805_2012Metric	R3, R5

Show 2 more

Qty	Part	Footprint	Refs
6	10K	R_0805_2012Metric	R4, R6, R7, R8, R9, R10
2	22	R_0603_1608Metric	R11, R12

ScriptPad design files

The KiCad project lives in the jfm92/scriptPad repository on GitHub; these links point at the commit this page was built from.

LayoutscriptPad_PCB/scriptPad_PCB.kicad_pcb
SchematicscriptPad_PCB/scriptPad_PCB.kicad_sch

ScriptPad: common questions

What microcontroller does the ScriptPad use?

The ScriptPad is built around the RP2040, from the RP2040/RP2350 family.

How big is the ScriptPad PCB?

The ScriptPad measures 219.8 × 111.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the ScriptPad?

74 components, from 22 distinct parts. The full bill of materials is listed on this page.

Where can I download the ScriptPad design files?

From the jfm92/scriptPad repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the ScriptPad design in my own project?

Yes, under the terms of its MIT license, which jfm92 chose for the repository.

Can I test firmware for the ScriptPad without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
