Dragon32Issue2
About the Dragon32Issue2 PCB
Dragon32Issue2 is an open source PCB design by jimbro1000, published on GitHub under the MIT license. It is a 2-layer board measuring 253 × 169.1 mm, with 206 components from 97 distinct parts.
Other key parts include the HYB4116, LM1889N, 2318, MC14053 and MC6847. By type, the board carries 70 resistors, 62 capacitors, 35 ICs, 9 diodes, 7 jumpers and 4 inductors.
From the project

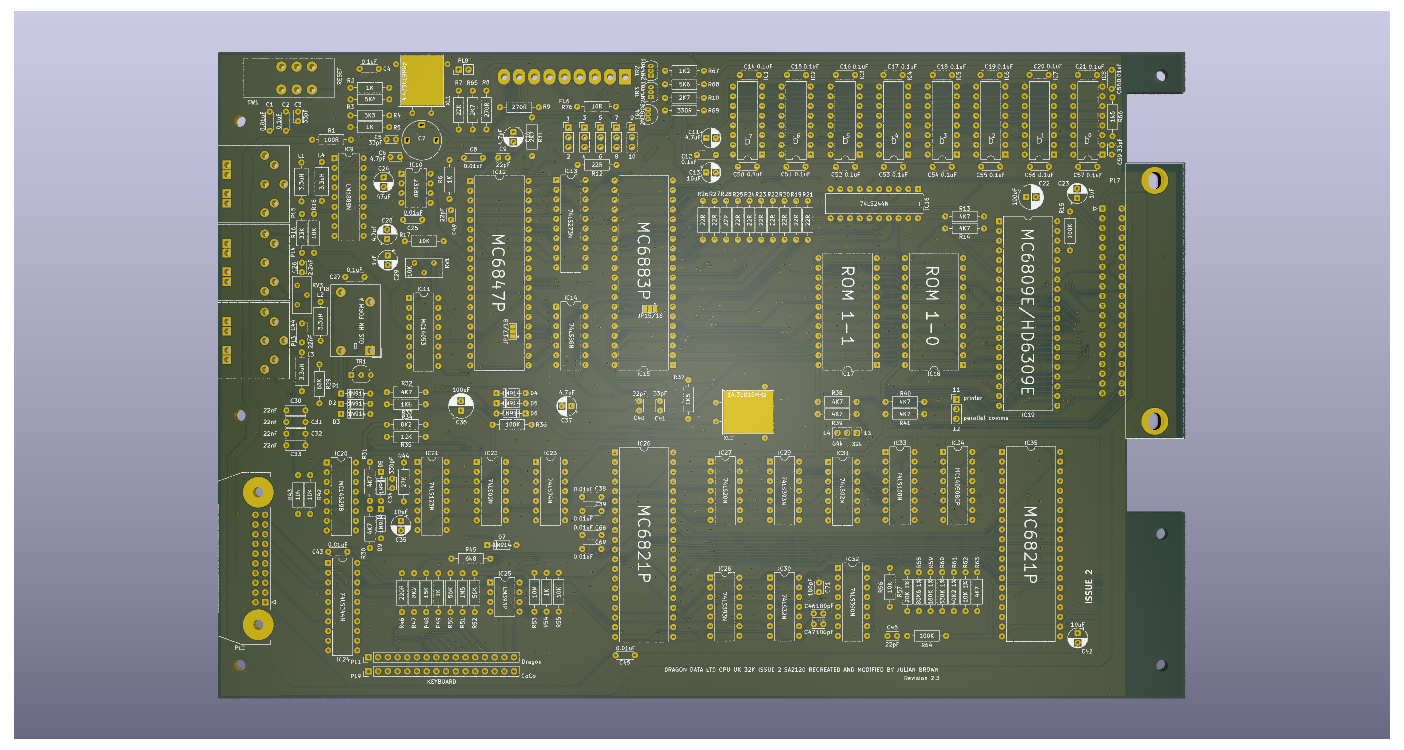

Recreation of early Dragon 32 mainboard
This project is a recreation of the SA2120 CPU Mainboard for the 1982 Dragon Data Dragon 32
Everything (excluding modifications) is taken from the SA2120 schematics. Component positioning is as close to the original too. The DRAM positions are as close as possible to the 1982 board but in preference use 4164s instead and set the memory configuration jumpers appropriately, this avoids transplanting a riser board to use the 16x16k configuration. The 16x16k should still work of course...
Main components on the Dragon32Issue2
Dragon32Issue2 bill of materials (BOM)
206 components, 97 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 8 | HYB4116 | DIP-16_W7.62mm | IC1, IC2, IC3, IC4, IC5, IC6, IC7, IC8 |
| 1 | LM1889N | DIP-18_W7.62mm | IC9 |
| 1 | 2318 | DIP-8_W7.62mm | IC10 |
| 1 | MC14053 | DIP-16_W7.62mm | IC11 |
| 1 | MC6847 | DIP-40_W15.24mm | IC12 |
| 1 | 74LS273N | DIP-20_W7.62mm | IC13 |
| 1 | 74LS86AN | DIP-14_W7.62mm | IC14 |
| 1 | MC6883 | DIP-40_W15.24mm | IC15 |
| 2 | 74LS244N | DIP-20_W7.62mm | IC16, IC24 |
| 2 | 68A364 | DIP-24_W15.24mm | IC17, IC18 |
| 1 | MC6809E | DIP-40_W15.24mm | IC19 |
| 1 | MC14529B | DIP-16_W7.62mm | IC20 |
| 1 | 74LS123N | DIP-16_W7.62mm | IC21 |
| 1 | 74LS00N | DIP-14_W7.62mm | IC22 |
| 1 | 74ALS74N | DIP-14_W7.62mm | IC23 |
| 1 | LM393P | DIP-8_W7.62mm | IC25 |
| 2 | MC6821 | DIP-40_W15.24mm | IC26, IC35 |
| 1 | 74LS20N | DIP-14_W7.62mm | IC27 |
| 2 | 74LS393N | DIP-14_W7.62mm | IC28, IC29 |
| 1 | 74LS32N | DIP-14_W7.62mm | IC30 |
Show 77 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 74LS02N | DIP-14_W7.62mm | IC31 |
| 1 | 74LS390 | DIP-16_W7.62mm | IC32 |
| 1 | 74LS138N | DIP-16_W7.62mm | IC33 |
| 1 | MC14050BCP | DIP-16_W7.62mm | IC34 |
| 1 | 1 low | PinHeader_1x03_P2.54mm_Vertical | JP1-2 |
| 4 | 16k/32k | PinHeader_1x03_P2.54mm_Vertical | JP3-4, JP5-6, JP7-8, JP9-10 |
| 1 | printer/comms | PinHeader_1x03_P2.54mm_Vertical | JP11-12 |
| 1 | 32k/64k | PinHeader_1x03_P2.54mm_Vertical | JP13-14 |
| 1 | Dragon Keyboard | PinHeader_1x16_P2.54mm_Vertical | PL1 |
| 1 | Printer | IDC-Header_2x10-1MP_P2.54mm_Latch_Horizontal | PL2 |
| 1 | DIN-6 J/S R | DIN-6_DELTRON_671-0601_Horizontal | PL3 |
| 1 | DIN-5 (180) Cassette | DIN-5_DELTRON_671-0501_45deg_Horizontal | PL4 |
| 1 | DIN-6 J/S L | DIN-6_DELTRON_671-0601_Horizontal | PL5 |
| 1 | Power Board Interconnect | Molex_KK-396_A-41791-0009_1x09_P3.96mm_Vertical | PL6 |
| 1 | EDAC 392-040-558-201 | Edge_2x20_P2.54mm_OvalMP | PL7 |
| 1 | video | PinHeader_1x02_P2.54mm_Vertical | PL8 |
| 1 | CoCo Keyboard | PinHeader_1x16_P2.54mm_Vertical | PL9 |
| 1 | OJS HM FORM A | OJS HM 10A Relay | RL1 |
| 1 | 10K | Potentiometer_Bourns_3386X_Horizontal | RV1 |
| 1 | 470R | Potentiometer_Bourns_3386X_Horizontal | RV3 |
| 1 | RESET | Button_AlpsAlpine_SPUN190900 | SW1 |
| 1 | BC141 | TO-92_Inline_Wide | TR1 |
| 2 | 2N4401 | TO-92_Inline | TR2, TR3 |
| 1 | 2N3906 | TO-92_Inline | TR4 |
| 1 | 4.433619MHz | Crystal_HC49-U_Horizontal | XL1 |
| 1 | 14.31818MHz | Crystal_HC49-U_Horizontal | XL2 |
| 9 | 1N914 | D_DO-35_SOD27_P7.62mm_Horizontal | D1, D2, D3, D4, D5, D6, D7, D8 +1 |
| 4 | 3.3uH | L_Axial_L7.0mm_D3.3mm_P10.16mm_Horizontal_Fastron_MICC | L1, L2, L3, L4 |
| 10 | 0.01uF | C_Disc_D4.3mm_W1.9mm_P5.00mm | C1, C8, C25, C38, C39, C43, C45, C58 +2 |
| 20 | 0.1uF | C_Disc_D4.3mm_W1.9mm_P5.00mm | C2, C4, C12, C14, C15, C16, C17, C18 +12 |
| 4 | 33pF | C_Disc_D3.0mm_W2.0mm_P2.50mm | C3, C5, C41, C59 |
| 1 | 4.7pF | C_Disc_D3.0mm_W2.0mm_P2.50mm | C6 |
| 1 | 2-22pF | Trimmer-7.5mm | C7 |
| 4 | 22pF | C_Disc_D3.0mm_W2.0mm_P2.50mm | C9, C40, C48, C49 |
| 4 | 4.7uF | CP_Radial_D5.0mm_P2.50mm | C10, C11, C28, C37 |
| 3 | 10uF | CP_Radial_D5.0mm_P2.50mm | C13, C35, C42 |
| 2 | 100uF | CP_Radial_D6.3mm_P2.50mm | C22, C36 |
| 2 | 1uF | CP_Radial_D5.0mm_P2.50mm | C23, C29 |
| 1 | 47uF | CP_Radial_D5.0mm_P2.50mm | C24 |
| 1 | 2.2nF | C_Disc_D3.0mm_W2.0mm_P2.50mm | C26 |
| 5 | 22nF | C_Disc_D5.0mm_W2.5mm_P5.00mm | C30, C31, C32, C33, C44 |
| 1 | 330pF | C_Disc_D3.0mm_W2.0mm_P2.50mm | C34 |
| 2 | 180pF | C_Disc_D3.0mm_W2.0mm_P2.50mm | C46, C71 |
| 1 | 100pF | C_Disc_D3.0mm_W2.0mm_P2.50mm | C47 |
| 1 | 100R | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R1 |
| 5 | 1K | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R2, R5, R6, R49, R54 |
| 2 | 5K6 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R3, R68 |
| 1 | 3K3 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R4 |
| 1 | 22K | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R7 |
| 2 | 270R | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R8, R9 |
| 3 | 2K7 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R10, R11, R65 |
| 11 | 22R | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R12, R19, R20, R21, R22, R23, R24, R25 +3 |
| 10 | 4K7 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R13, R14, R30, R31, R32, R38, R39, R40 +2 |
| 3 | 100K | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R15, R36, R64 |
| 1 | 33K | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R16 |
| 6 | 10K | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R17, R18, R42, R43, R55, R56 |
| 1 | 68K | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R29 |
| 1 | 1K8 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R33 |
| 2 | 8K2 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R34, R47 |
| 1 | 12K | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R35 |
| 2 | 1K5 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R37, R66 |
| 1 | 27K | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R44 |
| 1 | 6K8 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R45 |
| 1 | 220R | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R46 |
| 1 | 15K | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R48 |
| 2 | 56K | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R50, R52 |
| 1 | 1M5 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R51 |
| 1 | 10M | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R53 |
| 1 | 20K 1% | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R57 |
| 1 | 80K6 1% | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R58 |
| 1 | 160K 1% | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R59 |
| 1 | 330K 1% | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R60 |
| 1 | 40K2 1% | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R61 |
| 1 | 10K 1% | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R62 |
| 1 | 1K2 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R67 |
| 1 | 330R | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R69 |
| 1 | 10R | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R76 |
