About the VersaTermMinus PCB

VersaTermMinus is an open source RP2040/RP2350 PCB design by jimbro1000, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 86.2 × 78 mm, with 53 components from 23 distinct parts.

Its main chip is the Raspberry Pi Pico, from the RP2040/RP2350 family. Other key parts include the MAX3232. By type, the board carries 23 resistors, 7 transistors, 6 connectors, 6 diodes, 5 capacitors and 3 switches.

From the project

Based on the VersaTerm project but slightly shrunk in the wash

Reduced and simplified version of David Hansel's VersaTerm project github.com/dhansel/VersaTerm

You can order PCBs for this project direct from PCBWay's shared projects (https://www.pcbway.com/project/shareproject/VersaTermMinus_d8ad71ad.html)

There are four significant changes to the board:

1. The barrel-jack power supply connection is deleted 2. The USB socket for keyboard is now micro-USB 3. The MAX3232 is integrated into the board 4. Where possible components are SMD

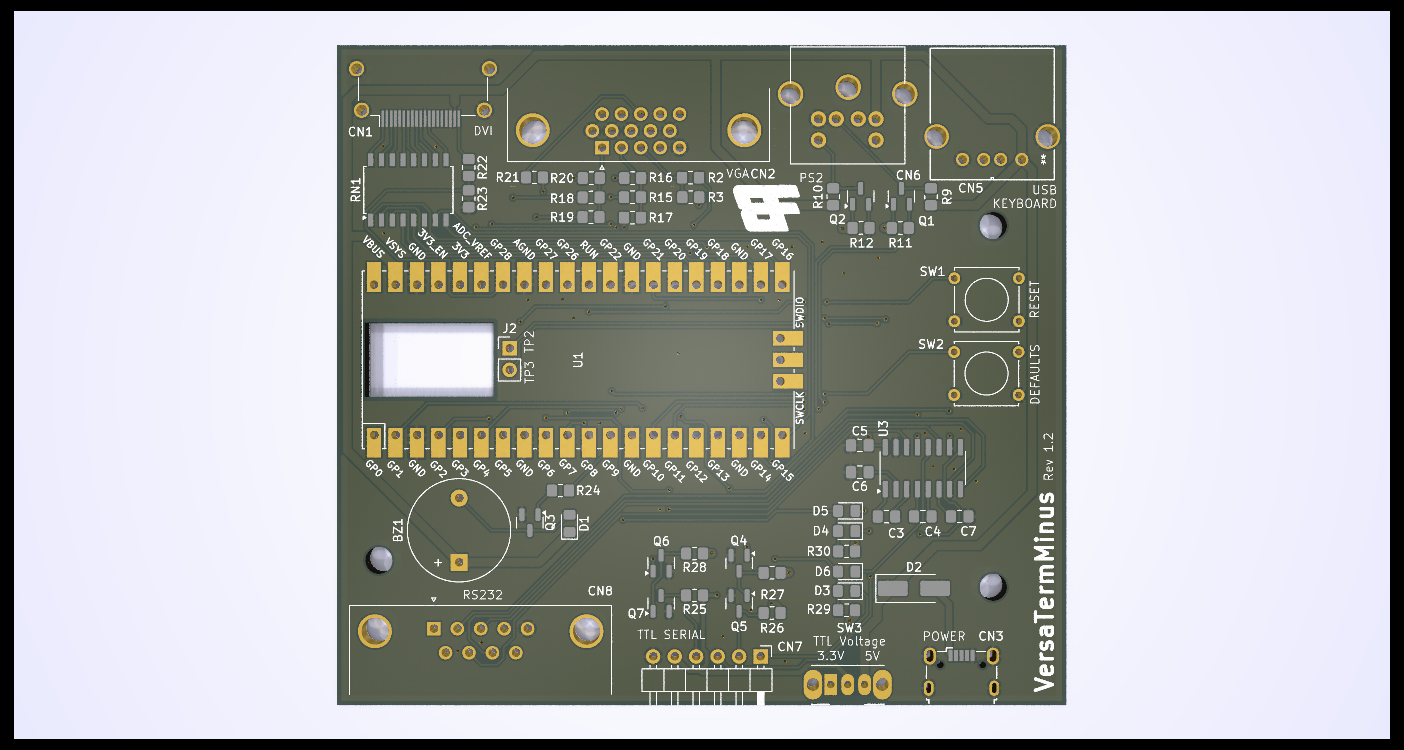

VersaTermMinus, from the project README — From the project README

Main components on the VersaTermMinus

Raspberry Pi Pico MAX3232

VersaTermMinus bill of materials (BOM)

53 components, 23 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
1	Raspberry Pi Pico	RPi_Pico_SMD_TH	U1
1	MAX3232	SOIC-16_3.9x9.9mm_P1.27mm	U3
7	2N7002	SOT-23	Q1, Q2, Q3, Q4, Q5, Q6, Q7
1	HDMI_A	HDMI_A_Amphenol_10029449-x01xLF_Horizontal	CN1
1	USB_B_Micro	USB_Micro-B_Wuerth_629105150521	CN3
1	USB-A	CONN_67643-2911_MOL	CN5
1	MINI-DIN-6 Mini-DIN-6	KMDGX-6S-N	CN6
1	TTL Serial	PinHeader_1x06_P2.54mm_Horizontal	CN7
1	USBDATA	PinHeader_1x02_P2.54mm_Vertical	J2
1	Buzzer	Buzzer_12x9.5RM7.6	BZ1
1	RESET	SW_Tactile_Straight_KSA0Axx1LFTR	SW1
1	DEFAULTS	SW_Tactile_Straight_KSA0Axx1LFTR	SW2
1	3V3/5V	SW_Slide_SPDT_Angled_CK_OS102011MA1Q	SW3
5	1N4148	D_0805_2012Metric_Pad1.15x1.40mm_HandSolder	D1, D3, D4, D5, D6
1	DBA140SL-HF	D_SMA_Handsoldering	D2
5	100NF 100nF	C_0805_2012Metric_Pad1.18x1.45mm_HandSolder	C3, C4, C5, C6, C7
5	470R	R_0805_2012Metric_Pad1.20x1.40mm_HandSolder	R2, R17, R20, R25, R26
7	1K	R_0805_2012Metric_Pad1.20x1.40mm_HandSolder	R3, R16, R19, R27, R28, R29, R30
5	10K	R_0805_2012Metric_Pad1.20x1.40mm_HandSolder	R9, R10, R11, R12, R23
2	2K2	R_0805_2012Metric_Pad1.20x1.40mm_HandSolder	R15, R18

Show 3 more

Qty	Part	Footprint	Refs
2	100R	R_0805_2012Metric_Pad1.20x1.40mm_HandSolder	R21, R24
1	4K7	R_0805_2012Metric_Pad1.20x1.40mm_HandSolder	R22
1	270R	SOIC-16W_5.3x10.2mm_P1.27mm	RN1

VersaTermMinus design files

The KiCad project lives in the jimbro1000/VersaTermMinus repository on GitHub; these links point at the commit this page was built from.

VersaTermMinus: common questions

What microcontroller does the VersaTermMinus use?

The VersaTermMinus is built around the Raspberry Pi Pico, from the RP2040/RP2350 family.

How big is the VersaTermMinus PCB?

The VersaTermMinus measures 86.2 × 78 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the VersaTermMinus?

53 components, from 23 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the VersaTermMinus design files?

From the jimbro1000/VersaTermMinus repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the VersaTermMinus design in my own project?

Yes, under the terms of its GPL-3.0 license, which jimbro1000 chose for the repository.
