Easyboard PCB layout, top view — open source RP2040/RP2350 board by jivespark

About the Easyboard PCB

Easyboard is an open source RP2040/RP2350 PCB design by jivespark, published on GitHub. It is a 2-layer board measuring 21 × 65 mm, with 31 components from 15 distinct parts.

Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the MCP1700X-330XXTT and W25Q128JVS. By type, the board carries 17 capacitors, 5 resistors, 4 connectors, 3 ICs, 1 crystal and 1 switch.

From the project

BOM: |Name |Purpose |Quantity|Total Cost (USD)|Link |Distributor|Comment | |-----------------|-----------------------|--------|----------------|------------------|-----------|------------------------------------------------------------------------------------------| |PCB with ass

BOM: |Name |Purpose |Quantity|Total Cost (USD)|Link |Distributor|Comment | |-----------------|-----------------------|--------|----------------|------------------|-----------|------------------------------------------------------------------------------------------| |PCB with assembly|The PCBA for the design|1 |45.28 |https://jlcpcb.com|JLCPCB |I couldn't include the proper link, since JLCPCB orders are custom, and don't have a link.|

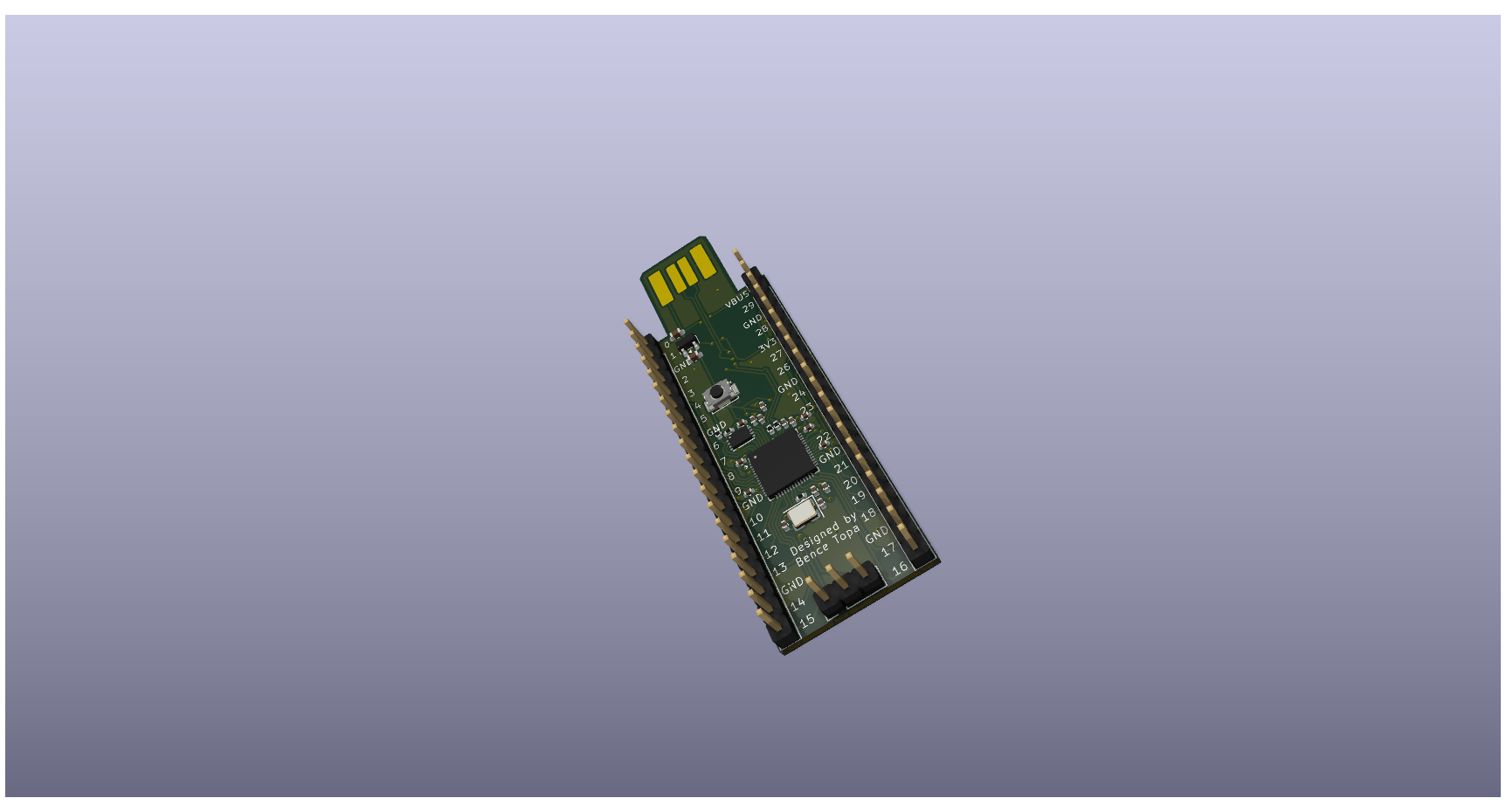

Easyboard, from the project README
From the project README

Main components on the Easyboard

RP2040MCP1700X-330XXTTW25Q128JVS

Easyboard bill of materials (BOM)

31 components, 15 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
RP2040
U1
1
MCP1700X-330XXTT
MCP1700x-330xxTT
U2
1
W25Q128JVS
U3
1
12 MHz
Y1
1
USB_conn
J1
2
CONN_01X20
Conn_01x20
J2, J3
1
CONN_01X03
Conn_01x03
J4
1
SW_Push
SW1
2
1UF
1uF
C1, C10
11
0.1UF
0.1uF
C2, C3, C4, C5, C6, C7, C8, C9 +3
2
10UF
10uF
C13, C14
2
33PF
33pF
C15, C16
2
27
R3, R4
2
1K
R5, R6
1
10K
R7

Easyboard design files

The KiCad project lives in the jivespark/Easyboard repository on GitHub; these links point at the commit this page was built from.

Easyboard: common questions

What microcontroller does the Easyboard use?

The Easyboard is built around the RP2040, from the RP2040/RP2350 family.

How big is the Easyboard PCB?

The Easyboard measures 21 × 65 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Easyboard?

31 components, from 15 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Easyboard design files?

From the jivespark/Easyboard repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Easyboard design in my own project?

The repository has no license, so all rights stay with jivespark. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Easyboard without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
