Happy-Keyboard PCB layout, top view — open source RP2040/RP2350 board by jluisalegria

About the Happy-Keyboard PCB

Happy-Keyboard is an open source RP2040/RP2350 PCB design by jluisalegria, published on GitHub. It is a 2-layer board measuring 238 × 86 mm, with 96 components from 4 distinct parts.

Its main chip is the Pico, from the RP2040/RP2350 family. By type, the board carries 47 switches, 47 diodes, 1 IC and 1 connector.

It belongs with the keyboards and displays & leds designs in this gallery.

From the project

40% ortholinear with RP2040 and KMK

No reset button or unplugging is needed to update the keymap. Just edit code.py with any text editor, save, and you are done. The code lives in a "flash drive" partition on the Pico, so you can edit the keymap on the go without DFU or any other dev tool.

- Simple - the plain keyboard, no lighting. - With Led - adds the RGB underglow, with the lighting controls mapped to the NUM layer.

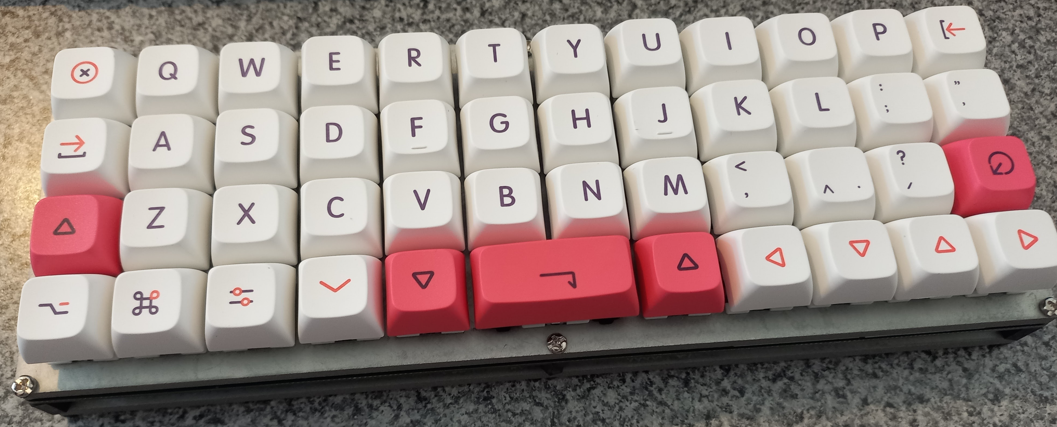

Happy-Keyboard, from the project README
From the project README

Main components on the Happy-Keyboard

Pico

Happy-Keyboard bill of materials (BOM)

96 components, 4 distinct parts.

QtyPartRefs
1
Pico
U1
1
Conn_01x02_Male
J1
47
SW_Push
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +39
47
1N4148W
D1, D2, D3, D4, D5, D6, D7, D8 +39

Happy-Keyboard design files

The KiCad project lives in the jluisalegria/Happy-Keyboard repository on GitHub; these links point at the commit this page was built from.

Happy-Keyboard: common questions

What microcontroller does the Happy-Keyboard use?

The Happy-Keyboard is built around the Pico, from the RP2040/RP2350 family.

How big is the Happy-Keyboard PCB?

The Happy-Keyboard measures 238 × 86 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Happy-Keyboard?

96 components, from 4 distinct parts. The full bill of materials is listed on this page.

Where can I download the Happy-Keyboard design files?

From the jluisalegria/Happy-Keyboard repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Happy-Keyboard design in my own project?

The repository has no license, so all rights stay with jluisalegria. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Happy-Keyboard without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
