PS1-IGR TSSOP Version

jnftech·PS1-IGR-QSBs·Kicad Projects/PS1 IGR In-Console TSSOP Shrink (Old Project)/PS1-IGR TSSOP Version.kicad_pcb

PS1-IGR TSSOP Version PCB layout, top view — open source PIC board by jnftech

About the PS1-IGR TSSOP Version PCB

PS1-IGR TSSOP Version is an open source PIC PCB design by jnftech, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 12.1 × 7.7 mm, with 9 components from 9 distinct parts.

Its main chip is the PIC16F18325-ISL, from the PIC family. By type, the board carries 7 test points, 1 IC and 1 capacitor.

From the project

One-wire QSBs using pyroesp's PS1 Reset Mod code

Note this is the project I originally uploaded here, which is more or less just a shrink of PyroESP's original project. Unless you need an in-console solution, versus a controller PCB install, it is recommended to stick with one of the controller PCB options in this repository.

This is a shrink of the PCB for pyroesp's Playstation 1 Reset Mod code, found at https://github.com/pyroesp/PlayStation-1-Reset-Mod

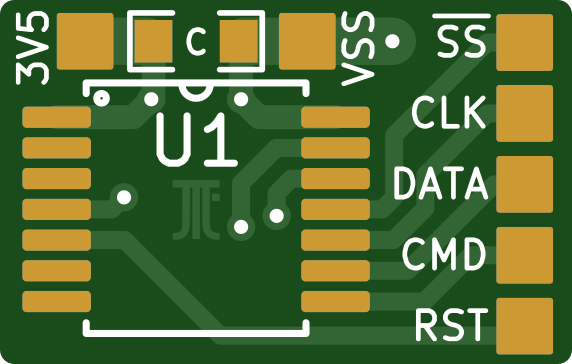

PS1-IGR TSSOP Version, from the project README
From the project README

Main components on the PS1-IGR TSSOP Version

PIC16F18325-ISL

PS1-IGR TSSOP Version bill of materials (BOM)

9 components, 9 distinct parts.

QtyPartRefs
1
PIC16F18325-ISL
U1
1
CLK
TP6
1
DATA
TP7
1
CMD
TP8
1
~SS
TP9
1
RST
TP10
1
VSS
TP11
1
3V5
TP12
1
0.1uF
C1

PS1-IGR TSSOP Version design files

The KiCad project lives in the jnftech/PS1-IGR-QSBs repository on GitHub; these links point at the commit this page was built from.

PS1-IGR TSSOP Version: common questions

What microcontroller does the PS1-IGR TSSOP Version use?

The PS1-IGR TSSOP Version is built around the PIC16F18325-ISL, from the PIC family.

How big is the PS1-IGR TSSOP Version PCB?

The PS1-IGR TSSOP Version measures 12.1 × 7.7 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the PS1-IGR TSSOP Version?

9 components, from 9 distinct parts. The full bill of materials is listed on this page.

Where can I download the PS1-IGR TSSOP Version design files?

From the jnftech/PS1-IGR-QSBs repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the PS1-IGR TSSOP Version design in my own project?

Yes, under the terms of its CC-BY-SA-4.0 license, which jnftech chose for the repository.

Can I test firmware for the PS1-IGR TSSOP Version without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug PIC firmware against it before you order a PCB.
