Moog-Filter

jojo-monk·Yusynth-MiniMoog-Filter·Moog-Filter/Moog-Filter.kicad_pcb

Moog-Filter PCB layout, top view — open source board by jojo-monk

About the Moog-Filter PCB

Moog-Filter is an open source PCB design by jojo-monk, published on GitHub. It is a 2-layer board measuring 40.3 × 128.4 mm, with 75 components from 46 distinct parts.

Other key parts include the TL072 and CA3046. By type, the board carries 34 resistors, 14 capacitors, 9 connectors, 7 transistors and 3 ICs.

It belongs with the audio designs in this gallery.

From the project

Eurorack adaptation

petit défaut esthetique : sérigraphie un peu trop petite et trop proche des boutons.

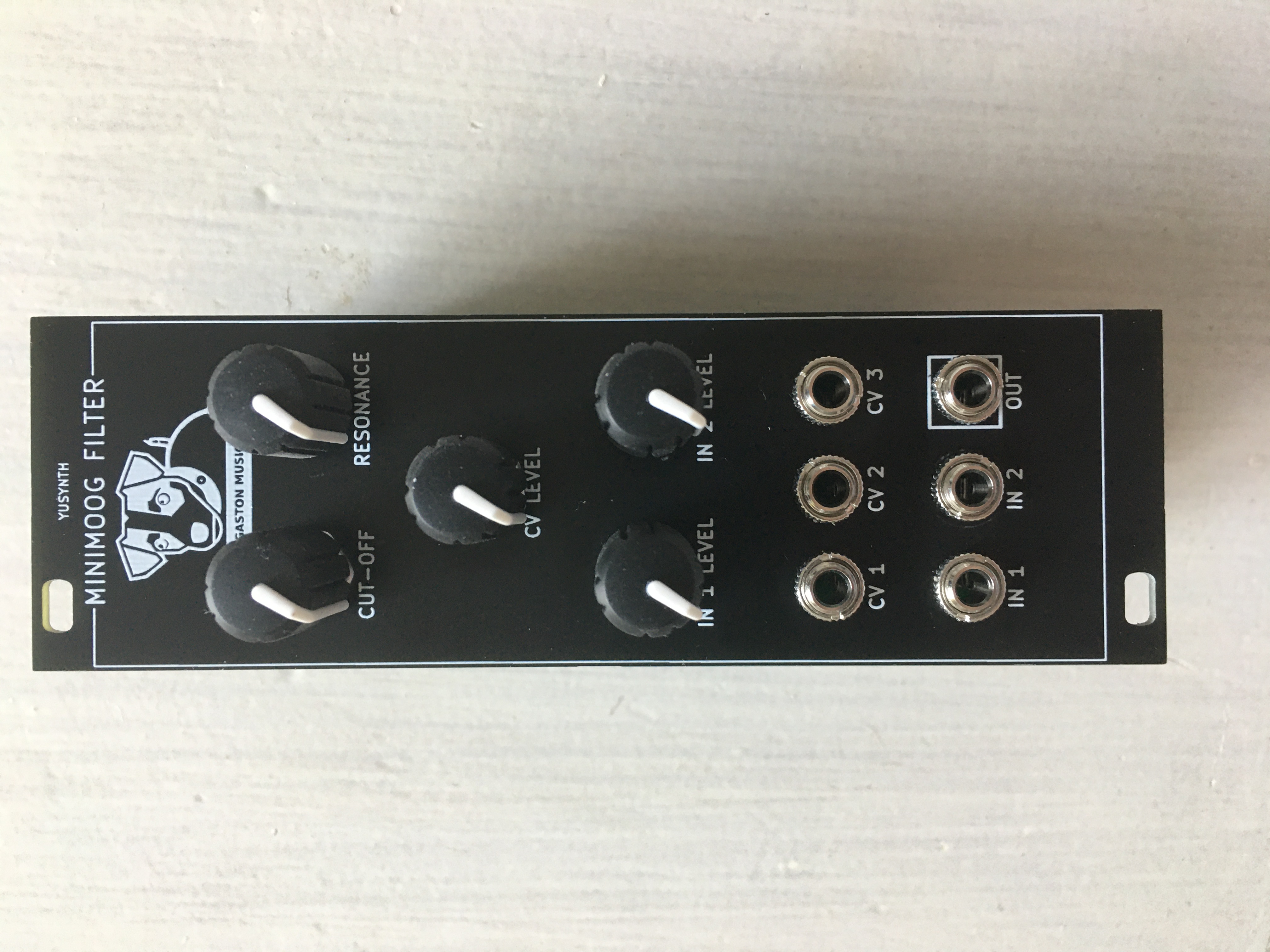

Moog-Filter, from the project README
From the project README

Main components on the Moog-Filter

TL072CA3046

Moog-Filter bill of materials (BOM)

75 components, 46 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
TL072
U1
2
CA3046
U2, U3
1
BC557
Q1
6
BC547
Q2, Q3, Q4, Q5, Q6, Q7
1
CONN_01X07_MALE
Conn_01x07_Male
J1
1
EURO_PWR_2X5
EURO_PWR_2x5
J2
1
IN1
J3
1
IN2
J4
1
CV1
J5
1
CV2
J6
1
CV3
J7
1
Conn_01x07_Female
J8
1
OUT
J9
1
500
RV1
1
10K
RV2
1
1K
RV3
1
Freq 10K Lin
RV4
2
INPUT LEVEL 50K Log
RV5, RV6
1
Ctrl LEVEL 50K Lin
RV7
1
Emphasis 50K antilog
RV8
Show 26 more
QtyPartRefs
1
100PF
100pF
C1
3
10UF
10uF
C2, C10, C11
4
47NF
47nF
C3, C4, C5, C6
1
220UF
220uF
C7
2
220NF
220nF
C8, C9
1
100NF
100nF
C12
2
22UF
22uF
C13, C14
2
56K
R1, R23
1
1.8K
R2
1
10K
R3
2
330
R4, R14
4
150
R5, R6, R7, R12
2
470
R8, R9
1
100K
R10
4
1K
R11, R20, R21, R34
1
220
R13
2
47K
R15, R16
2
220K
R17, R22
1
22
R18
1
180
R19
1
120K
R24
2
10
R25, R26
1
680
R27
1
150K
R28
4
100K
R29, R30, R32, R33
1
120K
R31

Moog-Filter design files

The KiCad project lives in the jojo-monk/Yusynth-MiniMoog-Filter repository on GitHub; these links point at the commit this page was built from.

Moog-Filter: common questions

How big is the Moog-Filter PCB?

The Moog-Filter measures 40.3 × 128.4 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Moog-Filter?

75 components, from 46 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Moog-Filter design files?

From the jojo-monk/Yusynth-MiniMoog-Filter repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Moog-Filter design in my own project?

The repository has no license, so all rights stay with jojo-monk. Use it as a reference, and ask the author before reusing the design.
