JorgHendriks·mobiflight-gtx335-transponder·pcb/GTX335.kicad_pcb

Mobiflight gtx335-transponder PCB layout, top view — open source RP2040/RP2350 board by JorgHendriks

About the Mobiflight gtx335-transponder PCB

Mobiflight gtx335-transponder is an open source RP2040/RP2350 PCB design by JorgHendriks, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 154.8 × 38.6 mm, with 47 components from 8 distinct parts.

Its main chip is the RaspberryPi_Pico, from the RP2040/RP2350 family. By type, the board carries 22 resistors, 20 switches, 2 transistors, 1 module and 1 connector.

It belongs with the displays & leds and power & battery designs in this gallery.

From the project

A DIY Garmin GTX 335-inspired transponder panel for flight simulation, powered by MobiFlight.

The fabrication files for the latest PCB are included in:

Download the GTX335 v1.1 PCB fabrication files

Upload the ZIP archive directly to your PCB manufacturer and select a standard board thickness of 1.6 mm.

Use twenty illuminated tactile switches with the following specifications:

- Body size: 6 x 6 mm - Total height: 7.2 mm - Number of pins: 6 - Integrated LED colour: white - Switch contact: normally open

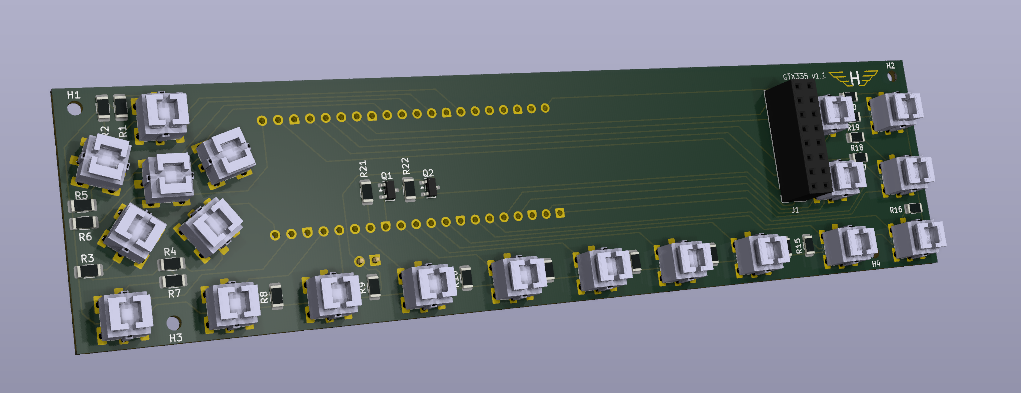

Mobiflight gtx335-transponder, from the project README
From the project README

Main components on the Mobiflight gtx335-transponder

RaspberryPi_Pico

Mobiflight gtx335-transponder bill of materials (BOM)

47 components, 8 distinct parts.

QtyPartRefs
1
RaspberryPi_Pico
A1
1
BC847
Q1
1
AO3401A
Q2
1
Conn_01x16_Pin
J1
1
TestPoint_2Pole
EXT_LED1
20
SW_Push_LED_6p
SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +12
20
220
R1, R2, R3, R4, R5, R6, R7, R8 +12
2
10k
R21, R22

Mobiflight gtx335-transponder design files

The KiCad project lives in the JorgHendriks/mobiflight-gtx335-transponder repository on GitHub; these links point at the commit this page was built from.

Mobiflight gtx335-transponder: common questions

What microcontroller does the Mobiflight gtx335-transponder use?

The Mobiflight gtx335-transponder is built around the RaspberryPi_Pico, from the RP2040/RP2350 family.

How big is the Mobiflight gtx335-transponder PCB?

The Mobiflight gtx335-transponder measures 154.8 × 38.6 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Mobiflight gtx335-transponder?

47 components, from 8 distinct parts. The full bill of materials is listed on this page.

Where can I download the Mobiflight gtx335-transponder design files?

From the JorgHendriks/mobiflight-gtx335-transponder repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Mobiflight gtx335-transponder design in my own project?

It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.

Can I test firmware for the Mobiflight gtx335-transponder without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
