Tinker pod buttons

juansulca·tinker-pod·v2/hardware/tinker-pod-buttons.kicad_pcb

Tinker pod buttons PCB layout, top view — open source RP2040/RP2350 board by juansulca

About the Tinker pod buttons PCB

Tinker pod buttons is an open source RP2040/RP2350 PCB design by juansulca, published on GitHub under the MIT license. It is a 2-layer board measuring 52 × 52 mm, with 6 components from 3 distinct parts.

Its main chip is the XIAO-RP2040, from the RP2040/RP2350 family. By type, the board carries 4 switches and 2 modules.

It belongs with the power & battery and displays & leds designs in this gallery.

From the project

Open-Source hardware platform for makers and creatives

TinkerPod v2 is a more advanced version of the tinkerpod. This version includes 4 buttons and an optional LiIon charger and battery. This version can be powered using a USB-C cable with a powerbank, phone or USB-C charger. The firmware included with this version includes more applications and a application menu.

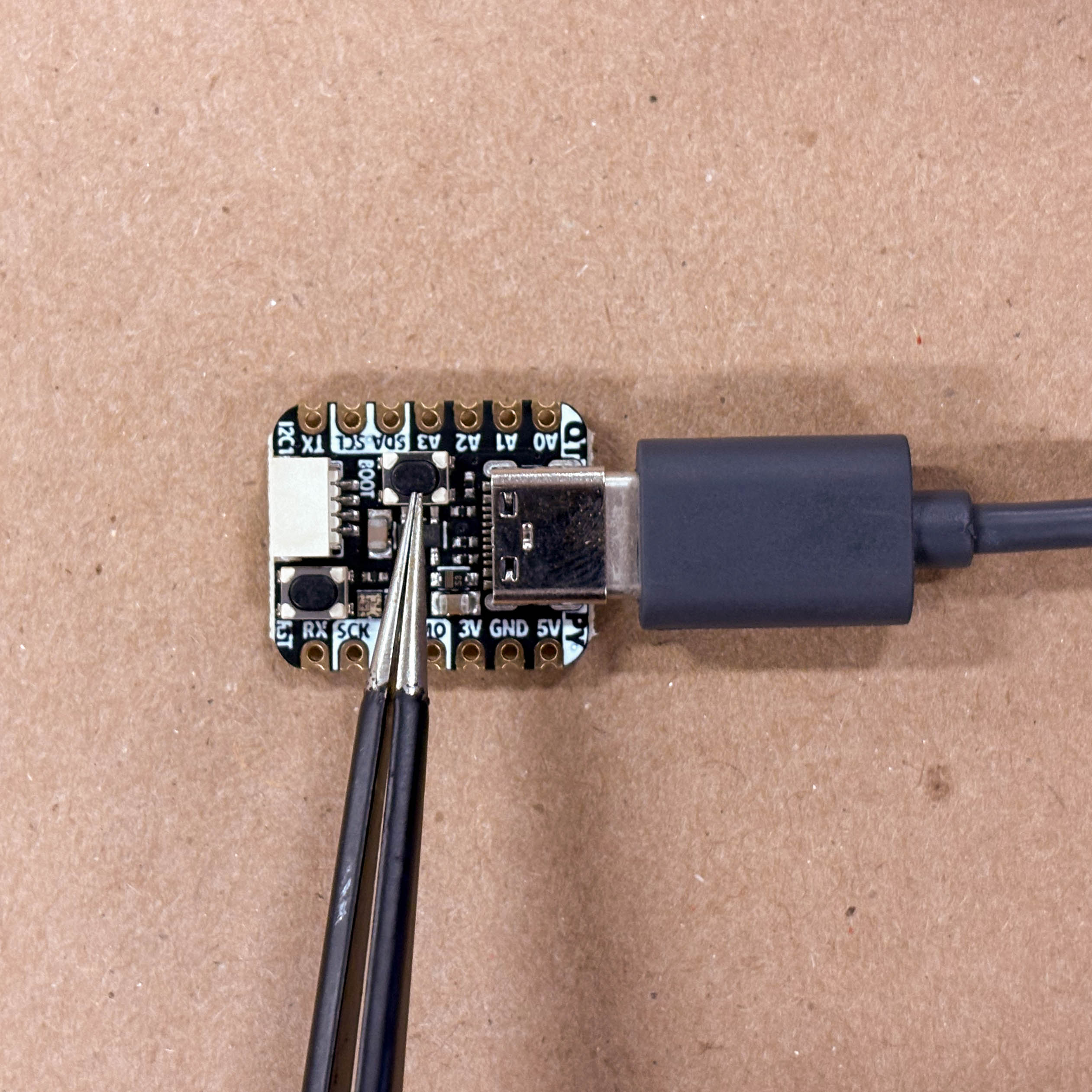

1. Flash circuit python on the QT PY RP2040. 1. Open the official site and download the latest version of CircuitPython. 2. While holding the boot button in the QT PY, plug it into a computer using the USB-C cable. Different version of the QT PY might need a different button to…

Tinker pod buttons, from the project README
From the project README

Tinker pod buttons bill of materials (BOM)

6 components, 3 distinct parts.

QtyPartRefs
1
XIAO-RP2040
M1
1
XIAO-RP2040
M2
4
SW_Push
SW1, SW2, SW3, SW4

Tinker pod buttons design files

The KiCad project lives in the juansulca/tinker-pod repository on GitHub; these links point at the commit this page was built from.

Tinker pod buttons: common questions

What microcontroller does the Tinker pod buttons use?

The Tinker pod buttons is built around the XIAO-RP2040, from the RP2040/RP2350 family.

How big is the Tinker pod buttons PCB?

The Tinker pod buttons measures 52 × 52 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Tinker pod buttons?

6 components, from 3 distinct parts. The full bill of materials is listed on this page.

Where can I download the Tinker pod buttons design files?

From the juansulca/tinker-pod repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Tinker pod buttons design in my own project?

Yes, under the terms of its MIT license, which juansulca chose for the repository.

Can I test firmware for the Tinker pod buttons without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
