Tinker pod v3

juansulca·tinker-pod·v3/hardware/tinker-pod-v3.kicad_pcb

Tinker pod v3 PCB layout, top view — open source RP2040/RP2350 board by juansulca

About the Tinker pod v3 PCB

Tinker pod v3 is an open source RP2040/RP2350 PCB design by juansulca, published on GitHub under the MIT license. It is a 2-layer board measuring 51.8 × 52.8 mm, with 23 components from 12 distinct parts.

Its main chip is the Seeed Studio XIAO SAMD21, from the RP2040/RP2350 family. Other key parts include the MCP73831-2-OT. By type, the board carries 6 switches, 6 capacitors, 6 resistors, 2 ICs, 2 diodes and 1 connector.

From the project

Open-Source hardware platform for makers and creatives

The latest evolution of TinkerPod delivers enhanced functionality and streamlined design through single-PCB integration. This version builds upon its predecessors, offering improved features and more robust implementation while maintaining the platform's core functionality.

The CAD and productions files for v3 con be found in the hardware directory. Which is devided in:

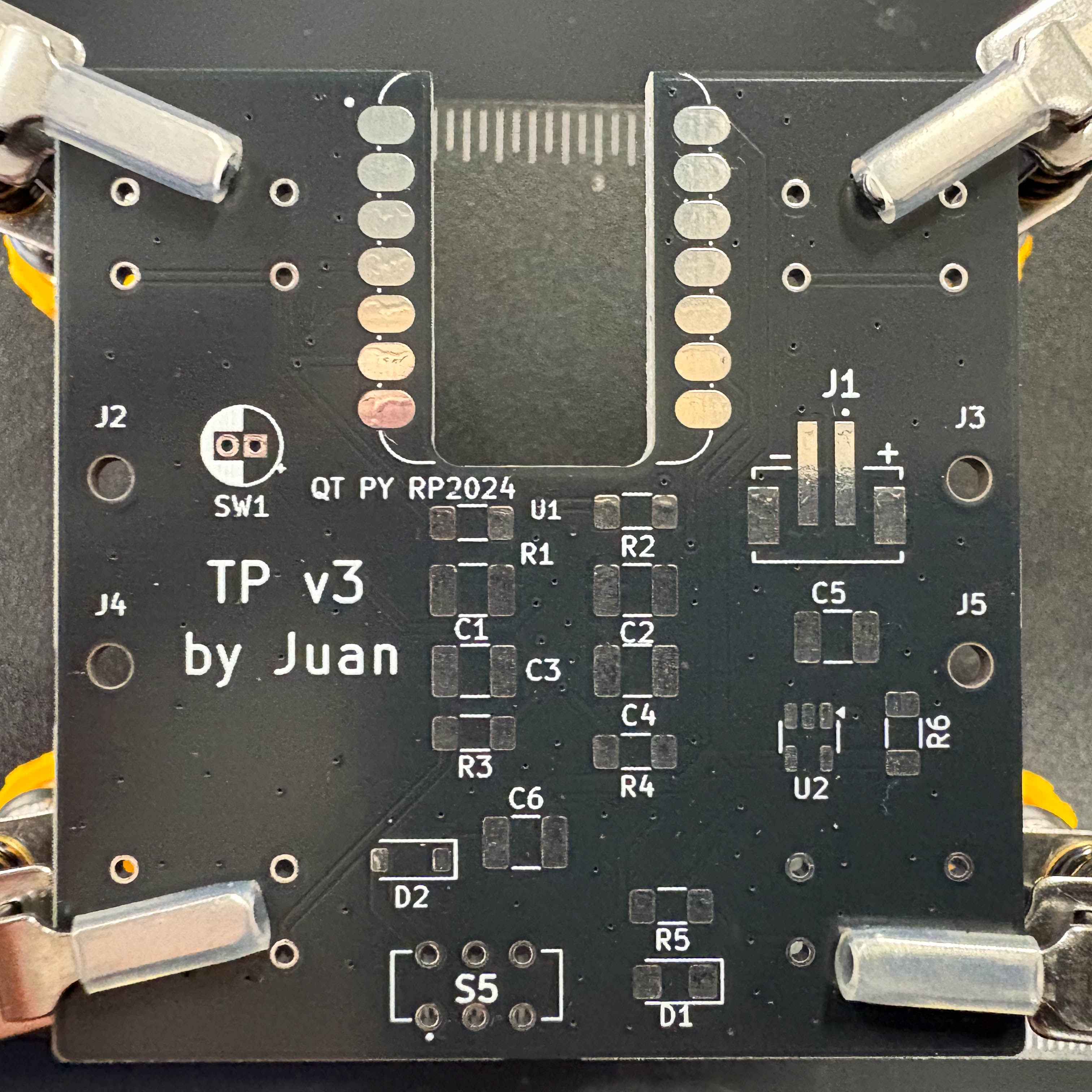

Tinker pod v3, from the project README
From the project README

Main components on the Tinker pod v3

Seeed Studio XIAO SAMD21MCP73831-2-OT

Tinker pod v3 bill of materials (BOM)

23 components, 12 distinct parts.

QtyPartRefs
1
Seeed Studio XIAO SAMD21
U1
1
MCP73831-2-OT
U2
1
B2B-PH-SM4-TB(LF)(SN)
Conn_01x02_MountingPin
J1
4
3101
S1, S2, S3, S4
1
JS202011AQN
S5
1
SW_SPST
SW1
1
LED
D1
1
MBR120
D2
4
.1u
C1, C2, C3, C4
2
10u
C5, C6
4
1K
R1, R2, R3, R4
2
5.1K
R5, R6

Tinker pod v3 design files

The KiCad project lives in the juansulca/tinker-pod repository on GitHub; these links point at the commit this page was built from.

Tinker pod v3: common questions

What microcontroller does the Tinker pod v3 use?

The Tinker pod v3 is built around the Seeed Studio XIAO SAMD21, from the RP2040/RP2350 family.

How big is the Tinker pod v3 PCB?

The Tinker pod v3 measures 51.8 × 52.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Tinker pod v3?

23 components, from 12 distinct parts. The full bill of materials is listed on this page.

Where can I download the Tinker pod v3 design files?

From the juansulca/tinker-pod repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Tinker pod v3 design in my own project?

Yes, under the terms of its MIT license, which juansulca chose for the repository.

Can I test firmware for the Tinker pod v3 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
