StompFork
About the StompFork PCB
StompFork is an open source PCB design by jurihock, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 99.1 × 50.8 mm, with 34 components from 21 distinct parts.
Other key parts include the TL074. By type, the board carries 13 resistors, 11 capacitors, 5 connectors, 2 diodes and 1 IC.
It belongs with the audio designs in this gallery.
From the project

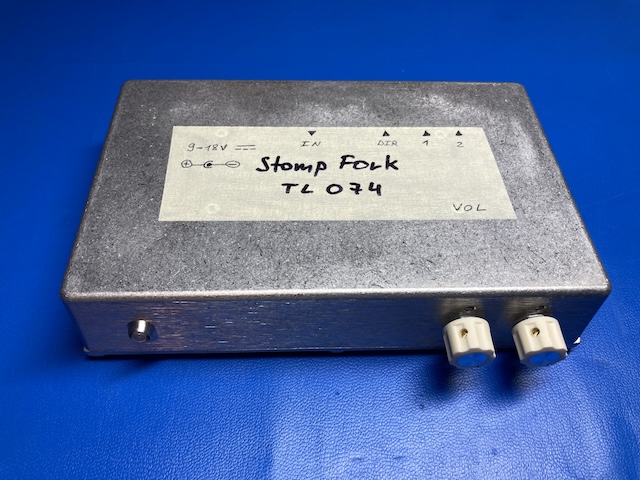

Active audio signal splitter to drive multiple parallel stompboxes
This project is about an active audio signal splitter that utilizes the TL074 opamp to drive multiple parallel stompboxes.
- Split one line-level input into three outputs - Direct output (unity from input buffer) - Stompbox output 1 (level pot + output buffer) - Stompbox output 2 (level pot + output buffer)
- Recommended 18 V - Should work at 12 V - May work at 9 V - Series schottky protection included
Main components on the StompFork
StompFork bill of materials (BOM)
34 components, 21 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TL074 | DIP-14_W7.62mm_Socket | U1 |
| 1 | Line-Level Input | JST_EH_B2B-EH-A_1x02_P2.50mm_Vertical | J1 |
| 1 | Direct Output | JST_EH_B2B-EH-A_1x02_P2.50mm_Vertical | J2 |
| 1 | Stompbox Output 1 | JST_EH_B2B-EH-A_1x02_P2.50mm_Vertical | J3 |
| 1 | Stompbox Output 2 | JST_EH_B2B-EH-A_1x02_P2.50mm_Vertical | J4 |
| 1 | Power | JST_EH_B2B-EH-A_1x02_P2.50mm_Vertical | J5 |
| 2 | 10k | JST_EH_B3B-EH-A_1x03_P2.50mm_Vertical | RV1, RV2 |
| 1 | 1N5819 | D_DO-41_SOD81_P10.16mm_Horizontal | D1 |
| 1 | LED | JST_EH_B2B-EH-A_1x02_P2.50mm_Vertical | D2 |
| 1 | 1uF | CP_Axial_L18.0mm_D8.0mm_P25.00mm_Horizontal | C1 |
| 3 | 47pF | C_Disc_D5.0mm_W2.5mm_P5.00mm | C2, C3, C4 |
| 3 | 22uF | CP_Radial_D10.0mm_P5.00mm | C5, C6, C7 |
| 2 | 100nF | C_Disc_D5.0mm_W2.5mm_P5.00mm | C8, C10 |
| 1 | 100uF | CP_Radial_D6.3mm_P2.50mm | C9 |
| 1 | 47uF | CP_Radial_D6.3mm_P2.50mm | C11 |
| 1 | 1M | R_Axial_DIN0207_L6.3mm_D2.5mm_P2.54mm_Vertical | R1 |
| 3 | 1k | R_Axial_DIN0207_L6.3mm_D2.5mm_P2.54mm_Vertical | R2, R3, R4 |
| 3 | 100 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R5, R6, R7 |
| 3 | 100k | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R8, R9, R10 |
| 2 | 10k | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R11, R12 |
Show 1 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 3k3 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R13 |
StompFork design files
The KiCad project lives in the jurihock/StompFork repository on GitHub; these links point at the commit this page was built from.
StompFork: common questions
How big is the StompFork PCB?
The StompFork measures 99.1 × 50.8 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the StompFork?
34 components, from 21 distinct parts. The full bill of materials is listed on this page.
Where can I download the StompFork design files?
From the jurihock/StompFork repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the StompFork design in my own project?
Yes, under the terms of its GPL-3.0 license, which jurihock chose for the repository.
