ESP32C3 Watch

k-ying·ESP32C3_Watch·Hardware/ESP32C3Watch_VER2/ESP32C3Watch_VER2.kicad_pcb

ESP32C3 Watch PCB layout, top view — open source board by k-ying

About the ESP32C3 Watch PCB

ESP32C3 Watch is an open source PCB design by k-ying, published on GitHub. It is a 2-layer board measuring 42 × 42 mm, with 53 components from 27 distinct parts.

Other key parts include the TP4056, XC6206-1.8, TC1262-33, MAX30102 and CH340C. By type, the board carries 19 resistors, 14 capacitors, 7 ICs, 7 connectors, 4 diodes and 1 switch.

It belongs with the wearables, iot & wireless and sensors designs in this gallery.

From the project

The smartwatch made based on ESP32-C3(RISC-V MCU), which has heart rate, oximetry, temperature, fall detection and IOT Function. 基于 ESP32-C3的智能手表（RISC-V MCU），具有心率、血氧饱和度、温度、跌倒检测和物联网功能。

The project stems from My Graduation Project in 2022, Since the time for secrecy has ended, I can open source its design and code.The project may be very old, some components and functions can not be used directly, need to be adjusted according to the latest library, please be aware of.

Here are the folder descriptions: 1. HardWare: used to store hardware related, circuit design and PCB design, using KiCAD for the design of the project; also contains 3D models and peripherals DataSheet. 2. Software: used to store the programme code of CMU master control, this project uses ESP-IDF (LVGL…

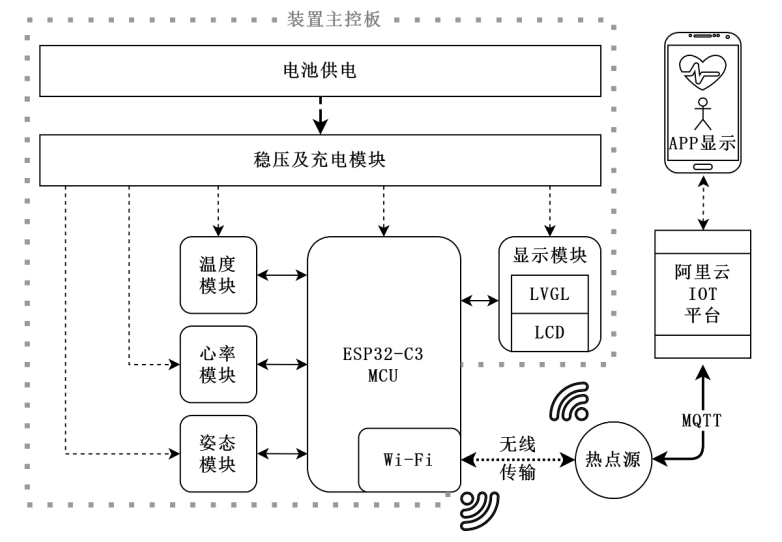

ESP32C3 Watch, from the project README
From the project README

Main components on the ESP32C3 Watch

TP4056XC6206-1.8TC1262-33MAX30102CH340CMPU-6050MAX30205MTA+T

ESP32C3 Watch bill of materials (BOM)

53 components, 27 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
TP4056
U1
1
XC6206-1.8
U2
1
TC1262-33
U3
1
MAX30102
U4
1
CH340C
U5
1
MPU-6050
U6
1
MAX30205MTA+T
U7
1
CONN_01X02
Conn_01x02
J1
1
USB_B_Micro
J2
1
MAX30102_MODULE
MAX30102_Module
J3
2
CONN_01X01
Conn_01x01
J4, J5
1
LCD_8PIN
LCD_8Pin
J6
1
LCD_CTP
J7
1
SW_SPDT
SW1
1
TVS_SMAJ5
D1
1
CHG
D2
1
STD
D3
1
PWR
D4
1
ESP-C3-13-4M
L1
7
0.1UF
0.1uf
C1, C3, C8, C9, C11, C13, C14
Show 7 more
QtyPartRefs
4
10UF
10uf
C2, C4, C10, C12
3
1UF
1uf
C5, C6, C7
2
1k
R1, R2
3
4.7K
R3, R15, R16
7
x
R4, R5, R13, R14, R17, R18, R19
4
10K
R6, R8, R9, R10
3
0
R7, R22, R23

ESP32C3 Watch design files

The KiCad project lives in the k-ying/ESP32C3_Watch repository on GitHub; these links point at the commit this page was built from.

ESP32C3 Watch: common questions

How big is the ESP32C3 Watch PCB?

The ESP32C3 Watch measures 42 × 42 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the ESP32C3 Watch?

53 components, from 27 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the ESP32C3 Watch design files?

From the k-ying/ESP32C3_Watch repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the ESP32C3 Watch design in my own project?

The repository has no license, so all rights stay with k-ying. Use it as a reference, and ask the author before reusing the design.
