About the Cad pad kaito PCB
Cad pad kaito is an open source RP2040/RP2350 PCB design by kaitohusky, published on GitHub. It is a 2-layer board measuring 85.2 × 85.2 mm, with 48 components from 6 distinct parts.
Its main chip is the XIAO-RP2040-DIP, from the RP2040/RP2350 family. By type, the board carries 30 diodes, 15 switches, 1 IC, 1 capacitor and 1 resistor.
It belongs with the keyboards and displays & leds designs in this gallery.
From the project
keyboard with cad shortcuts

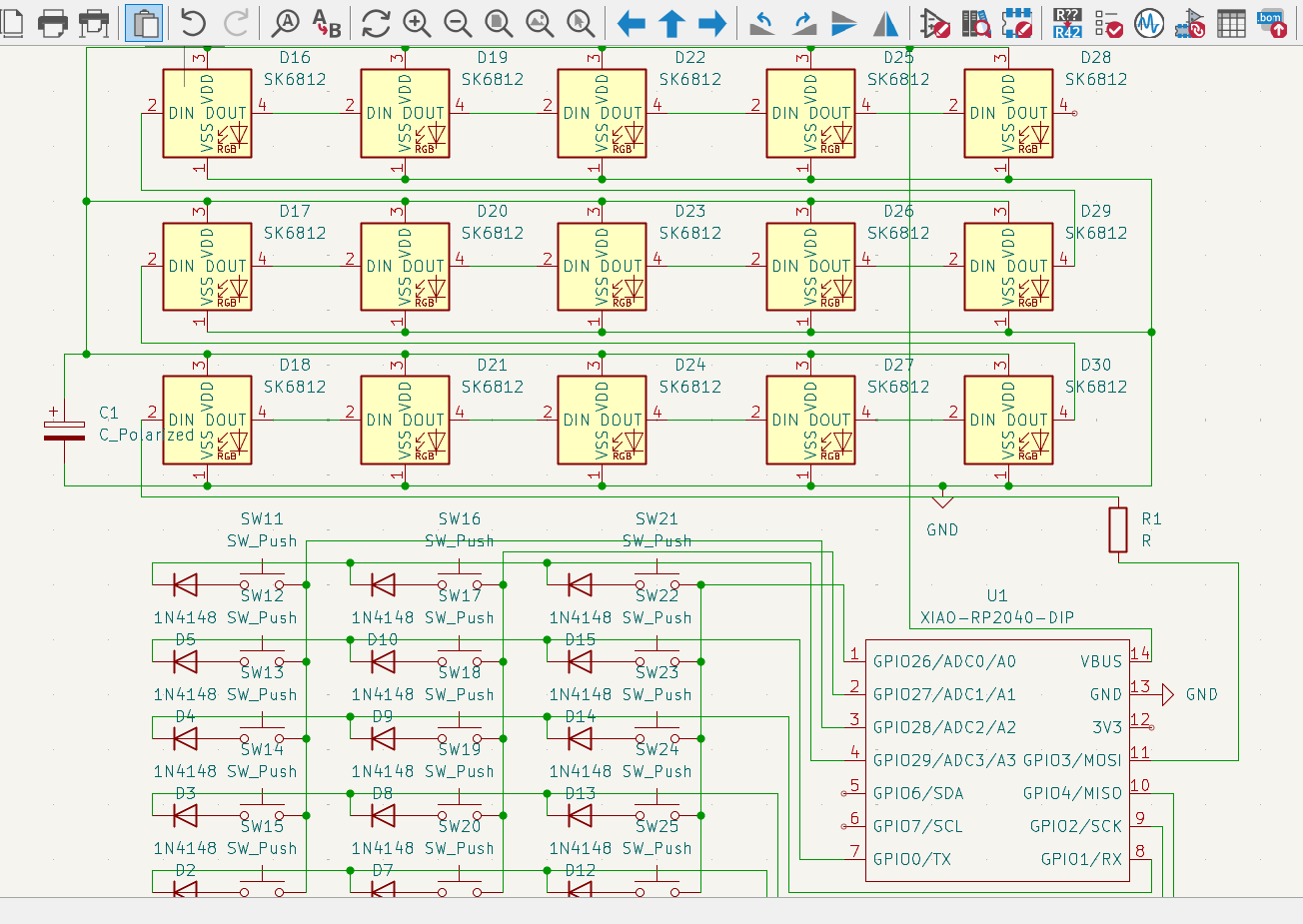

A compact 15-key USB shortcut keyboard designed to trigger shortcuts in CAD software. Built around a Seeed XIAO RP2040 (DIP version) using a 3×5 diode-protected key matrix (anti-ghosting).
This repo contains the full hardware + firmware stack: schematic, PCB layout, assembly references, and firmware that sends USB key events to the computer.
- PCB/: KiCad project files (schematic + PCB layout) - Firmware/: firmware source code - docs/: screenshots used in this README

Main components on the Cad pad kaito
Cad pad kaito bill of materials (BOM)
48 components, 6 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | XIAO-RP2040-DIP | XIAO-RP2040-DIP | U1 |
| 15 | SW_Push | SW_Cherry_MX_1.00u_PCB | SW11, SW12, SW13, SW14, SW15, SW16, SW17, SW18 +7 |
| 15 | 1N4148 | D_DO-35_SOD27_P7.62mm_Horizontal | D1, D2, D3, D4, D5, D6, D7, D8 +7 |
| 15 | SK6812 | LED_SK6812_PLCC4_5.0x5.0mm_P3.2mm | D16, D17, D18, D19, D20, D21, D22, D23 +7 |
| 1 | C_Polarized | CP_Radial_D6.3mm_P2.50mm | C1 |
| 1 | R | R_Axial_DIN0204_L3.6mm_D1.6mm_P7.62mm_Horizontal | R1 |
Cad pad kaito design files
The KiCad project lives in the kaitohusky/cad_pad_kaito repository on GitHub; these links point at the commit this page was built from.
- Layoutkaito_CADpad/PCB/dev.kicad_pcb
- Schematickaito_CADpad/PCB/dev.kicad_sch
Cad pad kaito: common questions
What microcontroller does the Cad pad kaito use?
The Cad pad kaito is built around the XIAO-RP2040-DIP, from the RP2040/RP2350 family.
How big is the Cad pad kaito PCB?
The Cad pad kaito measures 85.2 × 85.2 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Cad pad kaito?
48 components, from 6 distinct parts. The full bill of materials is listed on this page.
Where can I download the Cad pad kaito design files?
From the kaitohusky/cad_pad_kaito repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Cad pad kaito design in my own project?
The repository has no license, so all rights stay with kaitohusky. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the Cad pad kaito without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
