KBoardV1 PCB layout, top view — open source RP2040/RP2350 board by KaushikDuddala

About the KBoardV1 PCB

KBoardV1 is an open source RP2040/RP2350 PCB design by KaushikDuddala, published on GitHub. It is a 2-layer board measuring 21 × 51 mm, with 33 components from 16 distinct parts.

Its main chip is the C2040, from the RP2040/RP2350 family. Other key parts include the C39051 and C2843335. By type, the board carries 17 capacitors, 7 resistors, 4 connectors, 3 ICs, 1 crystal and 1 switch.

From the project

The KBoard is a simple RP2040 devboard designed from the guide!! I made some changes visually like the orientation of the chip bc lowk 45 degrees looks cooler. routing was a nightmate tho!!

The KBoard is a simple RP2040 devboard designed from the guide!! I made some changes visually like the orientation of the chip bc lowk 45 degrees looks cooler. routing was a nightmate tho!!

- RP2040 microcontroller - USB-C connector for programming/power - Standard pin headers

- Convert to a BadUSB design - Wi-Fi/BT support - Battery Support?

A combined BOM including JLCPCB part numbers:

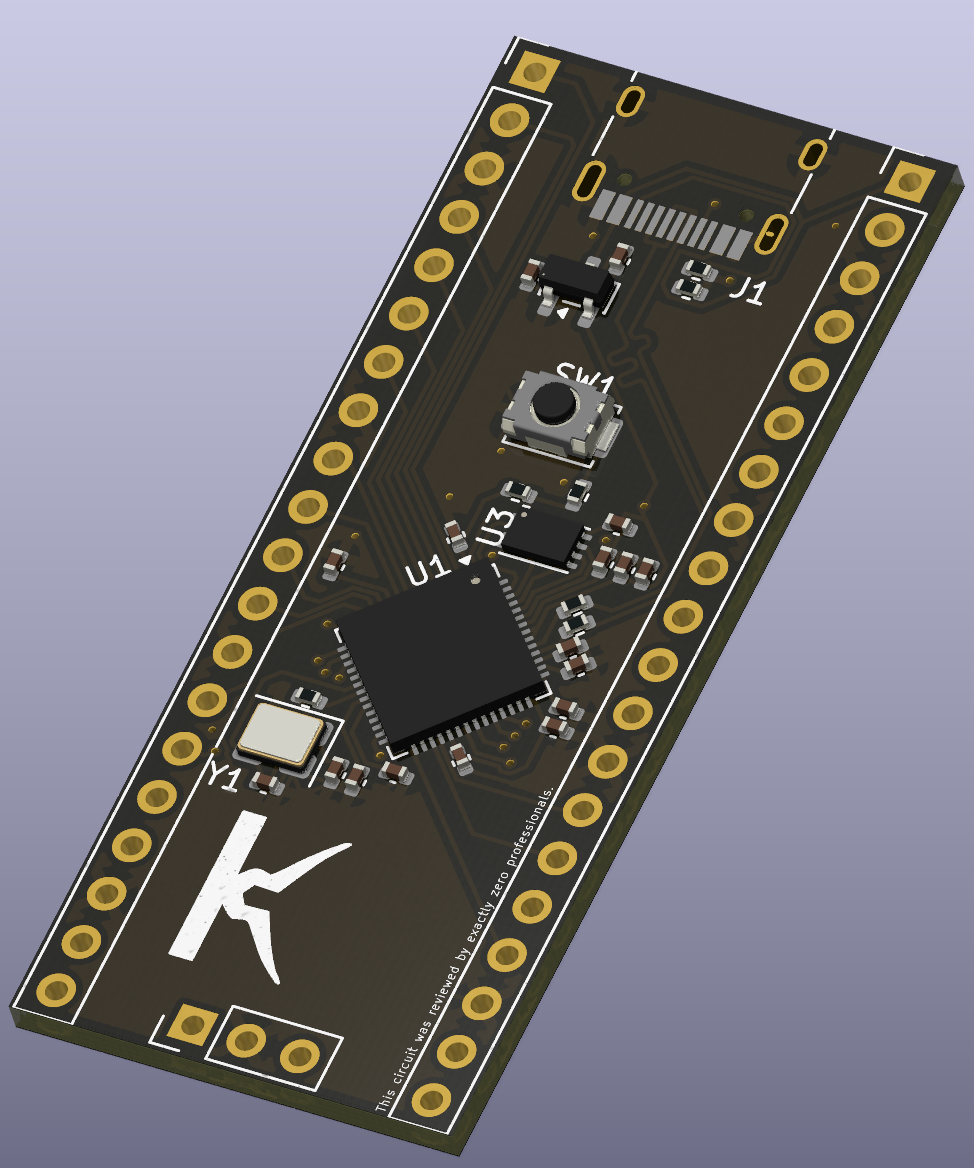

KBoardV1, from the project README
From the project README

Main components on the KBoardV1

C2040C39051C2843335

KBoardV1 bill of materials (BOM)

33 components, 16 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
C2040
RP2040
U1
1
C39051
MCP1700x-330xxTT
U2
1
C2843335
W25Q128JVS
U3
1
C9002
12 MHz
Y1
1
C165948
USB_C_Receptacle_USB2.0_14P
J1
2
CONN_01X20
Conn_01x20
J2, J3
1
CONN_01X03
Conn_01x03
J4
1
C720477
SW_Push
SW1
2
C52923
1uF
C1, C10
11
C1525
0.1uF
C2, C3, C4, C5, C6, C7, C8, C9 +3
2
C19702
10uF
C13, C14
2
C1562
33pF
C15, C16
2
C25905
5.1k
R1, R2
2
C25100
27
R3, R4
2
C11702
1K
R5, R7
1
C25744
10K
R6

KBoardV1 design files

The KiCad project lives in the KaushikDuddala/KBoardV1 repository on GitHub; these links point at the commit this page was built from.

KBoardV1: common questions

What microcontroller does the KBoardV1 use?

The KBoardV1 is built around the C2040, from the RP2040/RP2350 family.

How big is the KBoardV1 PCB?

The KBoardV1 measures 21 × 51 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the KBoardV1?

33 components, from 16 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the KBoardV1 design files?

From the KaushikDuddala/KBoardV1 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the KBoardV1 design in my own project?

The repository has no license, so all rights stay with KaushikDuddala. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the KBoardV1 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
