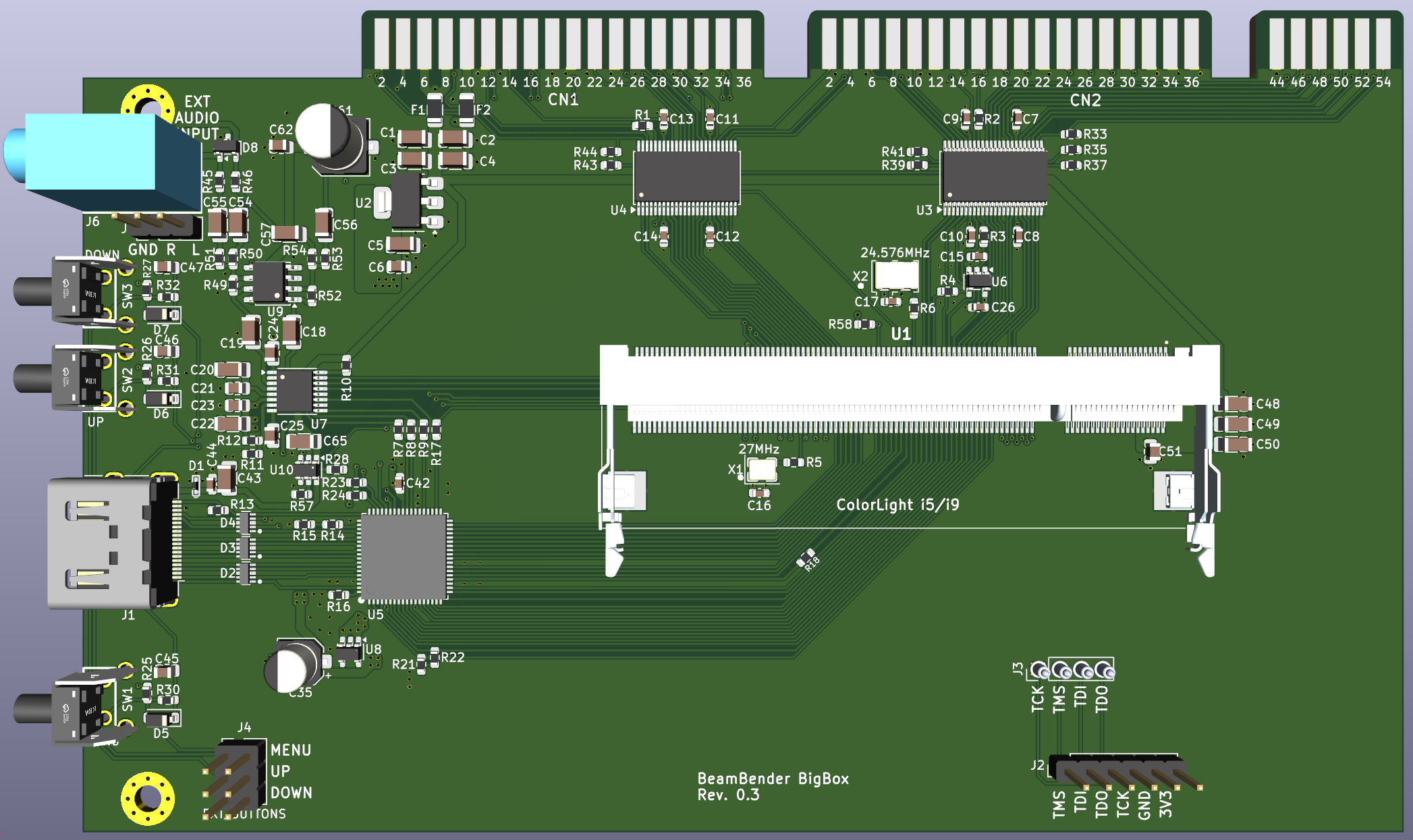

BeamBender-BigBox
About the BeamBender-BigBox PCB
BeamBender-BigBox is an open source PCB design by kavanoz64, published on GitHub. It is a 4-layer board measuring 157.5 × 98 mm, with 158 components from 51 distinct parts.
Other key parts include the 1473149-4, TLV76133DCYR, 74LVC16244ADGG,118, SII9022ACNU and SN74LVC1G86DBVR. By type, the board carries 65 capacitors, 59 resistors, 10 ICs, 8 diodes, 5 connectors and 4 inductors.
It belongs with the retro computing designs in this gallery.
From the project
An AGA digital scandoubler and HDMI output card for the Amiga 4000, with Amiga 2000 / 3000 support.
A digital scandoubler and HDMI output card for the Amiga 4000, with the Amiga 2000 and 3000 supported as well.
The card plugs into the video slot, taps the digital RGB signals before they ever reach a DAC, and outputs clean HDMI with audio. No analog stage, no capture artifacts, no flicker.
Status: revision 0.3 hardware built and working on the Amiga 4000D, 4000T, 3000 and 2000 (ECS and OCS). Every Amiga monitor mode captured, including the A2024; interlaced modes deinterlaced motion-adaptively on both modules; integer and blended half-step scaling on both axes; fourteen output formats from…
Main components on the BeamBender-BigBox
BeamBender-BigBox bill of materials (BOM)
158 components, 51 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 1473149-4 Colorlight-i5-v7.0 | 1473149-4 | U1 |
| 1 | TLV76133DCYR | SOT-223-3_TabPin2 | U2 |
| 2 | 74LVC16244ADGG,118 74LVC16244ADGG | TSSOP-48_6.1x12.5mm_P0.5mm | U3, U4 |
| 1 | SII9022ACNU | QFN-72-1EP_10x10mm_P0.5mm_EP6x6mm_ThermalVias_HandSolder | U5 |
| 1 | SN74LVC1G86DBVR 74LVC1G86 | SOT-23-5 | U6 |
| 1 | AK5720VT | TSSOP-16_4.4x5mm_P0.65mm | U7 |
| 1 | AP2112K-1.2TRG1 AP2112K-1.2 | SOT-23-5 | U8 |
| 1 | OPA1692IDR OPA1692 | SOIC-8_3.9x4.9mm_P1.27mm | U9 |
| 1 | TPS2553DBVR | SOT-23-6 | U10 |
| 1 | XOS32027000LT00351005 Oscillator_3.2x2.5mm-27MHz | Crystal_SMD_3225-4Pin_3.2x2.5mm | X1 |
| 1 | SX5M24.576M20F30TNN Oscillator_5.0x3.2mm_24.576MHz | Oscillator_SMD_EuroQuartz_XO53-4Pin_5.0x3.2mm | X2 |
| 1 | HDMI-001 19PCBTP HDMI | HDMI_A_Molex_208658-1001_Horizontal | J1 |
| 1 | HB-PH3-25416PB2GOP JTAG | PinHeader_1x06_P2.54mm_Vertical | J2 |
| 1 | 2541WV-2x03P EXT_BUTTONS | PinHeader_2x03_P2.54mm_Vertical | J4 |
| 1 | 2541WV-03P XAUDIO | PinHeader_1x03_P2.54mm_Vertical | J5 |
| 1 | SJ1-3535NG | AUDIO-TH_SJ1-3535NG | J6 |
| 1 | 1206L250/16AR 2.5A | Fuse_1206_3216Metric | F1 |
| 1 | JK-nSMD010/60V 0.1A | Fuse_1206_3216Metric | F2 |
| 1 | TS-1038-A10B3-D2 MENU | KEY-TH_TS-1038-A10B3-D2 | SW1 |
| 1 | TS-1038-A10B3-D2 UP | KEY-TH_TS-1038-A10B3-D2 | SW2 |
Show 31 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | TS-1038-A10B3-D2 DOWN | KEY-TH_TS-1038-A10B3-D2 | SW3 |
| 1 | SP1003-01DTG | SOD-723_L1.0-W0.6-LS1.4-RD | D1 |
| 3 | D5V0F4U10LP-7 | Diodes_UDFN-10_1.0x2.5mm_P0.5mm_HandSolder | D2, D3, D4 |
| 3 | 1N4148W | D_SOD-123 | D5, D6, D7 |
| 1 | TPD2E009DBZR TPD2E009 | SOT-23 | D8 |
| 4 | GZ2012D601TF 600R@100MHz 0.5A | L_0805_2012Metric | FB1, FB2, FB3, FB4 |
| 7 | CL31A226KOHNNNE 22uF 1206 | C_1206_3216Metric | C1, C2, C3, C48, C49, C50, C58 |
| 16 | CL31B106KPHNNNE 10uF 1206 | C_1206_3216Metric | C4, C5, C18, C19, C20, C22, C28, C36 +8 |
| 17 | CL21B104KCFNNNE 100nF 0805 | C_0805_2012Metric | C6, C21, C23, C30, C31, C32, C37, C38 +9 |
| 15 | CC0603KRX7R9BB104 100nF | C_0603_1608Metric | C7, C8, C9, C10, C11, C12, C13, C14 +7 |
| 1 | CL10C220JB8NNNC 22pF | C_0603_1608Metric | C15 |
| 1 | CL21B474KBFNNNE 470nF 0805 | C_0805_2012Metric | C24 |
| 1 | CL21B105KBFNNNE 1uF 0805 | C_0805_2012Metric | C25 |
| 1 | CL10A105KB8NNNC 1uF | C_0603_1608Metric | C27 |
| 2 | CL31B104KBCNNNC 100nF 1206 | C_1206_3216Metric | C29, C40 |
| 1 | UWT1C220MCL1GB 22uF 16V | CP_Elec_5x5.8 | C35 |
| 2 | CL10C331JB8NNNC 330pF C0G | C_0603_1608Metric | C52, C53 |
| 1 | EEEFTE221XAP 220uF 25V | CP_Elec_6.3x7.7 | C61 |
| 10 | 0603WAF330JT5E 33 | R_0603_1608Metric | R1, R2, R4, R5, R6, R7, R8, R9 +2 |
| 3 | 0603WAF1001T5E 1K | R_0603_1608Metric | R3, R15, R59 |
| 2 | 0603WAF0000T5E 0 | R_0603_1608Metric | R10, R60 |
| 9 | 0603WAF1002T5E 10K | R_0603_1608Metric | R11, R13, R29, R30, R31, R32, R50, R53 +1 |
| 1 | 0603WAF3301T5E 3K3 | R_0603_1608Metric | R14 |
| 8 | 0603WAF4701T5E 4K7 | R_0603_1608Metric | R16, R21, R22, R23, R24, R25, R26, R27 |
| 2 | 0603WAF2001T5E 2K | R_0603_1608Metric | R19, R20 |
| 15 | 0603WAF1003T5E 100K | R_0603_1608Metric | R28, R33, R34, R35, R36, R37, R38, R39 +7 |
| 2 | 0603WAF1000T5E 100 | R_0603_1608Metric | R45, R46 |
| 2 | 0603WAF8201T5E 8K2 | R_0603_1608Metric | R49, R52 |
| 2 | 0603WAF2002T5E 20K | R_0603_1608Metric | R51, R54 |
| 2 | 0603WAF4702T5E 47K | R_0603_1608Metric | R55, R56 |
| 1 | 0603WAF5602T5E 56K | R_0603_1608Metric | R57 |
BeamBender-BigBox design files
The KiCad project lives in the kavanoz64/BeamBender-BigBox repository on GitHub; these links point at the commit this page was built from.
BeamBender-BigBox: common questions
How big is the BeamBender-BigBox PCB?
The BeamBender-BigBox measures 157.5 × 98 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the BeamBender-BigBox?
158 components, from 51 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the BeamBender-BigBox design files?
From the kavanoz64/BeamBender-BigBox repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the BeamBender-BigBox design in my own project?
The repository has no license, so all rights stay with kavanoz64. Use it as a reference, and ask the author before reusing the design.
