PMOD2USB-FT4222
About the PMOD2USB-FT4222 PCB
PMOD2USB-FT4222 is an open source PCB design by kelu124, published on GitHub. It is a 2-layer board measuring 38.8 × 22.3 mm, with 25 components from 23 distinct parts.
Other key parts include the FT4222HQ-D-R. By type, the board carries 10 capacitors, 10 resistors, 3 connectors, 1 IC and 1 crystal.

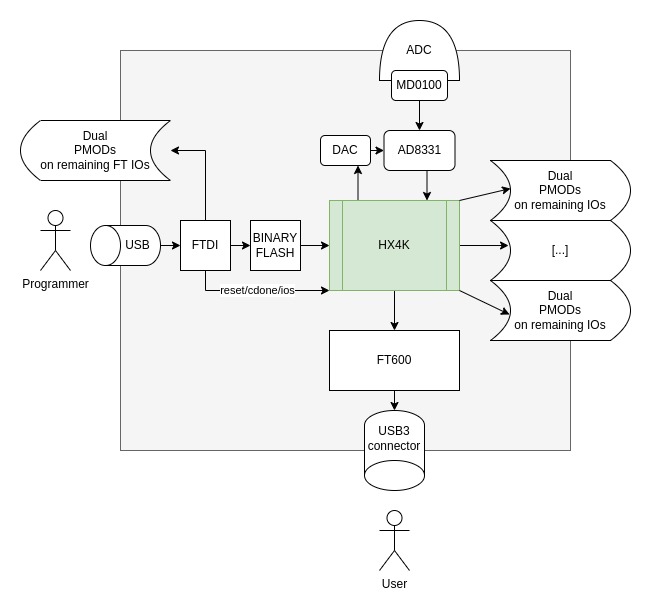

From the project
OpenSourceHardware - going to MRI
1 dual PMOD, 12ADCbits+1clk + 1SPI (without MISO): based on the AD8331+ADC+DAC from https://github.com/kelu124/lit3rick/ (altium source in hardware folder) . Connector in: SMA, with MD0100 to protect. Possible elements: AD8331 ADC: AD9629BCPZ-65: 12bits, DAC: MCP4812-E/MS
Only logic through PMOD: positivepulse, negativepulse, damp. Expose remaining IOs on a 2.54" rail on the PMOD board (with 3.3V and GND as well) External GPIOs for +HV, -HV, GND. Internal : Positive: 3.3V -> 5V booster ; Negative: -5V rail for example (not mandatory if simpler exists)…
Main components on the PMOD2USB-FT4222
PMOD2USB-FT4222 bill of materials (BOM)
25 components, 23 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | FT4222HQ-D-R | QFN50P500X500X90-33N | IC1 |
| 1 | ABM8-272-T3 12 Mhz | ABM8272T3 | Y1 |
| 1 | AMPHENOL_132357-11 Conn_02x06_Odd_Even | PinHeader_2x06_P2.54mm_Horizontal | J1 |
| 1 | Conn_01x02 | PinHeader_2x01_P2.54mm_Horizontal | J2 |
| 1 | 22-23-2021 USB_B_Micro | USB_Micro-B_Amphenol_10118193-0001LF_Horizontal | J3 |
| 1 | 100NF 100nF | C_1206_3216Metric | C1 |
| 1 | 100NF 4.7uF | C_1206_3216Metric | C2 |
| 1 | 10UF 100nF | C_1206_3216Metric | C3 |
| 1 | 10UF 4.7uF | C_1206_3216Metric | C4 |
| 1 | 100NF 0.47uF | C_1206_3216Metric | C5 |
| 1 | 18NF 100nF | C_1206_3216Metric | C6 |
| 1 | 18PF 4.7uF | C_1206_3216Metric | C7 |
| 1 | 10NF 100nF | C_1206_3216Metric | C8 |
| 2 | 100NF 27pF | C_1206_3216Metric | C9, C10 |
| 1 | 10K | R_1206_3216Metric | R1 |
| 2 | 10K | R_1206_3216Metric | R2, R6 |
| 1 | 10K 0 | R_1206_3216Metric | R3 |
| 1 | 100R 10K | R_1206_3216Metric | R4 |
| 1 | 10K 47K | R_1206_3216Metric | R5 |
| 1 | 280R 12K | R_1206_3216Metric | R7 |
Show 3 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 100R 1M | R_1206_3216Metric | R8 |
| 1 | 12K 0 | R_1206_3216Metric | R9 |
| 1 | 510R 10K | R_1206_3216Metric | R10 |
PMOD2USB-FT4222 design files
The KiCad project lives in the kelu124/oshmri repository on GitHub; these links point at the commit this page was built from.
PMOD2USB-FT4222: common questions
How big is the PMOD2USB-FT4222 PCB?
The PMOD2USB-FT4222 measures 38.8 × 22.3 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the PMOD2USB-FT4222?
25 components, from 23 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the PMOD2USB-FT4222 design files?
From the kelu124/oshmri repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the PMOD2USB-FT4222 design in my own project?
The repository has no license, so all rights stay with kelu124. Use it as a reference, and ask the author before reusing the design.
