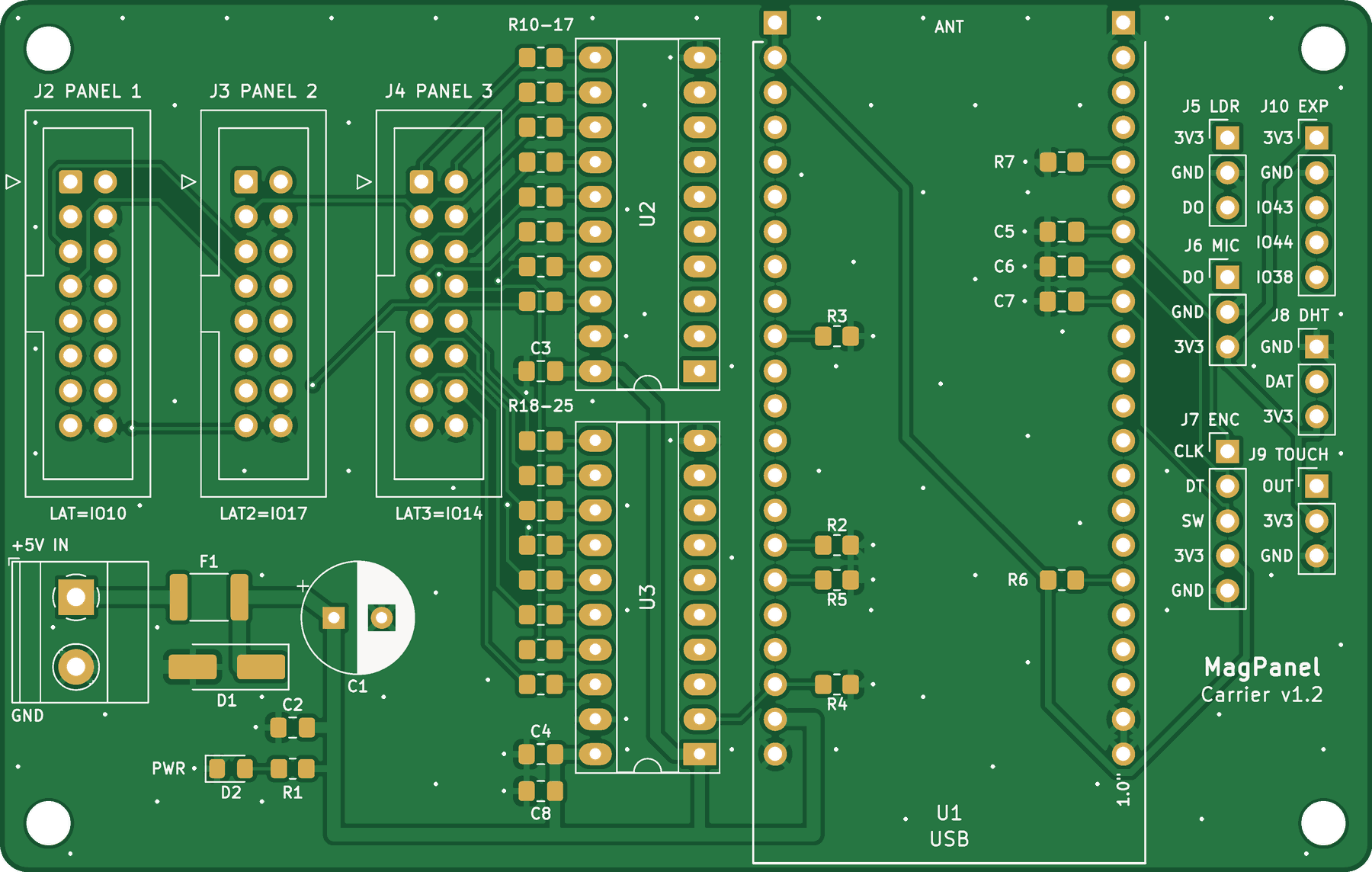

MagPanel Carrier PCB layout, top view — open source ESP32 board by Kem4lk

About the MagPanel Carrier PCB

MagPanel Carrier is an open source ESP32 PCB design by Kem4lk, published on GitHub. It is a 2-layer board measuring 100 × 63.5 mm, with 47 components from 21 distinct parts.

Its main chip is the ESP32-S3-DevKitC-1, from the ESP32 family. Other key parts include the CD74HCT245E (PDIP-20) + 20 pin DIP soket. By type, the board carries 23 resistors, 10 connectors, 8 capacitors, 3 ICs, 2 diodes and 1 fuse.

From the project

ESP32-S3-DevKitC-1'i soketle taşıyan, üç HUB75E çıkışı (P4 tek panel ya da P1.86 1–3 modül) ve beş JSUMO sensör başlığı olan iki katmanlı taşıyıcı kart. Kasa (enclosure/generatecase.py) ve bağlantı şeması (hardware/genschematic.py) gibi her şey koddan üretilir: gencarrier.py`. Pi

ESP32-S3-DevKitC-1'i soketle taşıyan, üç HUB75E çıkışı (P4 tek panel ya da P1.86 1–3 modül) ve beş JSUMO sensör başlığı olan iki katmanlı taşıyıcı kart. Kasa (enclosure/generatecase.py) ve bağlantı şeması (hardware/genschematic.py) gibi her şey koddan üretilir: gencarrier.py`. Pin, parça ya da yerleşim değişirse dosyanın başındaki tabloları düzelt ve yeniden üret. KiCad'de elle yapılan değişiklik bir sonraki üretimde kaybolur.

MagPanel Carrier, from the project README
From the project README

Main components on the MagPanel Carrier

ESP32-S3-DevKitC-1CD74HCT245E (PDIP-20) + 20 pin DIP soket

MagPanel Carrier bill of materials (BOM)

47 components, 21 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ESP32-S3 N16R8 klon (YD-ESP32-S3 tipi, siralar arasi 1.0in) + 2x 1x22 disi soket (2.54 mm)
ESP32-S3-DevKitC-1
U1
2
CD74HCT245E (PDIP-20) + 20 pin DIP soket
74HCT245
U2, U3
1
Phoenix MKDS 1,5/2-5,08 (1714955) ya da esdegeri
5V IN
J1
1
Kutu baslik (box header) 2x8 2.54 mm, duz
HUB75E PANEL 1
J2
1
Kutu baslik (box header) 2x8 2.54 mm, duz
HUB75E PANEL 2
J3
1
Kutu baslik (box header) 2x8 2.54 mm, duz
HUB75E PANEL 3
J4
1
Pin header 1x3 2.54 mm erkek (Dupont)
LDR
J5
1
Pin header 1x3 2.54 mm erkek (Dupont)
MIC
J6
1
Pin header 1x5 2.54 mm erkek (Dupont)
ENC
J7
1
Pin header 1x3 2.54 mm erkek (Dupont)
DHT
J8
1
Pin header 1x3 2.54 mm erkek (Dupont)
TOUCH
J9
1
Pin header 1x5 2.54 mm erkek (Dupont)
EXP
J10
1
MF-MSMF150-2
1.5A
BOURNS
F1
1
SMAJ5.0A
Littelfuse
D1
1
KT-0805G
PWR (yesil)
Hubei KENTO
D2
1
Elektrolitik 470 uF 10 V, D8 P3.5 (low ESR)
470uF 10V
C1
2
CL21A106KAYNNNE
10uF
Samsung
C2, C8
5
CC0805KRX7R9BB104
100nF
YAGEO
C3, C4, C5, C6, C7
1
0805W8F2201T5E
2.2k
UNI-ROYAL
R1
6
0805W8F1002T5E
10k
UNI-ROYAL
R2, R3, R4, R5, R6, R7
Show 1 more
QtyPartRefs
16
0805W8F330JT5E
33R
UNI-ROYAL
R10, R11, R12, R13, R14, R15, R16, R17 +8

MagPanel Carrier design files

The KiCad project lives in the Kem4lk/magpanel repository on GitHub; these links point at the commit this page was built from.

MagPanel Carrier: common questions

What microcontroller does the MagPanel Carrier use?

The MagPanel Carrier is built around the ESP32-S3-DevKitC-1, from the ESP32 family.

How big is the MagPanel Carrier PCB?

The MagPanel Carrier measures 100 × 63.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the MagPanel Carrier?

47 components, from 21 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the MagPanel Carrier design files?

From the Kem4lk/magpanel repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the MagPanel Carrier design in my own project?

The repository has no license, so all rights stay with Kem4lk. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the MagPanel Carrier without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
