About the Artnet neopixel PCB
Artnet neopixel is an open source STM32 PCB design by kenyoshizoe, published on GitHub. It is a 4-layer board measuring 50 × 50 mm, with 88 components from 33 distinct parts.
Its main chip is the STM32F303CBTx, from the STM32 family. Other key parts include the SN74LVC4245APWR, R-783.3-0.5, AMS1117-3.3, SRV05-4 and W5500. By type, the board carries 32 capacitors, 29 resistors, 8 jumpers, 7 connectors, 6 ICs and 3 diodes.
It belongs with the displays & leds designs in this gallery.
From the project

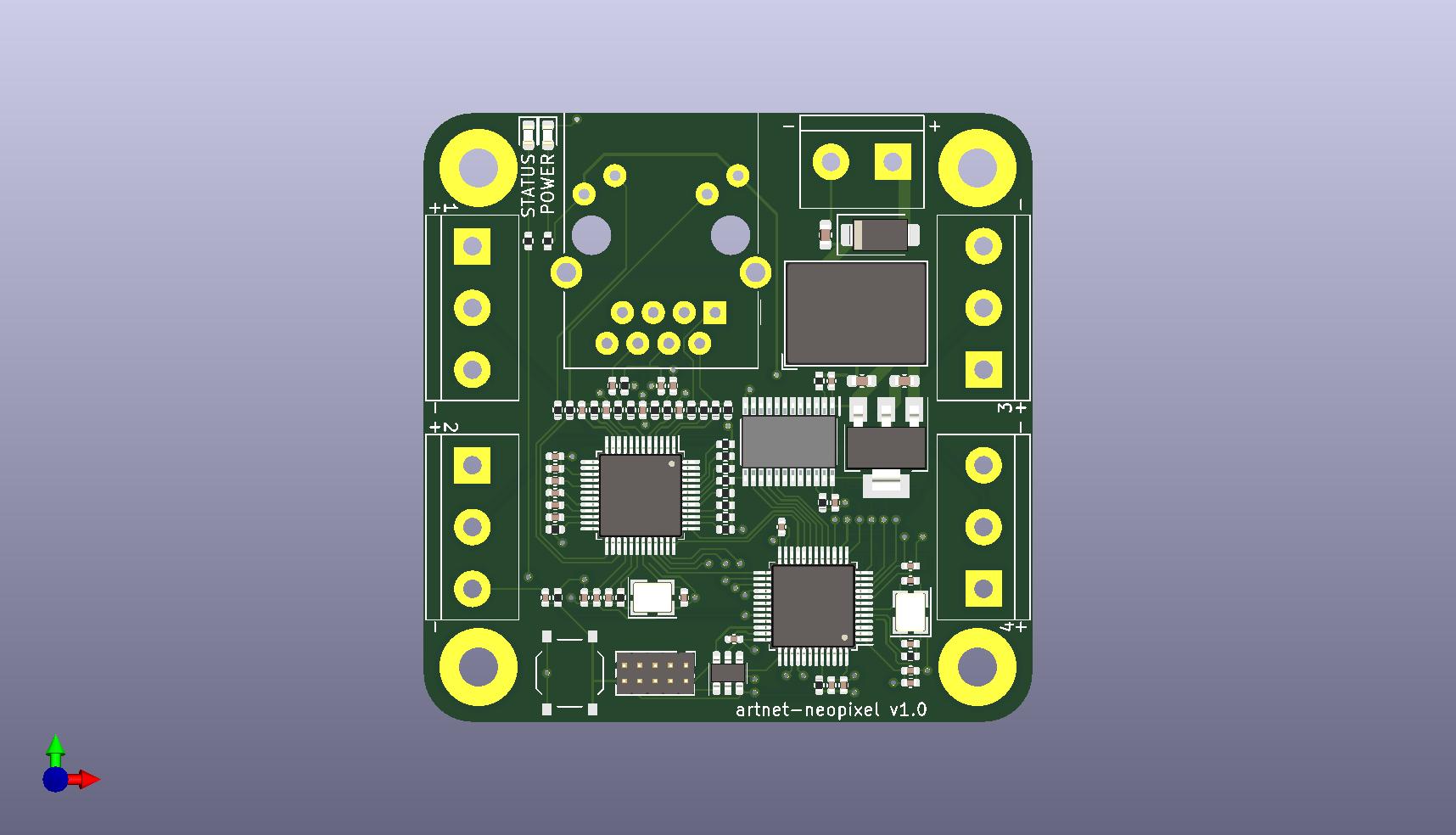

stm32 based Neopixel controller via artnet

Main components on the Artnet neopixel
Artnet neopixel bill of materials (BOM)
88 components, 33 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SN74LVC4245APWR | SOP65P640X120-24N | IC1 |
| 1 | R-783.3-0.5 | Converter_DCDC_RECOM_R-78E-0.5_THT | U1 |
| 1 | AMS1117-3.3 | SOT-223-3_TabPin2 | U2 |
| 1 | SRV05-4 | SOT-23-6 | U3 |
| 1 | STM32F303CBTx | LQFP-48_7x7mm_P0.5mm | U4 |
| 1 | W5500 | LQFP-48_7x7mm_P0.5mm | U5 |
| 1 | 16MHz | Crystal_SMD_3225-4Pin_3.2x2.5mm | Y1 |
| 1 | 25MHz | Crystal_SMD_3225-4Pin_3.2x2.5mm | Y2 |
| 1 | Screw_Terminal_01x02 | TerminalBlock_bornier-2_P5.08mm | J1 |
| 1 | Conn_02x05_Odd_Even | PinHeader_2x05_P1.27mm_Vertical | J2 |
| 4 | Screw_Terminal_01x03 | TerminalBlock_bornier-3_P5.08mm | J3, J4, J5, J6 |
| 1 | RJ45_Amphenol_RJMG1BD3B8K1ANR | RJ45_Amphenol_RJMG1BD3B8K1ANR | J7 |
| 8 | Jumper_2_Open | SolderJumper-2_P1.3mm_Open_Pad1.0x1.5mm | JP1, JP2, JP3, JP4, JP5, JP6, JP7, JP8 |
| 1 | RESET | SW_Push_1P1T_XKB_TS-1187A | SW1 |
| 1 | SS14 | D_SMA | D1 |
| 1 | Blue | LED_0603_1608Metric | D2 |
| 1 | Green | LED_0603_1608Metric | D3 |
| 1 | 100n | C_0603_1608Metric | C1 |
| 2 | 22uF | C_0603_1608Metric | C2, C3 |
| 2 | 4.7u | C_0402_1005Metric | C4, C32 |
Show 13 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 16 | 100n | C_0402_1005Metric | C5, C6, C7, C9, C10, C11, C14, C15 +8 |
| 1 | 1u | C_0402_1005Metric | C8 |
| 4 | 10p | C_0402_1005Metric | C12, C13, C19, C21 |
| 2 | 6.8n | C_0402_1005Metric | C16, C17 |
| 1 | 22n | C_0402_1005Metric | C18 |
| 1 | 10n | C_0402_1005Metric | C20 |
| 2 | 10u | C_0402_1005Metric | C29, C30 |
| 9 | 1k | R_0402_1005Metric | R1, R2, R4, R5, R6, R7, R19, R20 +1 |
| 10 | 10k | R_0402_1005Metric | R3, R17, R18, R21, R23, R24, R25, R26 +2 |
| 4 | 49.9 | R_0402_1005Metric | R8, R9, R15, R16 |
| 1 | 10 | R_0402_1005Metric | R10 |
| 4 | 33 | R_0402_1005Metric | R11, R12, R13, R14 |
| 1 | 12k | R_0402_1005Metric | R29 |
Artnet neopixel design files
The KiCad project lives in the kenyoshizoe/artnet-neopixel repository on GitHub; these links point at the commit this page was built from.
Artnet neopixel: common questions
What microcontroller does the Artnet neopixel use?
The Artnet neopixel is built around the STM32F303CBTx, from the STM32 family.
How big is the Artnet neopixel PCB?
The Artnet neopixel measures 50 × 50 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Artnet neopixel?
88 components, from 33 distinct parts. The full bill of materials is listed on this page.
Where can I download the Artnet neopixel design files?
From the kenyoshizoe/artnet-neopixel repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Artnet neopixel design in my own project?
The repository has no license, so all rights stay with kenyoshizoe. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the Artnet neopixel without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
