ESP32-Stepper-Motor-Breakout-Board

KevinCKHo·ESP32-Stepper-Motor-Breakout-Board·hardware/ESP32 Stepper break out board.kicad_pcb

ESP32-Stepper-Motor-Breakout-Board layout, top view — open source board by KevinCKHo

About the ESP32-Stepper-Motor-Breakout-Board

ESP32-Stepper-Motor-Breakout-Board is an open source PCB design by KevinCKHo, published on GitHub. It is a 2-layer board measuring 85 × 110 mm, with 31 components from 23 distinct parts.

By type, the board carries 20 connectors, 7 resistors and 4 capacitors.

It belongs with the robotics & motion, dev boards & breakouts and sensors designs in this gallery.

From the project

A Wi-Fi controlled, 4-axis stepper motor controller built around an ESP32 on a custom breakout PCB. It was designed to drive a motorized microscope stage (the Microscope Stage Mover).

A Wi-Fi controlled, 4-axis stepper motor controller built around an ESP32 on a custom breakout PCB. It was designed to drive a motorized microscope stage (the Microscope Stage Mover).

The ESP32 creates its own Wi-Fi access point and serves a web dashboard. From the dashboard you can jog each axis with sliders, trigger an emergency stop, and watch temperature and humidity live.

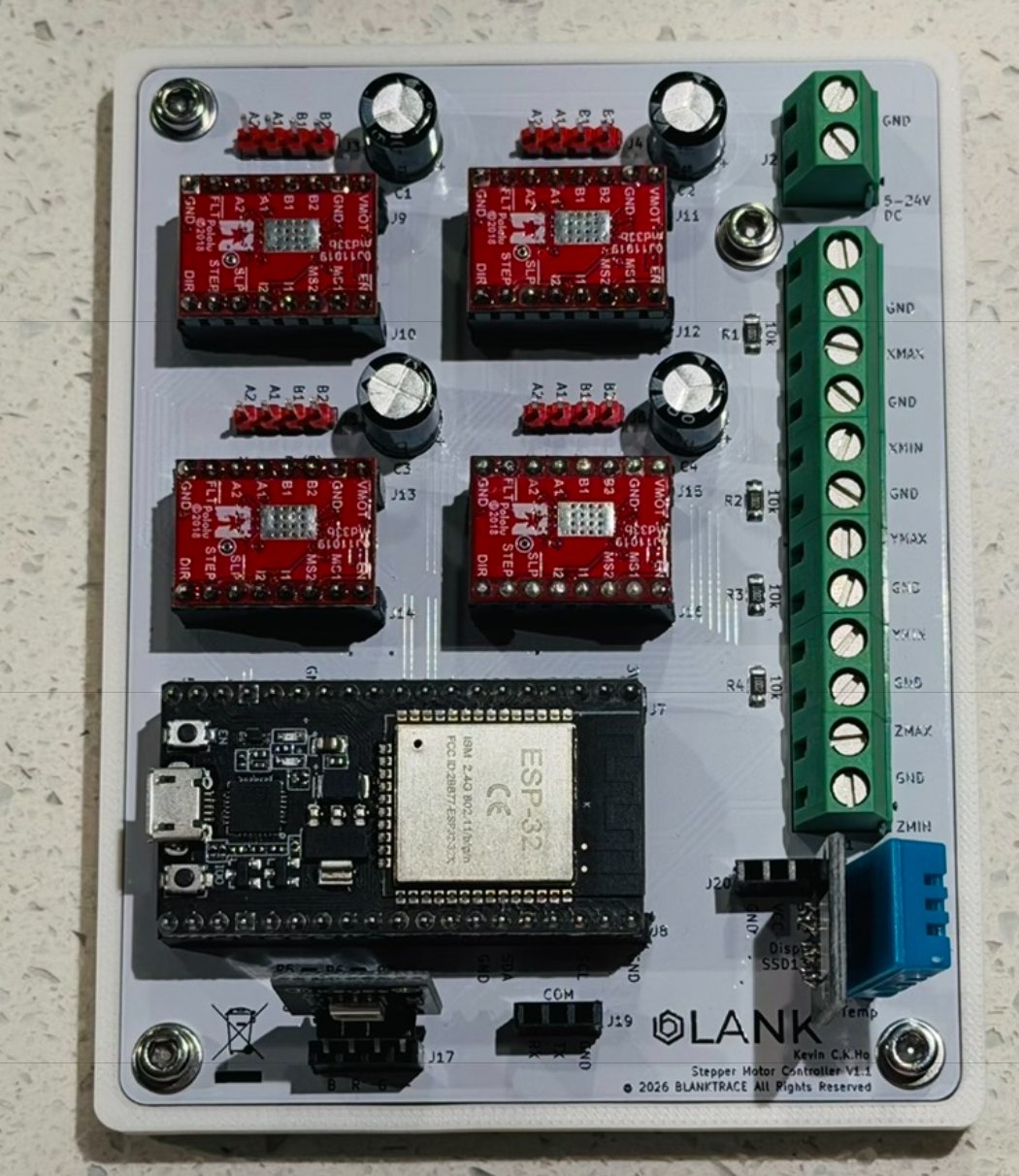

ESP32-Stepper-Motor-Breakout-Board, from the project README
From the project README

ESP32-Stepper-Motor-Breakout-Board bill of materials (BOM)

31 components, 23 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
1715129
Limit Switch
Phoenix Contact
J1
1
1715022
Power Supply
Phoenix Contact
J2
1
Step1
J3
1
Step2
J4
1
Step3
J5
1
Step4
J6
1
ESP_R
J7
1
ESP_L
J8
1
2968
DRV1_R
Pololu
J9
1
2968
DRV1_L
Pololu
J10
1
2968
DRV2_R
Pololu
J11
1
2968
DRV2_L
Pololu
J12
1
2968
DRV3_R
Pololu
J13
1
2968
DRV3_L
Pololu
J14
1
2968
DRV4_R
Pololu
J15
1
2968
DRV4_L
Pololu
J16
1
KY-009
RGB lights
Keyes
J17
1
DHT11
Temp
Keyes
J18
1
Comm
J19
1
Display
J20
Show 3 more
QtyPartRefs
4
C_Polarized
C1, C2, C3, C4
4
RMCF1206FT10K0
10k
Stackpole
R1, R2, R3, R4
3
RMCF1206FT220R
220
Stackpole
R5, R6, R7

ESP32-Stepper-Motor-Breakout-Board design files

The KiCad project lives in the KevinCKHo/ESP32-Stepper-Motor-Breakout-Board repository on GitHub; these links point at the commit this page was built from.

ESP32-Stepper-Motor-Breakout-Board: common questions

How big is the ESP32-Stepper-Motor-Breakout-Board?

The ESP32-Stepper-Motor-Breakout-Board measures 85 × 110 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the ESP32-Stepper-Motor-Breakout-Board?

31 components, from 23 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the ESP32-Stepper-Motor-Breakout-Board design files?

From the KevinCKHo/ESP32-Stepper-Motor-Breakout-Board repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the ESP32-Stepper-Motor-Breakout-Board design in my own project?

The repository has no license, so all rights stay with KevinCKHo. Use it as a reference, and ask the author before reusing the design.
