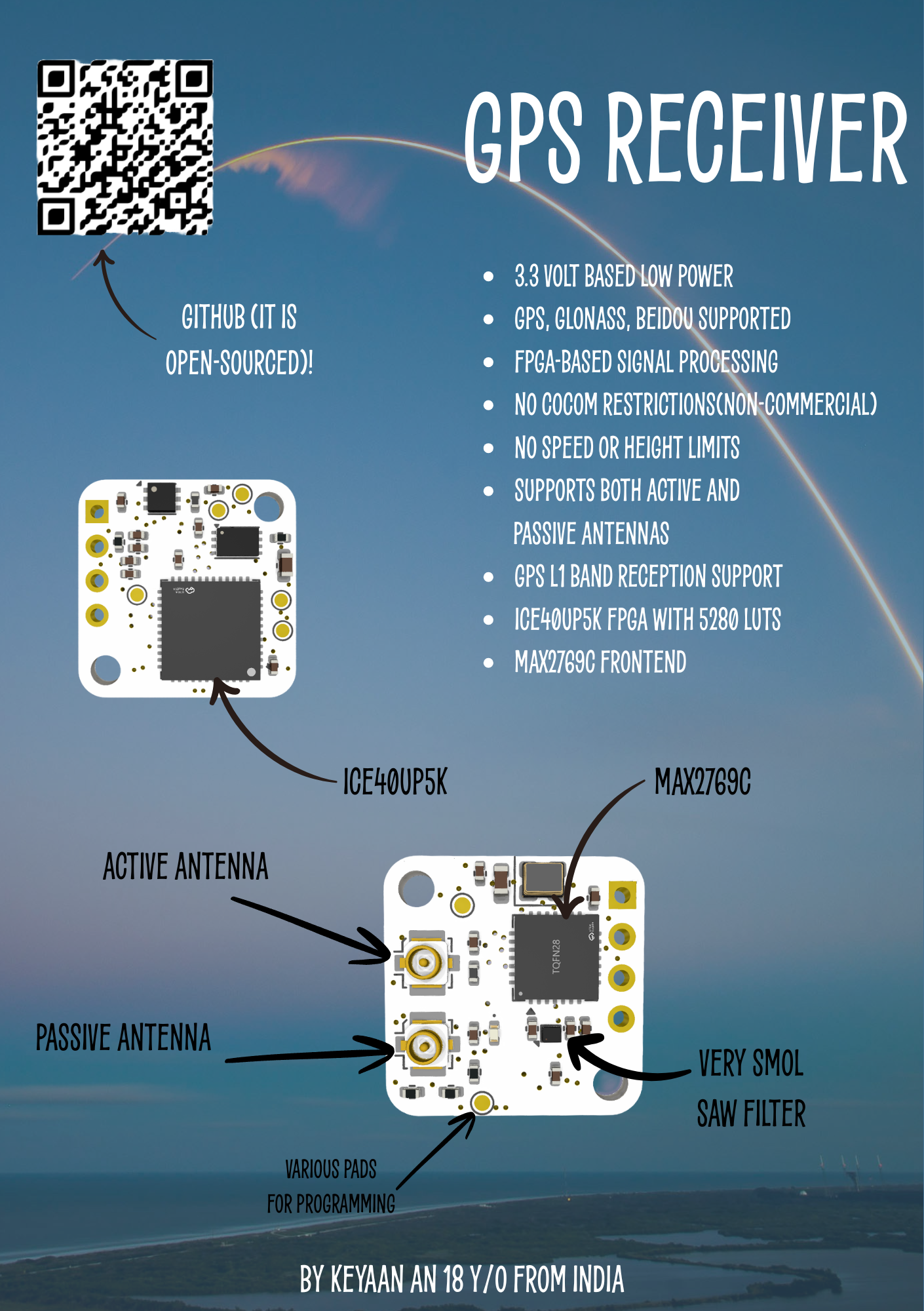

Gps rx
About the Gps rx PCB
Gps rx is an open source FPGA PCB design by Keyaan-07, published on GitHub. It is a 4-layer board measuring 16 × 16 mm, with 36 components from 20 distinct parts.
Its main chip is the ICE40UP5K-SG48I, from the FPGA family. Other key parts include the MAX2769C, PAM2305CGF120 and W25Q16JVUXIQ. By type, the board carries 19 capacitors, 5 resistors, 4 ICs, 3 connectors, 2 inductors and 1 crystal.
It belongs with the rf & radio designs in this gallery.
Main components on the Gps rx
Gps rx bill of materials (BOM)
36 components, 20 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | ICE40UP5K-SG48I | QFN-48-1EP_7x7mm_P0.5mm_EP5.6x5.6mm | U2 |
| 1 | MAX2769C | TQFN-28-1EP_5x5mm_P0.5mm_EP3.25x3.25mm | U3 |
| 1 | PAM2305CGF120 | DFN-6-1EP_2x2mm_P0.65mm_EP1x1.6mm | U4 |
| 1 | W25Q16JVUXIQ | Winbond_USON-8-1EP_3x2mm_P0.5mm_EP0.2x1.6mm | U5 |
| 1 | 1XXB16368MBA | Crystal_SMD_2520-4Pin_2.5x2.0mm | Y1 |
| 2 | Conn_Coaxial_Small | U.FL_Molex_MCRF_73412-0110_Vertical | J1, J2 |
| 1 | CONN_01X04_PIN Conn_01x04_Pin | PinHeader_1x04_P2.54mm_Vertical | J3 |
| 1 | SAFFB1G56KB0F0A | Filter_1109-5_1.1x0.9mm | FL1 |
| 1 | LED | LED_0402_1005Metric | D1 |
| 1 | 27N 27n | L_0402_1005Metric | L1 |
| 1 | 2.2U 2.2u | L_0402_1005Metric | L2 |
| 8 | 100N 100n | C_0402_1005Metric | C2, C4, C8, C12, C13, C14, C15, C18 |
| 5 | 470P 470p | C_0402_1005Metric | C3, C5, C20, C23, C24 |
| 1 | 10N 10n | C_0402_1005Metric | C6 |
| 2 | 100P 100p | C_0402_1005Metric | C9, C11 |
| 1 | 27P 27p | C_0402_1005Metric | C19 |
| 2 | 10U 10u | C_0603_1608Metric | C21, C22 |
| 3 | 10K 10k | R_0402_1005Metric | R1, R2, R6 |
| 1 | 1k | R_0402_1005Metric | R3 |
| 1 | 20K 20k | R_0402_1005Metric | R4 |
Gps rx design files
The KiCad project lives in the Keyaan-07/gps-rx repository on GitHub; these links point at the commit this page was built from.
Gps rx: common questions
What microcontroller does the Gps rx use?
The Gps rx is built around the ICE40UP5K-SG48I, from the FPGA family.
How big is the Gps rx PCB?
The Gps rx measures 16 × 16 mm, has 4 copper layers and is 1.0588 mm thick.
How many components are on the Gps rx?
36 components, from 20 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Gps rx design files?
From the Keyaan-07/gps-rx repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Gps rx design in my own project?
The repository has no license, so all rights stay with Keyaan-07. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the Gps rx without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug FPGA firmware against it before you order a PCB.
