About the PicoKey PCB

PicoKey is an open source RP2040/RP2350 PCB design by Keyaan-07, published on GitHub under the MIT license. It is a 2-layer board measuring 34.5 × 18.5 mm, with 36 components from 17 distinct parts.

Its main chip is the RP2350A-QFN60, from the RP2040/RP2350 family. Other key parts include the AMS1117S-3.3 and W25Q128JVS. By type, the board carries 19 capacitors, 7 resistors, 3 ICs, 2 switches, 2 diodes and 1 crystal.

From the project

A FIDO2 based passkey using the RP2350A and in it's smallest form factor!

I go to highschool, and teens are always around when i try to login to my mail or github or any other account, so my password can be compromised.

To solve this, I created PicoKey, which is a hardware pass key in a very small form factor(34.5mm x 18.5mm). It uses the RP2350A chip, although I wanted to use my favourite MCU, the rp2040, it was not safe as a pass key, so I used the rp2350A this time, which is much more safer and secure than the RP2350A.

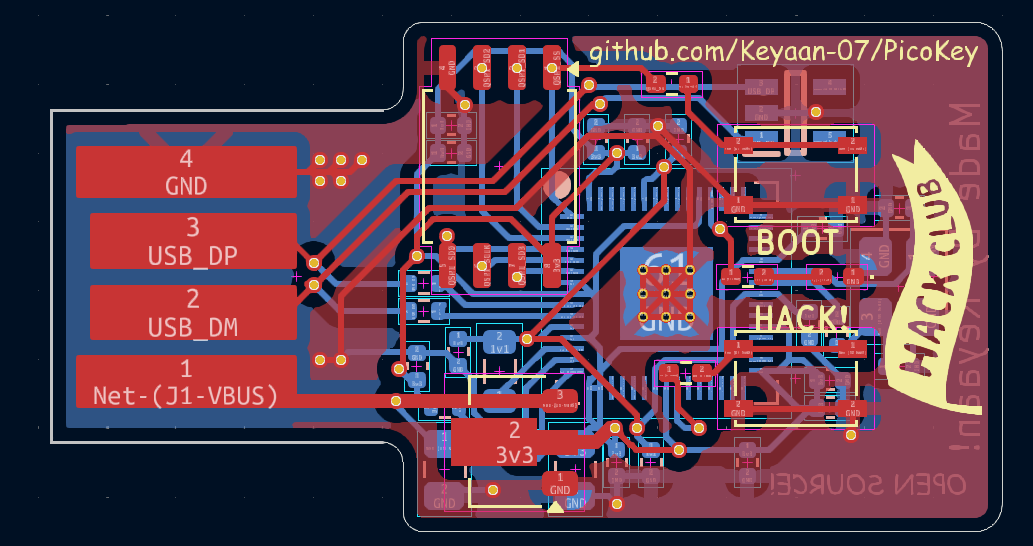

PicoKey, from the project README — From the project README

Main components on the PicoKey

RP2350A-QFN60 AMS1117S-3.3 W25Q128JVS

PicoKey bill of materials (BOM)

36 components, 17 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
1	RP2350A-QFN60	RP2350A_QFN-60_EP_7.75x7.75_Pitch0.4mm	U1
1	AMS1117S-3.3	SOT-89-3	U2
1	W25Q128JVS	SOIC-8_5.3x5.3mm_P1.27mm	U3
1	CRYSTAL_GND24 Crystal_GND24	Crystal_SMD_3225-4Pin_3.2x2.5mm	Y1
1	USB_A	USBPCB	J1
2	SW_Push	SW_SPST_PTS810	SW1, SW2
1	LED	LED_0402_1005Metric_Pad0.77x0.64mm_HandSolder	D1
1	ESDS314DBVR	ESDS314BVR_SOT95P280X145-5N	D2
1	3.3U 3.3u	L_0805_2012Metric	L1
3	4.7U 4.7u	C_0402_1005Metric	C1, C2, C3
2	10U 10u	C_0805_2012Metric	C4, C5
12	100N 100n	C_0402_1005Metric	C6, C7, C8, C9, C10, C11, C12, C13 +4
2	15P 15p	C_0402_1005Metric	C18, C19
1	33	R_0402_1005Metric	R1
3	1k	R_0402_1005Metric_Pad0.72x0.64mm_HandSolder	R2, R6, R7
2	27	R_0402_1005Metric	R3, R4
1	1k	R_0402_1005Metric	R5

PicoKey design files

The KiCad project lives in the Keyaan-07/PicoKey repository on GitHub; these links point at the commit this page was built from.

PicoKey: common questions

What microcontroller does the PicoKey use?

The PicoKey is built around the RP2350A-QFN60, from the RP2040/RP2350 family.

How big is the PicoKey PCB?

The PicoKey measures 34.5 × 18.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the PicoKey?

36 components, from 17 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the PicoKey design files?

From the Keyaan-07/PicoKey repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the PicoKey design in my own project?

Yes, under the terms of its MIT license, which Keyaan-07 chose for the repository.
