About the ZenCore PCB

ZenCore is an open source STM32 PCB design by Keyaan-07, published on GitHub under the MIT license. It is a 2-layer board measuring 51 × 21 mm, with 34 components from 19 distinct parts.

Its main chip is the STM32F411CEUX, from the STM32 family. Other key parts include the W25Q128JVS and TPS62162DSG. By type, the board carries 12 capacitors, 9 resistors, 4 connectors, 3 ICs, 2 switches and 2 diodes.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

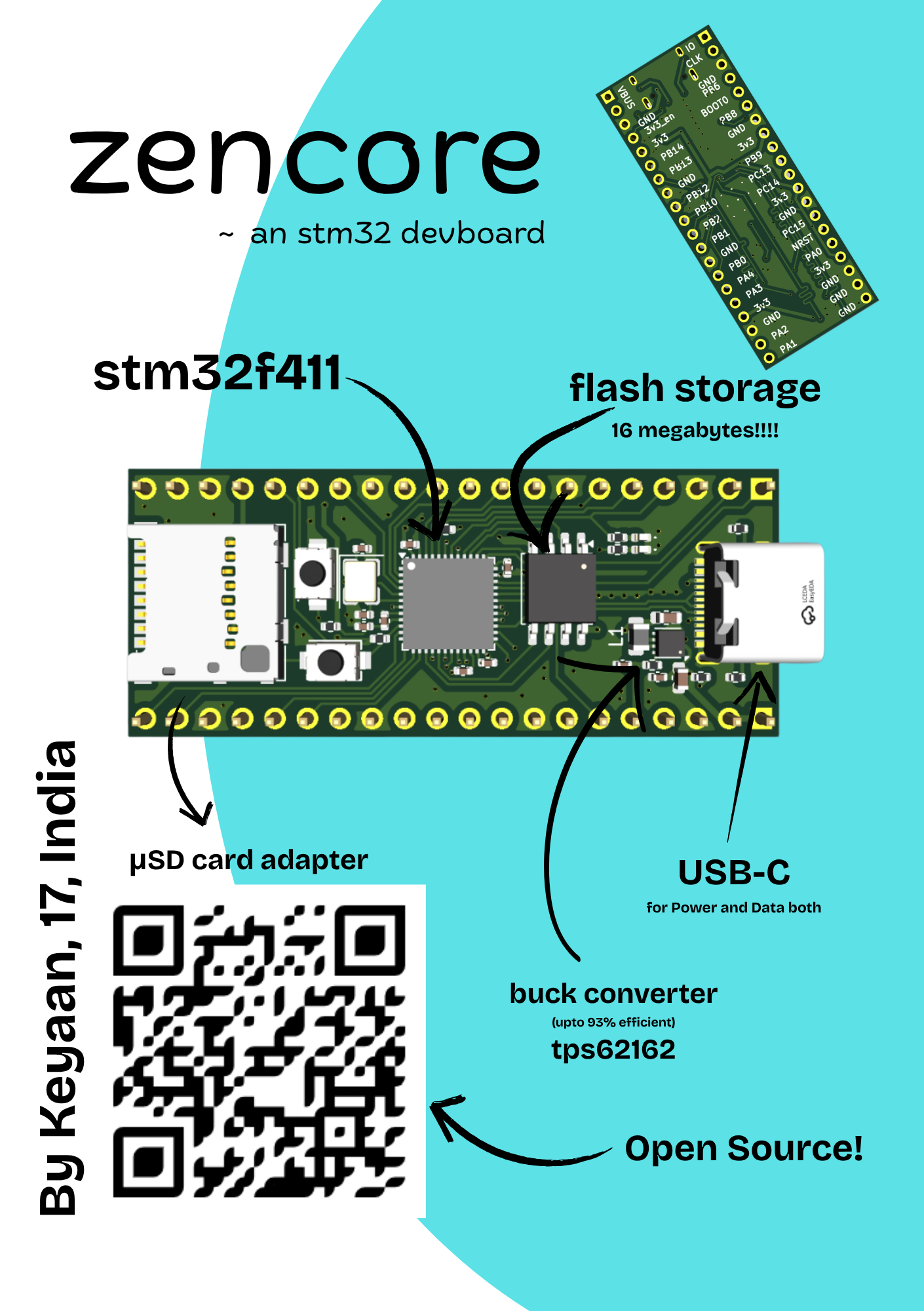

A pico-sized STM32 Devboard with a μSD card reader!

ZenCore, from the project README
From the project README

Main components on the ZenCore

W25Q128JVSSTM32F411CEUXTPS62162DSG

ZenCore bill of materials (BOM)

34 components, 19 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
W25Q128JVS
U1
1
STM32F411CEUX
STM32F411CEUx
U2
1
TPS62162DSG
U3
1
CRYSTAL_GND24_SMALL
Crystal_GND24_Small
Y1
1
Micro_SD_Card
J1
1
USB_C_RECEPTACLE_USB2.0_16P
USB_C_Receptacle_USB2.0_16P
J2
2
CONN_01X20_PIN
Conn_01x20_Pin
J3, J4
2
SW_Push
SW1, SW2
2
LED
D1, D2
1
2.2U
2.2u
L1
6
100N
100n
C1, C2, C3, C4, C10, C12
1
1u
C5
1
4.7U
4.7u
C6
2
22P
22p
C7, C8
1
22U
22u
C9
1
10U
10u
C11
5
5.1K
5.1k
R1, R2, R3, R7, R9
2
100K
100k
R4, R10
2
100R
R5, R6

ZenCore design files

The KiCad project lives in the Keyaan-07/ZenCore repository on GitHub; these links point at the commit this page was built from.

ZenCore: common questions

What microcontroller does the ZenCore use?

The ZenCore is built around the STM32F411CEUX, from the STM32 family.

How big is the ZenCore PCB?

The ZenCore measures 51 × 21 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the ZenCore?

34 components, from 19 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the ZenCore design files?

From the Keyaan-07/ZenCore repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the ZenCore design in my own project?

Yes, under the terms of its MIT license, which Keyaan-07 chose for the repository.

Can I test firmware for the ZenCore without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
