Zenith PCB layout, top view — open source board by Keyaan-07

About the Zenith PCB

Zenith is an open source PCB design by Keyaan-07, published on GitHub under the MIT license. It is a 6-layer board measuring 85 × 55 mm, with 145 components from 34 distinct parts.

Other key parts include the NT5CB256M16ER-FL, RK3328, TPD12S016PWR, TPS565201 and BQ25690RBAR. By type, the board carries 75 capacitors, 39 resistors, 10 ICs, 9 connectors, 6 inductors and 2 transistors.

It belongs with the power & battery designs in this gallery.

From the project

A battery powered single board computer capable of running linux

Zenith is a small single board computer made with the RK3328 which comes with 512 MegaBytes of DDR3 RAM. Zenith is built to run on battery backups along with USB Type-C power inputs. Features of zenith are:

- Quad core ARM Cortex-A53 CPU - 512 MB DDR3 RAM - SD support - 100M ethernet - HDMI out - 24 bit audio - 1x USB 3.0 2x USB 2.0

I made this SBC because i wanted to locally host some slack bots. There is literally no other reason. I have not compiled buildroot because i'll be using a prebuilt version from ROCK64. A small reason for this is because my laptop probably cannot handle…

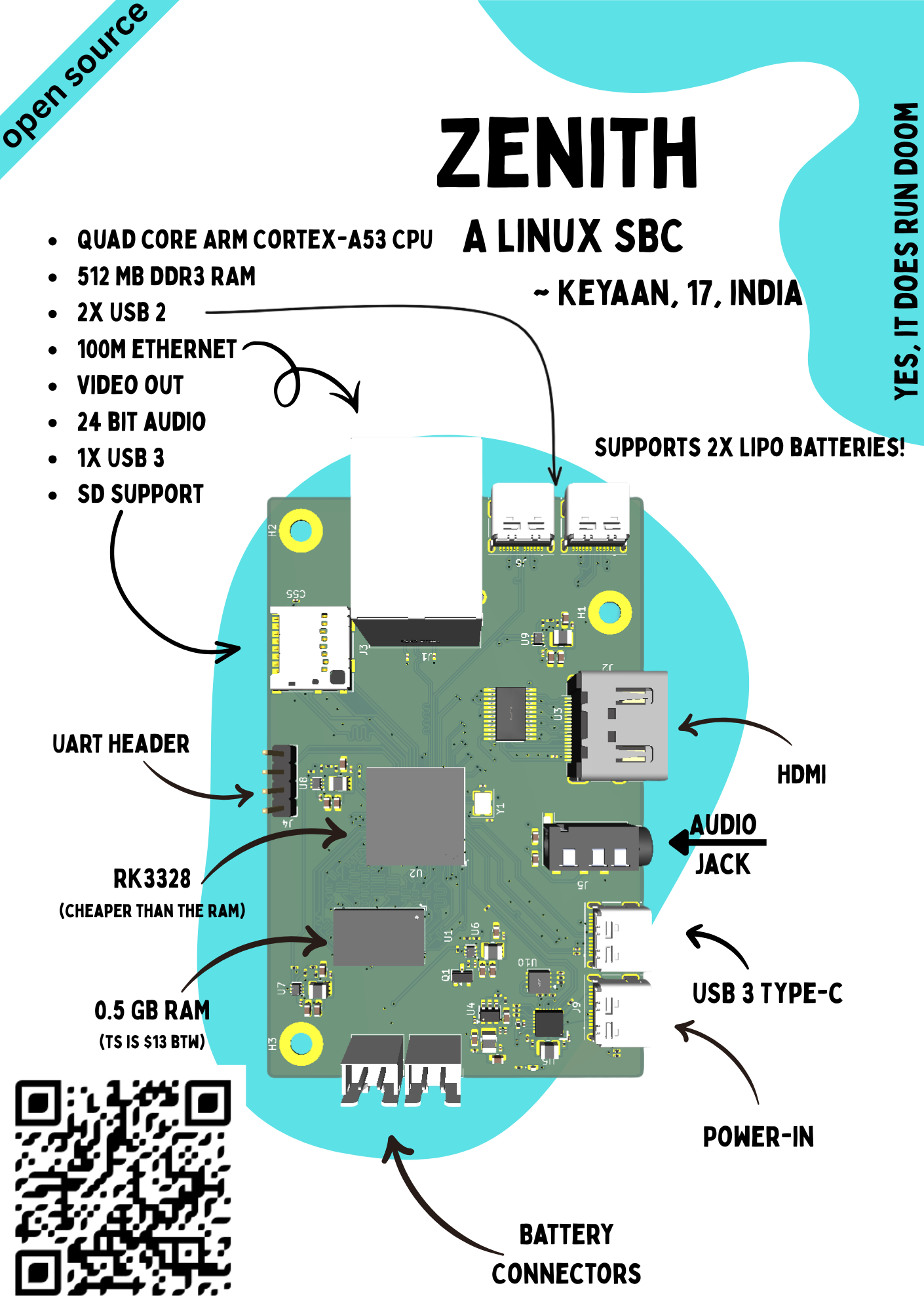

Zenith, from the project README
From the project README

Main components on the Zenith

NT5CB256M16ER-FLRK3328TPD12S016PWRTPS565201BQ25690RBARTPS563252DRLRBQ29209DRBR

Zenith bill of materials (BOM)

145 components, 34 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
NT5CB256M16ER-FL
Nanya(南亚科技)
U1
1
RK3328
Rockchip(瑞芯微)
U2
1
TPD12S016PWR
TI(德州仪器)
U3
1
TPS565201
U4
1
BQ25690RBAR
TI(德州仪器)
U5
4
TPS563252DRLR
TI(德州仪器)
U6, U7, U8, U9
1
BQ29209DRBR
TI(德州仪器)
U10
1
2N7002
Q1
1
AON7262E
AON7262e
Q2
1
CRYSTAL_GND24
Crystal_GND24
Y1
1
RJ45_HANRUN_HR911105A_HORIZONTAL
RJ45_Hanrun_HR911105A_Horizontal
J1
1
HDMI_A
J2
1
Micro_SD_Card
J3
1
CONN_01X04_PIN
Conn_01x04_Pin
J4
1
AUDIOJACK4
AudioJack4
J5
4
USB_C_Receptacle
J6, J7, J8, J9
2
Battery_Cell
BT1, BT2
1
LED
D1
6
2.2U
2.2u
L1, L2, L3, L4, L5, L6
52
100N
100n
C0, C1, C2, C3, C4, C5, C6, C7 +44
Show 14 more
QtyPartRefs
17
10U
10u
C20, C34, C36, C38, C39, C41, C43, C44 +9
2
C_Small
C60, C61
2
1u
C65, C68
2
47N
47n
C72, C73
1
240
R1
17
10K
10k
R2, R3, R5, R6, R8, R9, R11, R17 +9
1
6.6K
6.6k
R4
2
35K
35k
R12, R41
6
R
R13, R14, R15, R18, R19, R20
1
56K
56k
R16
1
10M
10m
R21
5
100
R22, R23, R24, R25, R34
2
0R
R28, R29
3
5.1K
5.1k
R36, R37, R39

Zenith design files

The KiCad project lives in the Keyaan-07/Zenith repository on GitHub; these links point at the commit this page was built from.

Zenith: common questions

How big is the Zenith PCB?

The Zenith measures 85 × 55 mm, has 6 copper layers and is 0.23 mm thick.

How many components are on the Zenith?

145 components, from 34 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Zenith design files?

From the Keyaan-07/Zenith repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Zenith design in my own project?

Yes, under the terms of its MIT license, which Keyaan-07 chose for the repository.
