IGrill Smoker Raspberry Pi SSR Control

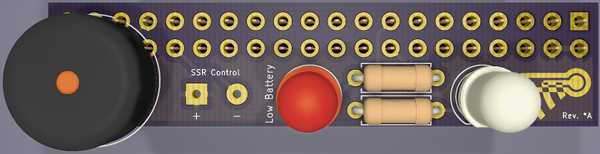

About the IGrill Smoker Raspberry Pi SSR Control PCB
IGrill Smoker Raspberry Pi SSR Control is an open source Raspberry Pi PCB design by kins-dev, published on GitHub under the MIT license. It is a 2-layer board measuring 51.8 × 11.7 mm, with 6 components from 5 distinct parts.
Its main chip is the Raspberry_Pi_2_3, from the Raspberry Pi family. By type, the board carries 2 diodes, 2 resistors, 1 connector and 1 buzzer.
From the project
Using the iGrill as a control unit for a DIY smoker
🔴 Note: You are 100% responsible for ensuring safe food practices are followed.
🔴 Check and modify temperatures as appropriate
- Problem Statement - Design - Equipment - Requirements - Installation - Software Setup - Using iGrill Mini - Grill Setup - Running - Lighttpd Setup - Project Notes - iGrill Smoker Board Rev. A - A Board - A Notes - A Parts - iGrill Smoker Board Rev. B - B Board - B Notes - B Parts - iGrill Smoker Board Rev. C - C Board - C Notes - C Parts - iGrill Smoker Board Rev. D - D Notes - D Parts - iGrill Smoker Board Rev. E - E Notes - E Parts
IGrill Smoker Raspberry Pi SSR Control bill of materials (BOM)
6 components, 5 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Raspberry_Pi_2_3 | PinSocket_2x20_P2.54mm_Vertical | J1 |
| 1 | Buzzer | Buzzer_TDK_PS1240P02BT_D12.2mm_H6.5mm | BZ1 |
| 1 | Low Battery | LED_D5.0mm | D1 |
| 1 | Done | LED_D5.0mm_Clear | D2 |
| 2 | 100 | R_Axial_DIN0207_L6.3mm_D2.5mm_P7.62mm_Horizontal | R1, R2 |
IGrill Smoker Raspberry Pi SSR Control design files
The KiCad project lives in the kins-dev/igrill-smoker repository on GitHub; these links point at the commit this page was built from.
IGrill Smoker Raspberry Pi SSR Control: common questions
What microcontroller does the IGrill Smoker Raspberry Pi SSR Control use?
The IGrill Smoker Raspberry Pi SSR Control is built around the Raspberry_Pi_2_3, from the Raspberry Pi family.
How big is the IGrill Smoker Raspberry Pi SSR Control PCB?
The IGrill Smoker Raspberry Pi SSR Control measures 51.8 × 11.7 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the IGrill Smoker Raspberry Pi SSR Control?
6 components, from 5 distinct parts. The full bill of materials is listed on this page.
Where can I download the IGrill Smoker Raspberry Pi SSR Control design files?
From the kins-dev/igrill-smoker repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the IGrill Smoker Raspberry Pi SSR Control design in my own project?
Yes, under the terms of its MIT license, which kins-dev chose for the repository.
Can I test firmware for the IGrill Smoker Raspberry Pi SSR Control without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Raspberry Pi firmware against it before you order a PCB.
