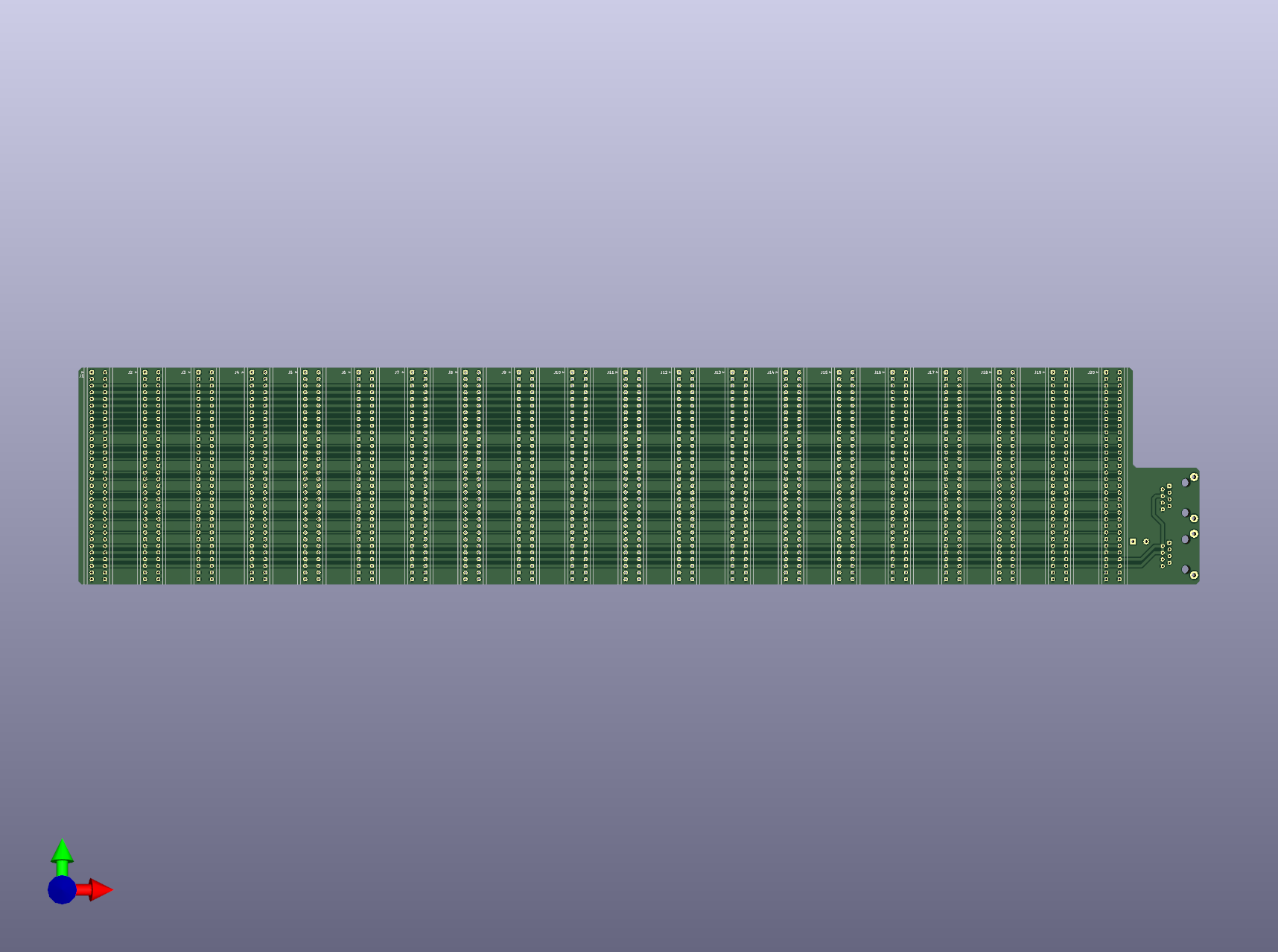

Kha bgt backplane-64 PCB layout, top view — open source board by kiu
Simulate this board

About the Kha bgt backplane-64 PCB

Kha bgt backplane-64 is an open source PCB design by kiu, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 426.7 × 82.6 mm, with 23 components from 4 distinct parts.

From the project

Overengineered Modular RS-485 Multi-Master 19" Subrack Home Automation / Control

Superseded Ideas / Failed Hardware Revisions

Kha bgt backplane-64, from the project README
From the project README

Kha bgt backplane-64 bill of materials (BOM)

23 components, 4 distinct parts.

QtyPartRefs
1
DIN41612_02x10_AB
J1
19
DIN41612_02x32_AC
J2, J3, J4, J5, J6, J7, J8, J9 +11
1
Screw_Terminal_01x02
J21
2
RJ45_Shielded
J22, J23
