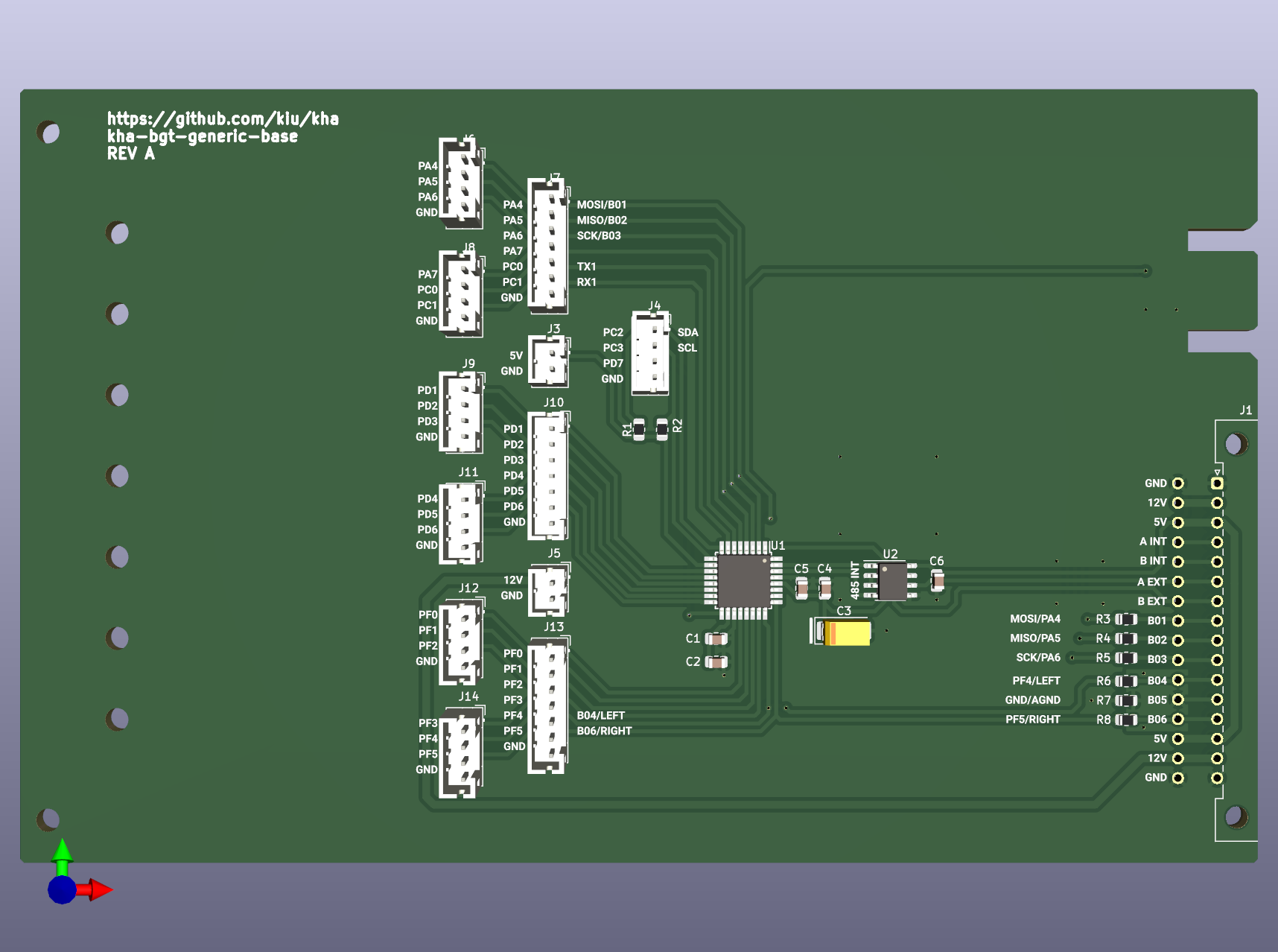

Kha bgt generic base
About the Kha bgt generic base PCB
Kha bgt generic base is an open source PCB design by kiu, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 160 × 100 mm, with 30 components from 11 distinct parts.
Other key parts include the AVR64DD32 and SP481E. By type, the board carries 14 connectors, 8 resistors, 6 capacitors and 2 ICs.
From the project
Overengineered Modular RS-485 Multi-Master 19" Subrack Home Automation / Control
Main components on the Kha bgt generic base
Kha bgt generic base bill of materials (BOM)
30 components, 11 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | AVR64DD32 | TQFP-32_7x7mm_P0.8mm | U1 |
| 1 | SP481E | SOIC-8_3.9x4.9mm_P1.27mm | U2 |
| 1 | DIN41612_02x16_AC | DIN41612_C2_2x16_Male_Horizontal_THT | J1 |
| 1 | AVR-UPDI-6 | eAVR6-UPDI-F | J2 |
| 2 | Conn_01x02 | JST_PH_B2B-PH-K_1x02_P2.00mm_Vertical | J3, J5 |
| 7 | Conn_01x04 | JST_PH_B4B-PH-K_1x04_P2.00mm_Vertical | J4, J6, J8, J9, J11, J12, J14 |
| 3 | Conn_01x07 | JST_PH_B7B-PH-K_1x07_P2.00mm_Vertical | J7, J10, J13 |
| 2 | 10nF | C_0805_2012Metric | C1, C5 |
| 3 | 100nF | C_0805_2012Metric | C2, C4, C6 |
| 1 | 220uF | CP_EIA-6032-28_Kemet-C | C3 |
| 8 | R | R_0805_2012Metric | R1, R2, R3, R4, R5, R6, R7, R8 |
Kha bgt generic base design files
The KiCad project lives in the kiu/kha repository on GitHub; these links point at the commit this page was built from.
Kha bgt generic base: common questions
How big is the Kha bgt generic base PCB?
The Kha bgt generic base measures 160 × 100 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Kha bgt generic base?
30 components, from 11 distinct parts. The full bill of materials is listed on this page.
Where can I download the Kha bgt generic base design files?
From the kiu/kha repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Kha bgt generic base design in my own project?
It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.
