Kha bgt generic-4btn sub PCB layout, top view — open source board by kiu

About the Kha bgt generic-4btn sub PCB

Kha bgt generic-4btn sub is an open source PCB design by kiu, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 16.5 × 110 mm, with 10 components from 3 distinct parts.

By type, the board carries 4 switches, 4 resistors and 2 connectors.

From the project

Overengineered Modular RS-485 Multi-Master 19" Subrack Home Automation / Control

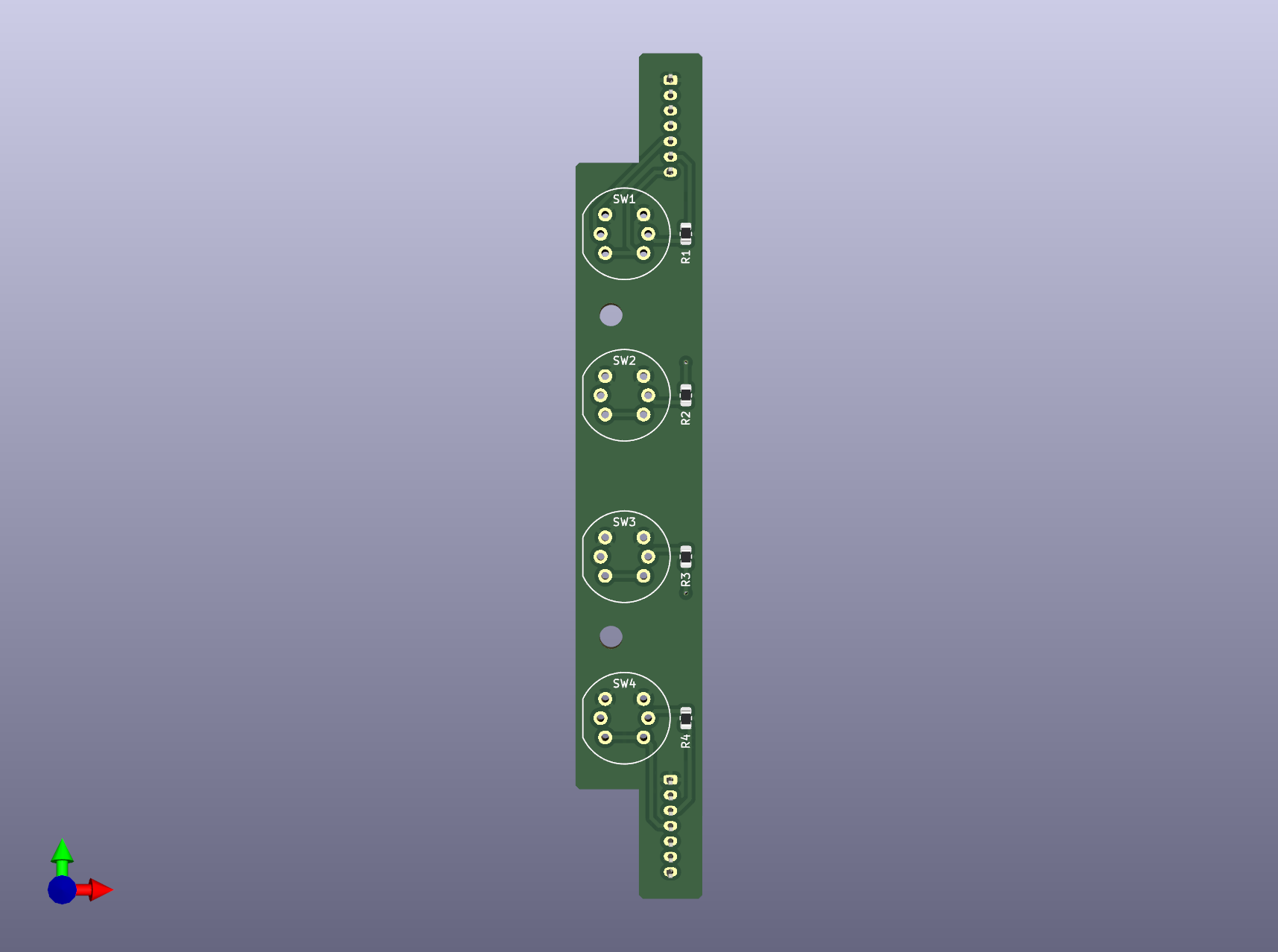

Kha bgt generic-4btn sub, from the project README
From the project README

Kha bgt generic-4btn sub bill of materials (BOM)

10 components, 3 distinct parts.

QtyPartRefs
2
Conn_01x07
J1, J2
4
KS01-BL
SW1, SW2, SW3, SW4
4
R
R1, R2, R3, R4

Kha bgt generic-4btn sub design files

The KiCad project lives in the kiu/kha repository on GitHub; these links point at the commit this page was built from.

Kha bgt generic-4btn sub: common questions

How big is the Kha bgt generic-4btn sub PCB?

The Kha bgt generic-4btn sub measures 16.5 × 110 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Kha bgt generic-4btn sub?

10 components, from 3 distinct parts. The full bill of materials is listed on this page.

Where can I download the Kha bgt generic-4btn sub design files?

From the kiu/kha repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Kha bgt generic-4btn sub design in my own project?

It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.
