Kha pwr rj45

kiu·kha·kha-nodes/kha-pwr-rj45/kicad/kha-pwr-rj45.kicad_pcb

Kha pwr rj45 PCB layout, top view — open source board by kiu

About the Kha pwr rj45 PCB

Kha pwr rj45 is an open source PCB design by kiu, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 70 × 30 mm, with 9 components from 6 distinct parts.

By type, the board carries 6 connectors, 2 capacitors and 1 resistor.

From the project

Overengineered Modular RS-485 Multi-Master 19" Subrack Home Automation / Control

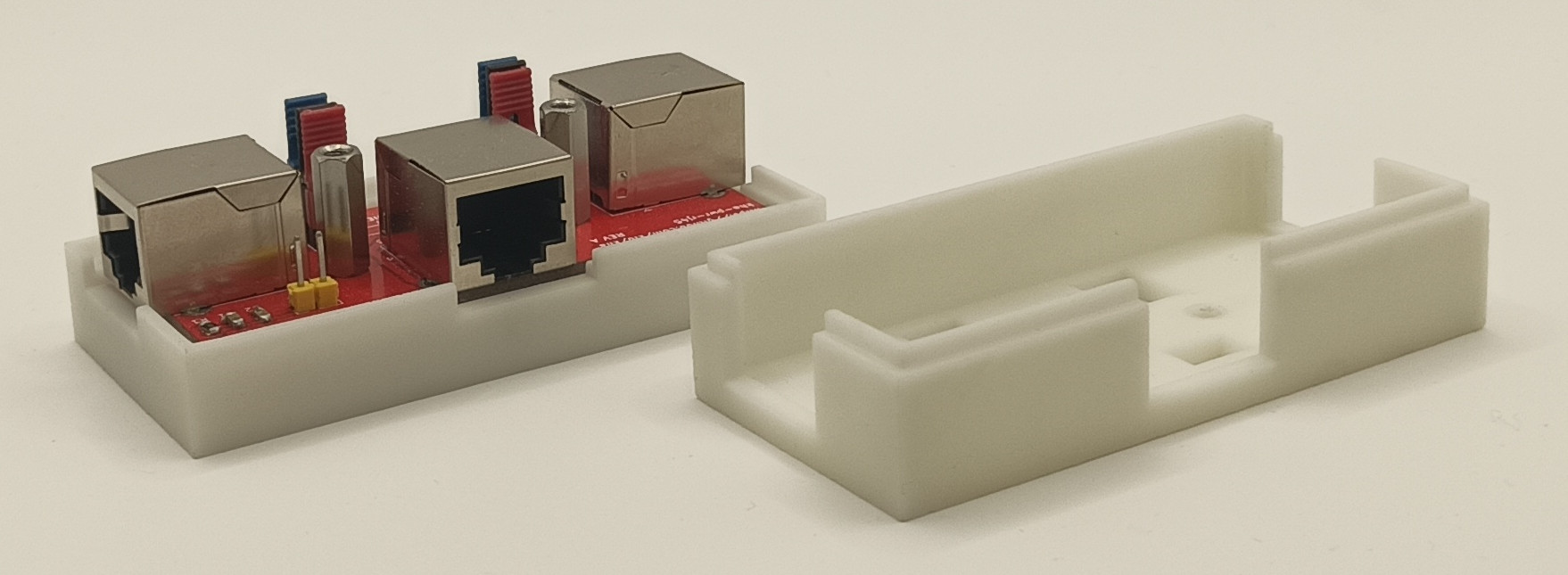

Kha pwr rj45, from the project README
From the project README

Kha pwr rj45 bill of materials (BOM)

9 components, 6 distinct parts.

QtyPartRefs
2
Conn_02x03_Odd_Even
J1, J2
3
RJ45_Shielded
J3, J4, J5
1
1x02_Jumper
J6
1
100nF
C1
1
10nF
C2
1
1M
R1

Kha pwr rj45 design files

The KiCad project lives in the kiu/kha repository on GitHub; these links point at the commit this page was built from.

Kha pwr rj45: common questions

How big is the Kha pwr rj45 PCB?

The Kha pwr rj45 measures 70 × 30 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Kha pwr rj45?

9 components, from 6 distinct parts. The full bill of materials is listed on this page.

Where can I download the Kha pwr rj45 design files?

From the kiu/kha repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Kha pwr rj45 design in my own project?

It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.
