Kha remote

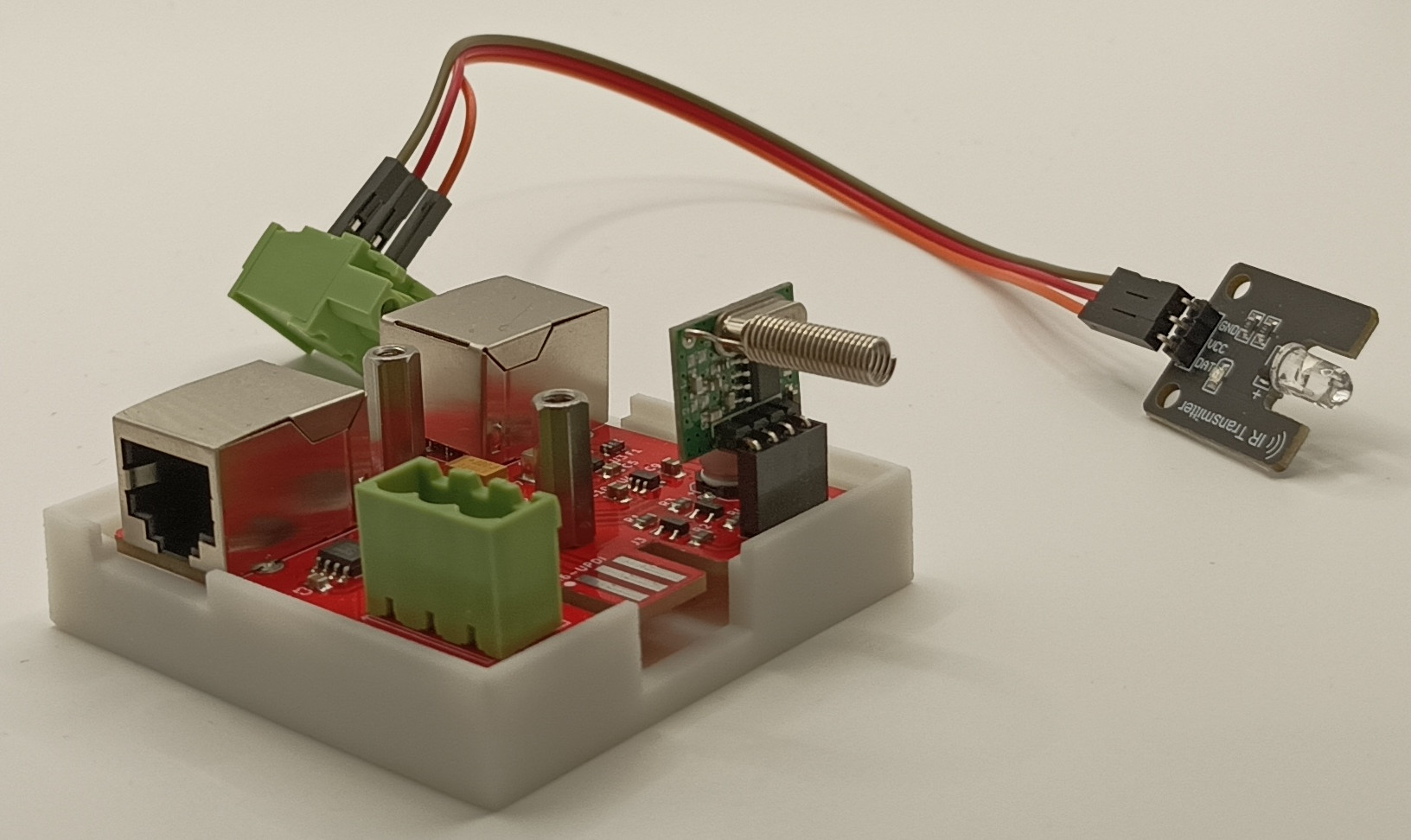

About the Kha remote PCB
Kha remote is an open source PCB design by kiu, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 50 × 53 mm, with 27 components from 19 distinct parts.
Other key parts include the AVR64DD32, SP481E, AP63205WU and MIC5504-3.3YM5. By type, the board carries 10 capacitors, 5 connectors, 4 ICs, 4 resistors, 2 transistors and 1 fuse.
From the project
Overengineered Modular RS-485 Multi-Master 19" Subrack Home Automation / Control
Main components on the Kha remote
Kha remote bill of materials (BOM)
27 components, 19 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | AVR64DD32 | TQFP-32_7x7mm_P0.8mm | U1 |
| 1 | SP481E | SOIC-8_3.9x4.9mm_P1.27mm | U2 |
| 1 | AP63205WU | TSOT-23-6 | U3 |
| 1 | MIC5504-3.3YM5 | SOT-23-5 | U4 |
| 2 | DMG2301L | SOT-23 | Q1, Q2 |
| 1 | Conn_01x03 | TerminalBlock_Phoenix_MKDS-1,5-3-5.08_1x03_P5.08mm_Horizontal | J1 |
| 1 | Conn_01x04 | PinSocket_1x04_P2.54mm_Vertical | J2 |
| 1 | AVR-UPDI-6 | eAVR6-UPDI-F | J3 |
| 2 | RJ45_Shielded | GDLX-S-88K | J4, J5 |
| 1 | Polyfuse | Fuse_0805_2012Metric | F1 |
| 1 | 4.7uH | L_1210_3225Metric | L1 |
| 1 | 10nF | C_0805_2012Metric | C1 |
| 3 | 100nF | C_0805_2012Metric | C2, C3, C5 |
| 1 | 470uF | CP_Elec_6.3x7.7 | C4 |
| 1 | 10uF | C_0805_2012Metric | C6 |
| 1 | 47uF | C_1210_3225Metric | C7 |
| 1 | 220uF | CP_EIA-6032-28_Kemet-C | C8 |
| 2 | 1uF | C_0805_2012Metric | C9, C10 |
| 4 | R | R_0805_2012Metric | R1, R2, R3, R4 |
Kha remote design files
The KiCad project lives in the kiu/kha repository on GitHub; these links point at the commit this page was built from.
Kha remote: common questions
How big is the Kha remote PCB?
The Kha remote measures 50 × 53 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Kha remote?
27 components, from 19 distinct parts. The full bill of materials is listed on this page.
Where can I download the Kha remote design files?
From the kiu/kha repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Kha remote design in my own project?
It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.
