Kiwikit rpi pico PCB layout, top view — open source RP2040/RP2350 board by kiwih
Simulate this board

About the Kiwikit rpi pico PCB

Kiwikit rpi pico is an open source RP2040/RP2350 PCB design by kiwih, published on GitHub under the MIT license. It is a 2-layer board measuring 100 × 100 mm, with 46 components from 17 distinct parts.

Its main chip is the raspberrypi-pico-module, from the RP2040/RP2350 family. Other key parts include the OLED-I2C-Module-Aliexpress and AT24CS08-XHM. By type, the board carries 19 resistors, 7 connectors, 6 capacitors, 4 jumpers, 4 switches and 3 ICs.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

Open-source hardware breakout board for a basic RP2040 Raspberry Pi Pico module

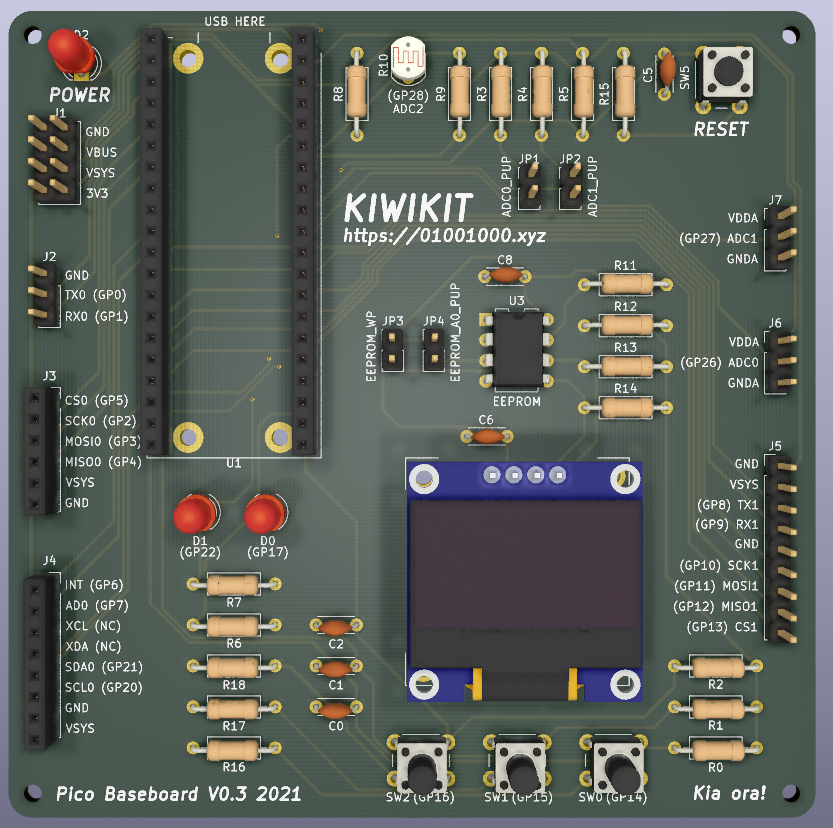

This board provides an easy-to-solder all-throughole 10cm x 10cm 2-layer board which is used in conjunction with a Raspberry Pi Pico for basic, fun experimentation!

Features include: Three general purpose buttons and a reset button, Two general purpose LEDs and a power LED, An I2C SSD1306 Screen, An I2C AT24 EEPROM An LDR for Analog experimentation, And a bunch more expansion ports, two of which are arranged to work with cheap SD card and accelerometer modules!

Kiwikit rpi pico, from the project README
From the project README

Main components on the Kiwikit rpi pico

raspberrypi-pico-moduleOLED-I2C-Module-AliexpressAT24CS08-XHM

Kiwikit rpi pico bill of materials (BOM)

46 components, 17 distinct parts.

QtyPartRefs
1
raspberrypi-pico-module
U1
1
OLED-I2C-Module-Aliexpress
U2
1
AT24CS08-XHM
U3
1
Conn_02x04_Odd_Even
J1
3
Conn_01x03
J2, J6, J7
1
Conn_01x06
J3
1
Conn_01x08
J4
1
Conn_01x09
J5
4
Jumper
JP1, JP2, JP3, JP4
3
SW_Push
SW0, SW1, SW2
1
SW_Push
SW5
3
LED
D0, D1, D2
6
100nF
C0, C1, C2, C5, C6, C8
11
10K
R0, R1, R2, R3, R4, R5, R9, R11 +3
3
330
R6, R7, R8
1
5-10K
R10
4
100
R15, R16, R17, R18

Kiwikit rpi pico design files

The KiCad project lives in the kiwih/kiwikit-pico-baseboard repository on GitHub; these links point at the commit this page was built from.

Kiwikit rpi pico: common questions

What microcontroller does the Kiwikit rpi pico use?

The Kiwikit rpi pico is built around the raspberrypi-pico-module, from the RP2040/RP2350 family.

How big is the Kiwikit rpi pico PCB?

The Kiwikit rpi pico measures 100 × 100 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Kiwikit rpi pico?

46 components, from 17 distinct parts. The full bill of materials is listed on this page.

Where can I download the Kiwikit rpi pico design files?

From the kiwih/kiwikit-pico-baseboard repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Kiwikit rpi pico design in my own project?

Yes, under the terms of its MIT license, which kiwih chose for the repository.

Can I test firmware for the Kiwikit rpi pico without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
