SensorHub PCB layout, top view — open source PIC board by komoro13
Simulate this board

About the SensorHub PCB

SensorHub is an open source PIC PCB design by komoro13, published on GitHub. It is a 2-layer board, with 130 components from 55 distinct parts.

Its main chip is the PIC32MZ2048EFM144-I/PL, from the PIC family. Other key parts include the LM2671M-5.0/NOPB, LM2671M-3.3/NOPB, LM2671M-12/NOPB, ATWINC1510-MR210PB and DP83848MPHPEP. By type, the board carries 52 capacitors, 35 resistors, 9 ICs, 8 connectors, 7 diodes and 5 inductors.

It belongs with the sensors designs in this gallery.

From the project

Modular embedded sensor acquisition and telemetry platform with custom hardware, multi-sensor interfaces, and network connectivity.

Modular embedded sensor acquisition and communications platform designed for multi-sensor monitoring, signal processing, and remote telemetry.

SensorHub is an ongoing embedded systems project focused on designing a centralized platform capable of acquiring data from multiple industrial sensors, processing and validating those measurements, and providing a foundation for local and remote monitoring.

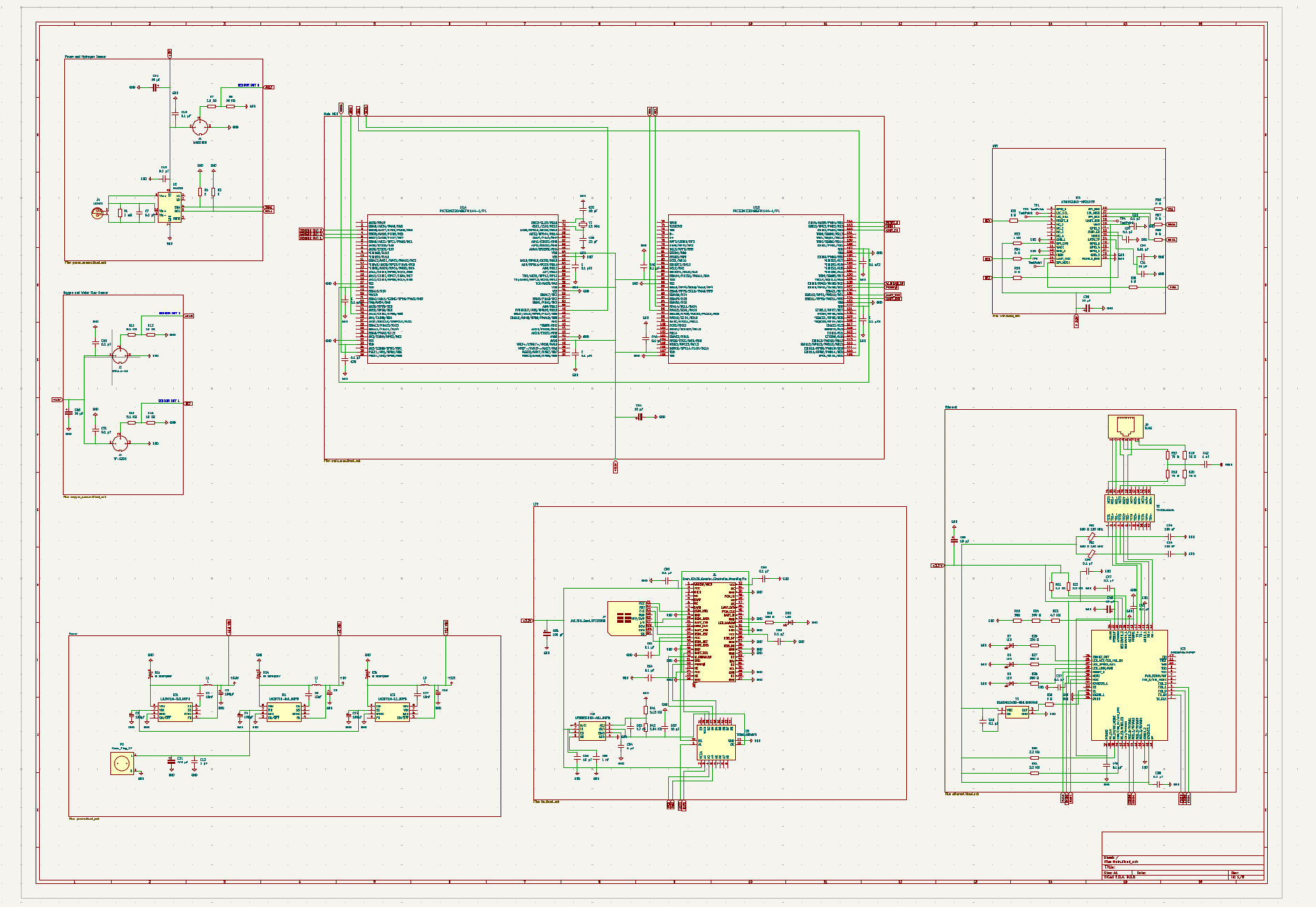

SensorHub, from the project README
From the project README

Main components on the SensorHub

SensorHub bill of materials (BOM)

130 components, 55 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
LM2671M-5.0/NOPB
LM2671M-5.0_NOPB
IC1
1
LM2671M-3.3/NOPB
LM2671M-3.3_NOPB
IC2
1
LM2671M-12/NOPB
LM2671M-12_NOPB
IC3
1
ATWINC1510-MR210PB
IC4
1
DP83848MPHPEP
IC5
1
LP38852MRX-ADJ/NOPB
LP38852MRX-ADJ_NOPB
IC6
1
TXB0108RGYR
IC8
1
PIC32MZ2048EFM144-I/PL
U1
1
INA226
U2
1
PMOS
Q1
1
DSA6101CA3B-050.0000VAO
Y1
1
12 MHz
Y2
1
ΑΗΙ6200Η
J1
1
WIKA A-10
J2
1
YF-S201
J3
1
LEMO2
J4
1
Conn_02x26_Counter_Clockwise_MountingPin
J5
1
RJ45
J6
1
JAE_SIM_Card_SF72S006
J7
1
Conn_Plug_2P
P1
Show 35 more
QtyPartRefs
5
C
0.1 pF1, 0.1 pF2, 0.1 μF1, 0.1 μF2, 0.1 μF3
1
Fuse
F1
1
TM82440ANL
T2
4
TestPoint
TP1, TP2, TP3, TP4
3
IR 30WQ05F
D1, D2, D3
4
LED
D7, D8, D9, D10
2
600 Ω 100 MHz
FB1, FB2
3
L
L1, L2, L3
6
100μF
C1, C2, C4, C6, C16, C18
3
10nF
C3, C5, C17
22
0.1 μF
C7, C10, C13, C15, C31, C35, C36, C37 +14
1
470 μF
C11
2
1 μF
C12, C54
9
10 μF
C14, C34, C38, C46, C51, C53, C55, C59 +1
2
22 pF
C32, C33
2
1 nF
C42, C56
2
100 nF
C43, C44
1
0.01 μF
C50
1
4.7 nF
C52
1
100 μF
C65
1
2 mΩ
R1
2
R
R2, R3
1
3.6 KΩ
R7
3
10 KΩ
R8, R12, R16
2
5.1 KΩ
R11, R15
4
75 Ω
R17, R18, R19, R20
4
2.2 KΩ
R21, R22, R30, R31
1
4.7 KΩ
R23
1
150 Ω
R24
1
18Ω
R25
4
330 Ω
R26, R27, R28, R40
8
0 Ω
R29, R32, R34, R35, R36, R37, R38, R39
1
1 MΩ
R33
1
1.13 KΩ
R41
1
2.94 ΚΩ
R42
