About the KiCadLogicalSchemeSimulator PCB
KiCadLogicalSchemeSimulator is an open source PCB design by kopavel, published on GitHub under the GPL-3.0 license. It is a board, with 73 components from 33 distinct parts.
Other key parts include the 4011 and 4023. By type, the board carries 2 ICs and 1 microphone.
It belongs with the retro computing designs in this gallery.
From the project
KiCad-drawn logical scheme simulator.
Simulator doesn't support any analog schema elements, so video and audio tape circuits cutted off. For proper simulation ROM dumps needed. Gradle task got it from public resources: BIOS: https://github.com/RetroStack/TRS-80-Model-I-System-ROMs CharGen: https://github.com/RetroStack/CharacterGeneratorROMs

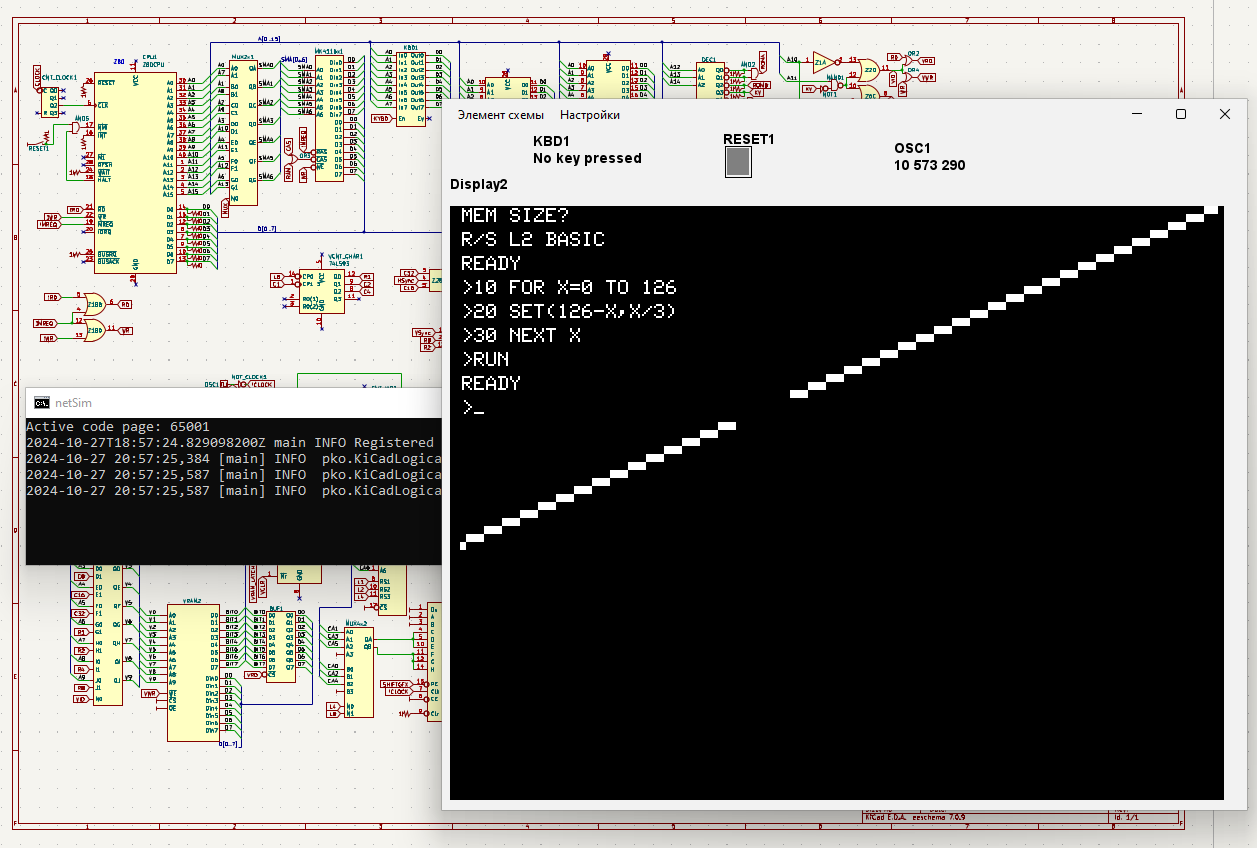

On an Intel i7-3770s processor, this schema achieved almost realtime speed.
Main components on the KiCadLogicalSchemeSimulator
KiCadLogicalSchemeSimulator bill of materials (BOM)
73 components, 33 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 4011 | U1 | |
| 1 | 4023 | U6 | |
| 5 | AND | 4AND1, AND1, AND2, AND3, AND5 | |
| 2 | 2764 | DIP-28_W15.24mm | BIOS1, BIOS2 |
| 1 | BUF | BUF1 | |
| 1 | MCM6670 | CHAR_GEN2 | |
| 4 | CNT | CNT_CLOCK1, VCNT_CHAR2, VCNT_CHAR_LINE1, VCNT_ROW1 | |
| 1 | 74LS92 | DIP-14_W7.62mm | CNT_VID1 |
| 1 | Z80CPU | DIP-40_W15.24mm | CPU1 |
| 1 | decode_3_bit | DEC1 | |
| 3 | ~ | Display2, KBD1, VRAM2 | |
| 2 | 74LS166 | DIP-16_W7.62mm | GFX_SHFT2, TXT_SHFT2 |
| 1 | MK4116x8 | MK4116x1 | |
| 1 | MUX2x7 | MUX2x1 | |
| 1 | MUX | MUX4x2 | |
| 1 | MUX2x10 | MUX_VRAM1 | |
| 1 | NAND | NAND1 | |
| 1 | NOR | NOR1 | |
| 2 | NOT | NOT1, NOT_CLOCK1 | |
| 4 | OR | OR1, OR2, OR3, OR4 |
Show 13 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | OSC | OSC1 | |
| 1 | SWITCH | SW_CW_GPTS203211B | RESET1 |
| 1 | 74LS93 | DIP-14_W7.62mm | VCNT_CHAR1 |
| 1 | 74LS174 | DIP-16_W7.62mm | VRAM_BUF2 |
| 1 | 74LS04 | DIP-14_W7.62mm | Z1 |
| 3 | 74LS32 | DIP-14_W7.62mm | Z2, Z6, Z18 |
| 1 | 74LS00 | DIP-14_W7.62mm | Z7 |
| 3 | 74LS74 | DIP-14_W7.62mm | Z8, Z9, Z31 |
| 1 | 74LS11 | DIP-14_W7.62mm | Z28 |
| 1 | 74LS175 | DIP-16_W7.62mm | Z32 |
| 1 | 74LS20 | DIP-14_W7.62mm | Z33 |
| 8 | pull_down | pulldown1, pulldown2, pulldown3, pulldown4, pulldown5, pulldown6, pulldown7, pulldown8 | |
| 15 | pull_up | pullup1, pullup2, pullup3, pullup4, pullup5, pullup6, pullup7, pullup8 +7 |
KiCadLogicalSchemeSimulator design files
The KiCad project lives in the kopavel/KiCadLogicalSchemeSimulator repository on GitHub; these links point at the commit this page was built from.
KiCadLogicalSchemeSimulator: common questions
How many components are on the KiCadLogicalSchemeSimulator?
73 components, from 33 distinct parts. The full bill of materials is listed on this page.
Where can I download the KiCadLogicalSchemeSimulator design files?
From the kopavel/KiCadLogicalSchemeSimulator repository on GitHub, which has the schematic and a netlist; the links under Design files point to each one.
Can I use the KiCadLogicalSchemeSimulator design in my own project?
Yes, under the terms of its GPL-3.0 license, which kopavel chose for the repository.
