TemperatureManagementGUI PCB layout, top view — open source Raspberry Pi board by KozaMateusz

About the TemperatureManagementGUI PCB

TemperatureManagementGUI is an open source Raspberry Pi PCB design by KozaMateusz, published on GitHub. It is a 2-layer board measuring 65 × 56 mm, with 25 components from 15 distinct parts.

Its main chip is the MIC5245-3.3, from the Raspberry Pi family. Other key parts include the LTV-817S and MAX31865. By type, the board carries 5 capacitors, 5 resistors, 4 ICs, 4 connectors, 4 diodes and 2 transistors.

It belongs with the sensors and dev boards & breakouts designs in this gallery.

From the project

Graphical user interface to controll the temperature in a chamber.

All code is released under the MIT License.

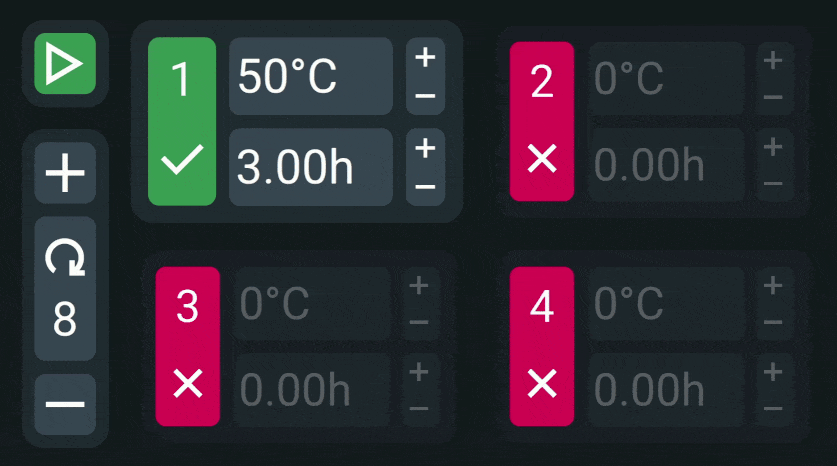

TemperatureManagementGUI, from the project README
From the project README

Main components on the TemperatureManagementGUI

LTV-817SMIC5245-3.3MAX31865

TemperatureManagementGUI bill of materials (BOM)

25 components, 15 distinct parts — part numbers from the project's BOM.

QtyPartRefs
2
LTV-817S
U1, U2
1
MIC5245-3.3
U3
1
MAX31865
U4
2
S8050
Q1, Q2
2
Screw Terminal x2
J1, J2
1
Screw Terminal x3
J3
1
OX40HAT
J4
1
Fuse
F1
2
LED
D1, D3
2
LL4148
D2, D4
3
0.1uF
C1, C3, C5
2
10uF
C2, C4
2
180
R1, R3
2
510
R2, R4
1
430, 0.1%
R5

TemperatureManagementGUI design files

The KiCad project lives in the KozaMateusz/TemperatureManagementGUI repository on GitHub; these links point at the commit this page was built from.

TemperatureManagementGUI: common questions

What microcontroller does the TemperatureManagementGUI use?

The TemperatureManagementGUI is built around the MIC5245-3.3, from the Raspberry Pi family.

How big is the TemperatureManagementGUI PCB?

The TemperatureManagementGUI measures 65 × 56 mm, has 2 copper layers and is 1.53 mm thick.

How many components are on the TemperatureManagementGUI?

25 components, from 15 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the TemperatureManagementGUI design files?

From the KozaMateusz/TemperatureManagementGUI repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the TemperatureManagementGUI design in my own project?

The repository has no license, so all rights stay with KozaMateusz. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the TemperatureManagementGUI without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Raspberry Pi firmware against it before you order a PCB.
