USB-C-Advanced-Power-Supply PCB layout, top view — open source board by Kraad25

About the USB-C-Advanced-Power-Supply PCB

USB-C-Advanced-Power-Supply is an open source PCB design by Kraad25, published on GitHub. It is a 4-layer board measuring 50 × 32 mm, with 35 components from 14 distinct parts.

Other key parts include the CH224A and MKDSN 1,5/ 2-5,08. By type, the board carries 11 resistors, 9 capacitors, 6 LEDs, 2 ICs, 2 diodes and 1 transistor.

It belongs with the power & battery designs in this gallery.

From the project

USB-C PD trigger board (CH224A) — KiCad schematic and PCB layout, selectable 5/9/12/20/28V output

USB-C PD sink board using the CH224A to negotiate a fixed output voltage, selectable via DIP switch, with LED indication of the negotiated voltage.

Designed in KiCad while following Robert Feranec's video: https://www.youtube.com/watch?v=W0bmmF1wTEs

Schematic follows his walkthrough. Parts were sourced from LCSC and converted from EasyEDA to KiCad using easyeda2kicad, since I'm working in KiCad rather than EasyEDA. Layout and routing done independently.

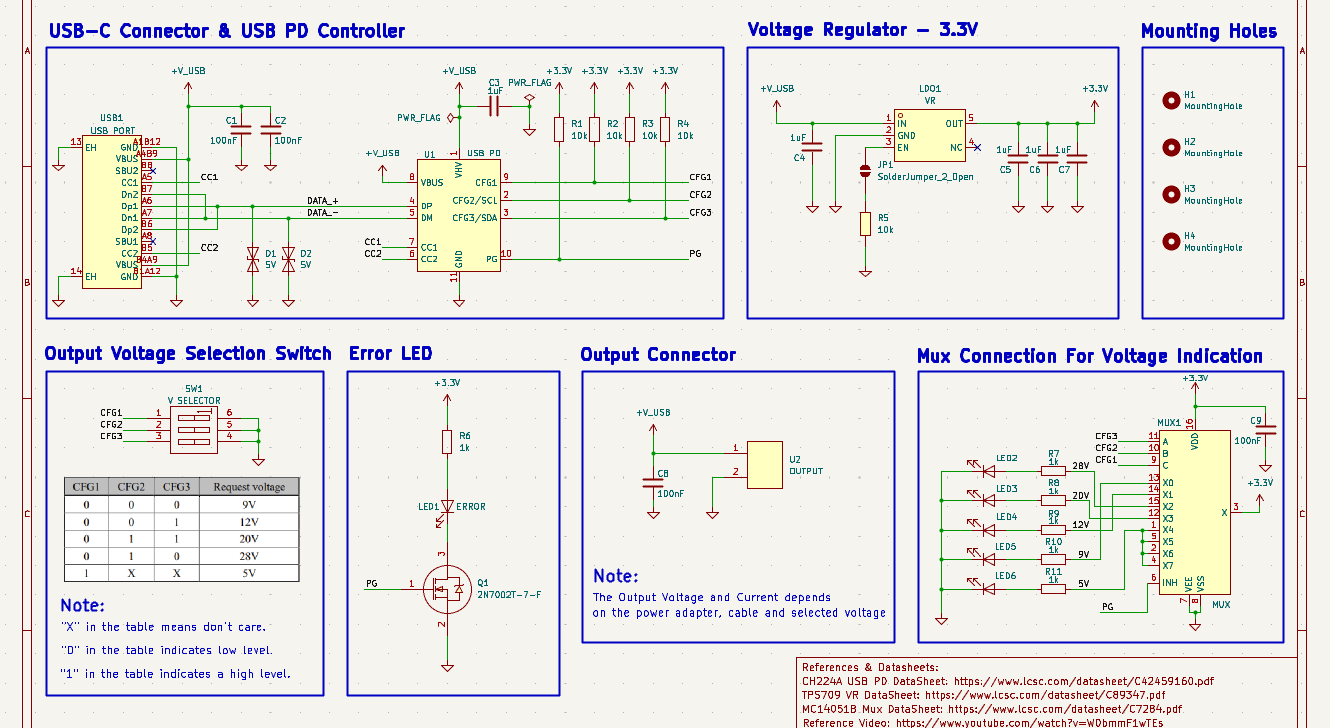

USB-C-Advanced-Power-Supply, from the project README
From the project README

Main components on the USB-C-Advanced-Power-Supply

CH224AMKDSN 1,5/ 2-5,08

USB-C-Advanced-Power-Supply bill of materials (BOM)

35 components, 14 distinct parts.

QtyPartRefs
1
CH224A
USB PD
WCH(南京沁恒)
U1
1
MKDSN 1,5/ 2-5,08
OUTPUT
Phoenix Contact(菲尼克斯)
U2
1
2N7002T-7-F
DIODES(美台)
Q1
1
TPS70933DBVR
VR
TI(德州仪器)
LDO1
1
MC14051BDR2G
MUX
onsemi(安森美)
MUX1
1
DSHP03TS-S
V SELECTOR
XKB Connection(中国星坤)
SW1
1
TYPE-C 16PIN 2MD(073)
USB PORT
SHOU HAN(首韩)
USB1
1
KT-0805R
ERROR
KENTO
LED1
5
KT-0805G
0805G
KENTO
LED2, LED3, LED4, LED5, LED6
2
GG0402052R542P
5V
Kyocera AVX
D1, D2
4
CL05B104KB54PNC
100nF
SAMSUNG(三星)
C1, C2, C8, C9
5
CL10B105KB8NQNC
1uF
SAMSUNG(三星)
C3, C4, C5, C6, C7
5
0402WGF1002TCE
10k
UNI-ROYAL(厚声)
R1, R2, R3, R4, R5
6
0402WGF1001TCE
1k
UNI-ROYAL(厚声)
R6, R7, R8, R9, R10, R11

USB-C-Advanced-Power-Supply design files

The KiCad project lives in the Kraad25/USB-C-Advanced-Power-Supply repository on GitHub; these links point at the commit this page was built from.

USB-C-Advanced-Power-Supply: common questions

How big is the USB-C-Advanced-Power-Supply PCB?

The USB-C-Advanced-Power-Supply measures 50 × 32 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the USB-C-Advanced-Power-Supply?

35 components, from 14 distinct parts. The full bill of materials is listed on this page.

Where can I download the USB-C-Advanced-Power-Supply design files?

From the Kraad25/USB-C-Advanced-Power-Supply repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the USB-C-Advanced-Power-Supply design in my own project?

The repository has no license, so all rights stay with Kraad25. Use it as a reference, and ask the author before reusing the design.
