Z80 YM2151 PCB layout, top view — open source AVR/Arduino board by kuninet

About the Z80 YM2151 PCB

Z80 YM2151 is an open source AVR/Arduino PCB design by kuninet, published on GitHub under the MIT license. It is a 2-layer board measuring 100 × 75 mm, with 36 components from 24 distinct parts.

Its main chip is the Arduino_1pin, from the AVR/Arduino family. Other key parts include the YM2151, YM3012, LMC6484 and 74LS138. By type, the board carries 11 capacitors, 9 connectors, 5 jumpers, 5 resistors, 4 ICs and 1 transistor.

It belongs with the retro computing designs in this gallery.

From the project

KZ80-CPUB、SBC8080用 YM2151(FM音源)アダプターボードプロジェクト

- SBC8080バスにつながるFM音源ボード KZ80-YM2151 のデータ類です。 - 詳しい説明は以下のwikiを参照してください。 - https://github.com/kuninet/Z80_YM2151/wiki

- 部品表は以下にあります。 - https://github.com/kuninet/Z80_YM2151/blob/master/KiCAD/YM2151.ods

- Z80用演奏プログラムとサンプルデータはsamplemusicディレクトリにあります。 - サンプル音楽は参考リンクの音楽データをもとに作成させていただきました。 - 起動方法 1. samplemusic/hexFilesの以下のインテルHex形式ファイルを機械語モニタ等でロード - KZ80YM2151.hex (8100h番地〜) - samplem.hex (9000h番地〜) 2. 8100番地から実行してください。

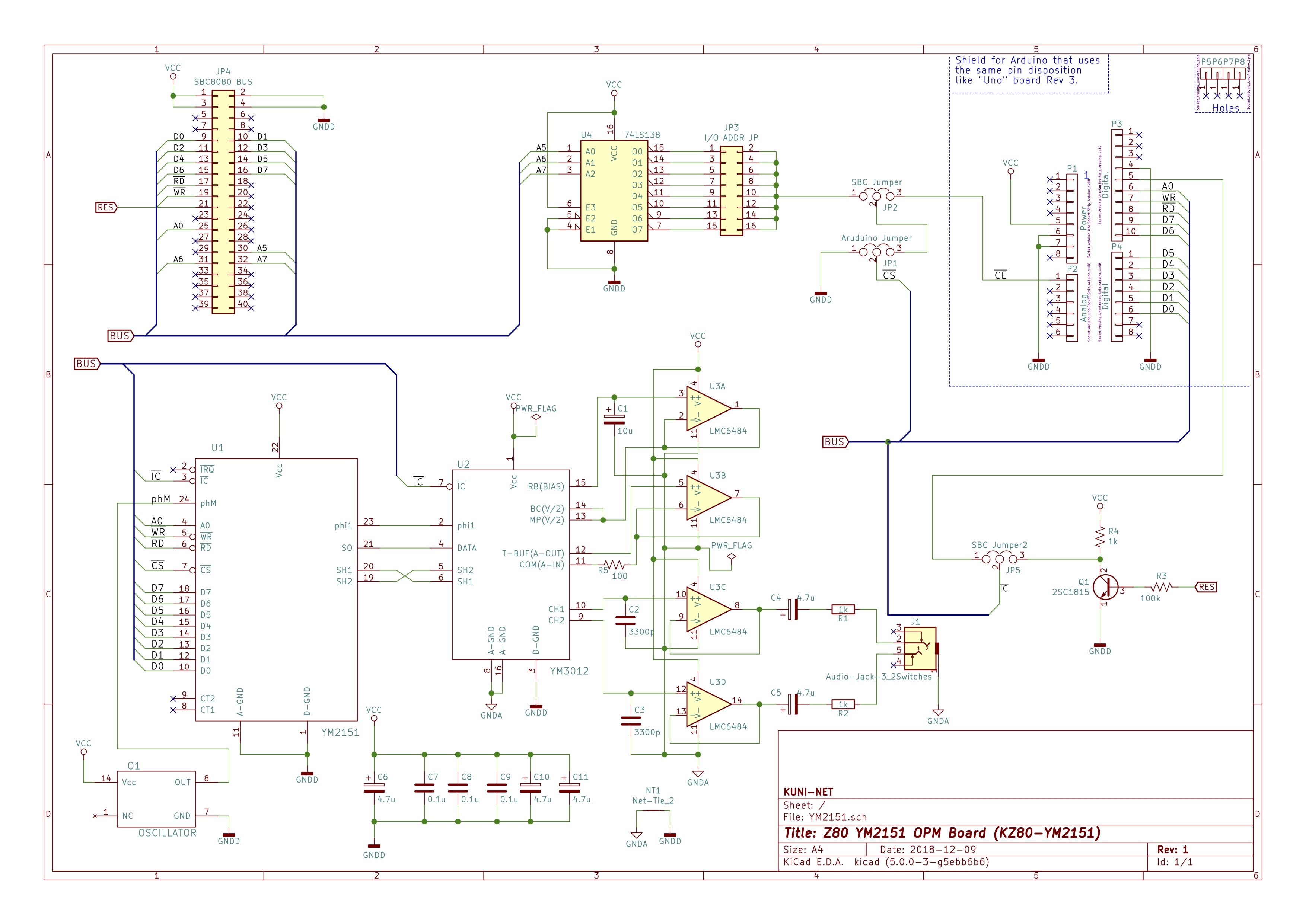

Z80 YM2151, from the project README
From the project README

Main components on the Z80 YM2151

YM2151YM3012LMC648474LS138

Z80 YM2151 bill of materials (BOM)

36 components, 24 distinct parts.

QtyPartRefs
1
YM2151
U1
1
YM3012
U2
1
LMC6484
U3
1
74LS138
U4
1
2SC1815
Q1
1
Audio-Jack-3_2Switches
J1
1
Power
P1
1
Analog
P2
1
Digital
P3
1
Digital
P4
4
CONN_01X01
P5, P6, P7, P8
1
Aruduino Jumper
JP1
1
SBC Jumper
JP2
1
I/O ADDR JP
JP3
1
SBC8080 BUS
JP4
1
SBC Jumper2
JP5
1
OSCILLATOR
O1
1
10u
C1
2
3300p
C2, C3
5
4.7u
C4, C5, C6, C10, C11
Show 4 more
QtyPartRefs
3
0.1u
C7, C8, C9
3
1k
R1, R2, R4
1
100k
R3
1
100
R5

Z80 YM2151 design files

The KiCad project lives in the kuninet/Z80_YM2151 repository on GitHub; these links point at the commit this page was built from.

Z80 YM2151: common questions

What microcontroller does the Z80 YM2151 use?

The Z80 YM2151 is built around the Arduino_1pin, from the AVR/Arduino family.

How big is the Z80 YM2151 PCB?

The Z80 YM2151 measures 100 × 75 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Z80 YM2151?

36 components, from 24 distinct parts. The full bill of materials is listed on this page.

Where can I download the Z80 YM2151 design files?

From the kuninet/Z80_YM2151 repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Z80 YM2151 design in my own project?

Yes, under the terms of its MIT license, which kuninet chose for the repository.
