PixFrog Shield

Lefix2·pixfrog·hardware/pixfrog_shield/PixFrog_Shield.kicad_pcb

PixFrog Shield layout, top view — open source board by Lefix2

About the PixFrog Shield

PixFrog Shield is an open source PCB design by Lefix2, published on GitHub under the MIT license. It is a 2-layer board measuring 88.5 × 65 mm, with 65 components from 11 distinct parts.

Other key parts include the 74HCT245. By type, the board carries 32 resistors, 16 diodes, 10 connectors, 3 capacitors, 2 ICs and 2 switches.

It belongs with the dev boards & breakouts and displays & leds designs in this gallery.

From the project

Professional Art-Net pixel controller and dmx node — eight parallel channels, configured locally

The board half of pixfrograck; the meca* half is the 1U enclosure it stacks into.

KiCad 10 project for the signal-adaptation shield that plugs onto the ESP32-P4 Module DEV-KIT's 2×20 header (J1). It closes the gap identified in the TODO ("output buffers"): the devkit drives the LED bus straight from 3.3 V GPIOs, which is marginal for 12 V strips (WS2815) over real cable runs and leaves the SoC exposed to field wiring.

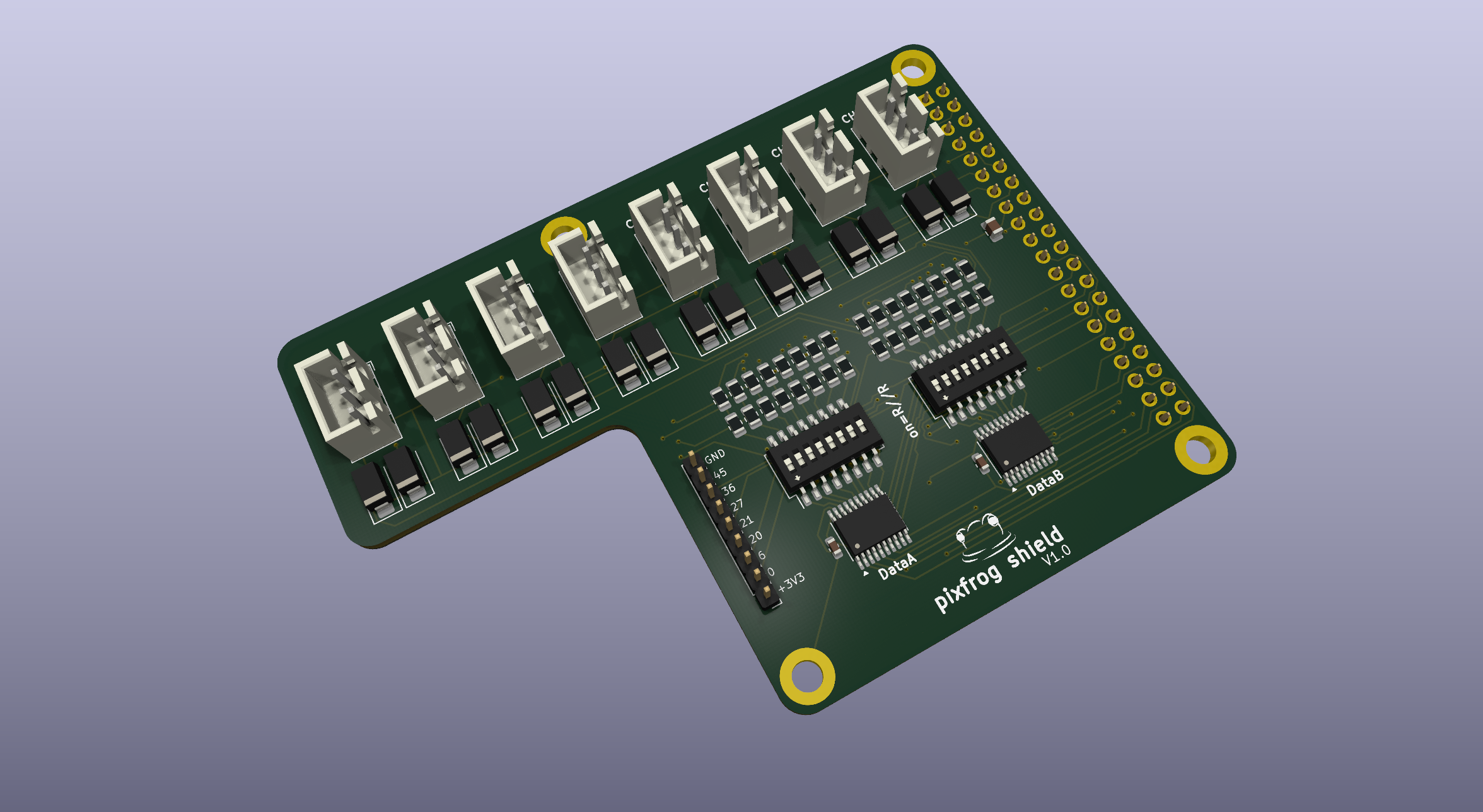

PixFrog Shield, from the project README
From the project README

Main components on the PixFrog Shield

74HCT245

PixFrog Shield bill of materials (BOM)

65 components, 11 distinct parts — part numbers from the project's BOM.

QtyPartRefs
2
74HCT245
U1, U2
1
CONN_02X20
Conn_02x20
J1
8
CONN_01X04
Conn_01x04
J2, J3, J4, J5, J6, J7, J8, J9
1
CONN_01X09
Conn_01x09
J13
2
SW_DIP_08
SW1, SW2
16
5.0V
D1, D2, D3, D4, D5, D6, D7, D8 +8
2
100NF
100nF
C1, C2
1
10UF
10uF
C3
8
249
R1, R2, R3, R4, R5, R6, R7, R8
16
39
R9, R10, R11, R12, R13, R14, R15, R16 +8
8
33
R17, R18, R19, R20, R21, R22, R23, R24

PixFrog Shield design files

The KiCad project lives in the Lefix2/pixfrog repository on GitHub; these links point at the commit this page was built from.

PixFrog Shield: common questions

How big is the PixFrog Shield?

The PixFrog Shield measures 88.5 × 65 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the PixFrog Shield?

65 components, from 11 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the PixFrog Shield design files?

From the Lefix2/pixfrog repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the PixFrog Shield design in my own project?

Yes, under the terms of its MIT license, which Lefix2 chose for the repository.
