HalfLife-Week1 PCB layout, top view — open source RP2040/RP2350 board by Len0v0CZ

About the HalfLife-Week1 PCB

HalfLife-Week1 is an open source RP2040/RP2350 PCB design by Len0v0CZ, published on GitHub. It is a 2-layer board measuring 69 × 88.5 mm, with 5 components from 3 distinct parts.

Its main chip is the RaspberryPi_Pico, from the RP2040/RP2350 family. Other key parts include the KY-040. By type, the board carries 3 switches, 1 IC and 1 module.

From the project

A compact macro keyboard featuring 3 keys and 1 rotary encoder for task automation. ## Components - Raspberry Pi Pico - 3x Mechanical Switches - 1x KY-040 Rotary Encoder - Custom PCB - 3D-printed case (base and lid)

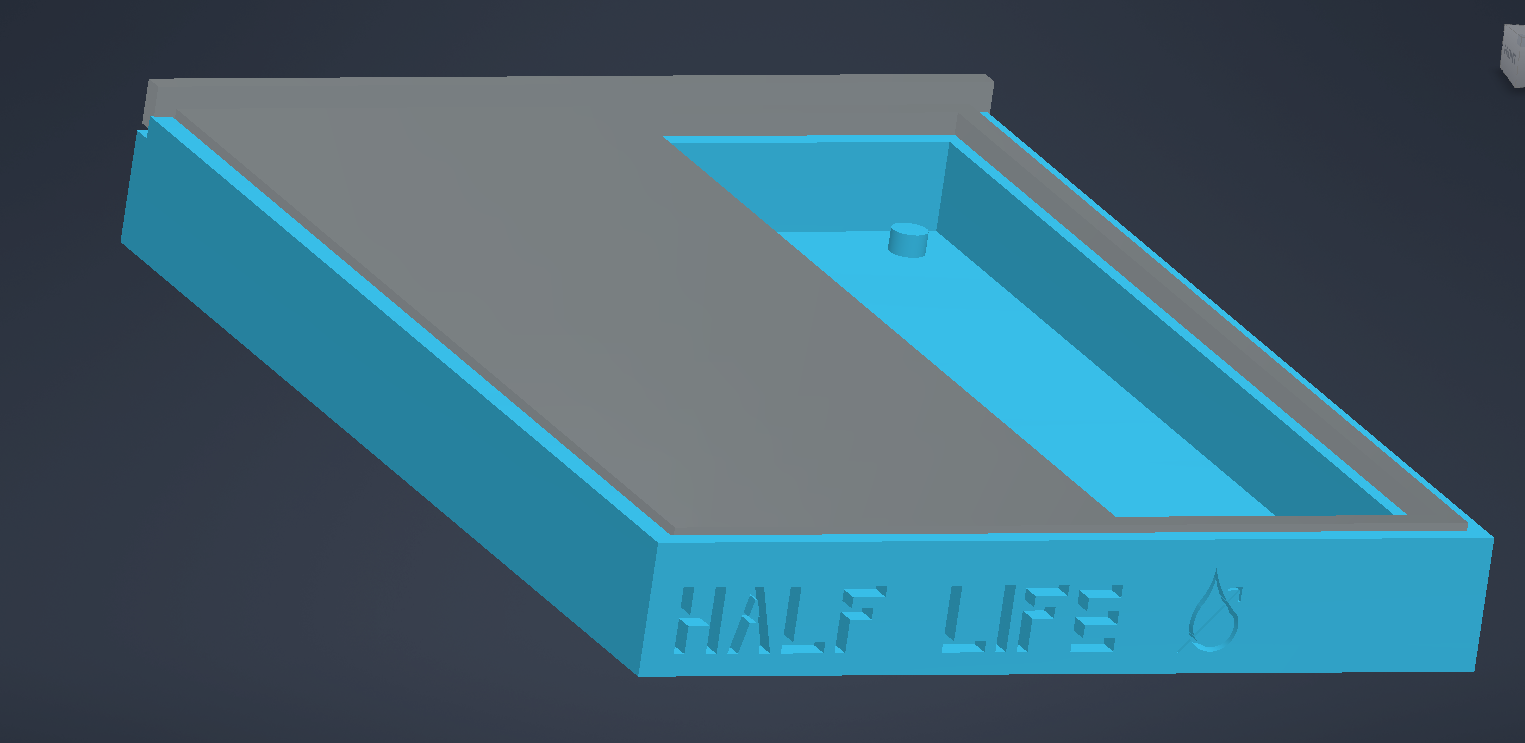

HalfLife-Week1, from the project README
From the project README

Main components on the HalfLife-Week1

KY-040RaspberryPi_Pico

HalfLife-Week1 bill of materials (BOM)

5 components, 3 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
KY-040
U1
1
RaspberryPi_Pico
A1
3
SW_Push
SW2, SW3, SW4

HalfLife-Week1 design files

The KiCad project lives in the Len0v0CZ/HalfLife-Week1 repository on GitHub; these links point at the commit this page was built from.

HalfLife-Week1: common questions

What microcontroller does the HalfLife-Week1 use?

The HalfLife-Week1 is built around the RaspberryPi_Pico, from the RP2040/RP2350 family.

How big is the HalfLife-Week1 PCB?

The HalfLife-Week1 measures 69 × 88.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the HalfLife-Week1?

5 components, from 3 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the HalfLife-Week1 design files?

From the Len0v0CZ/HalfLife-Week1 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the HalfLife-Week1 design in my own project?

The repository has no license, so all rights stay with Len0v0CZ. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the HalfLife-Week1 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
