Eja onboard gateway electronics

leonardoward·eja-onboard-gateway-electronics

Eja onboard gateway electronics PCB layout, top view — open source ESP32 board by leonardoward

About the Eja onboard gateway electronics PCB

Eja onboard gateway electronics is an open source ESP32 PCB design by leonardoward, published on GitHub under the Apache-2.0 license. It is a 2-layer board measuring 134.1 × 62.5 mm, with 21 components from 20 distinct parts.

Its main chip is the ESP32-DEVKITC-32D, from the ESP32 family. Other key parts include the USB_LiIon_LiPoly_Charger_Board and LoRa_RFM95W_Board. By type, the board carries 12 connectors, 6 resistors and 3 ICs.

It belongs with the rf & radio and power & battery designs in this gallery.

From the project

EJA Onboard Gateway - Electronic Design - 2020 Hackaday Dream Team Challenge for Conservation X Labs

EJA Onboard Gateway - Electronic Design - 2020 Hackaday Dream Team Challenge for Conservation X Labs

Onboard Gateway is a 134.11 mm x 62.48 mm PCB that integrates the 3 main components (ESP32, LoRa and USB LiIon/LiPoly charger)

This repository contains the KiCad design for the PCB of the Onboard Gateway. It also contains the 3D models used to visualize the design in the KiCad 3D viewer.

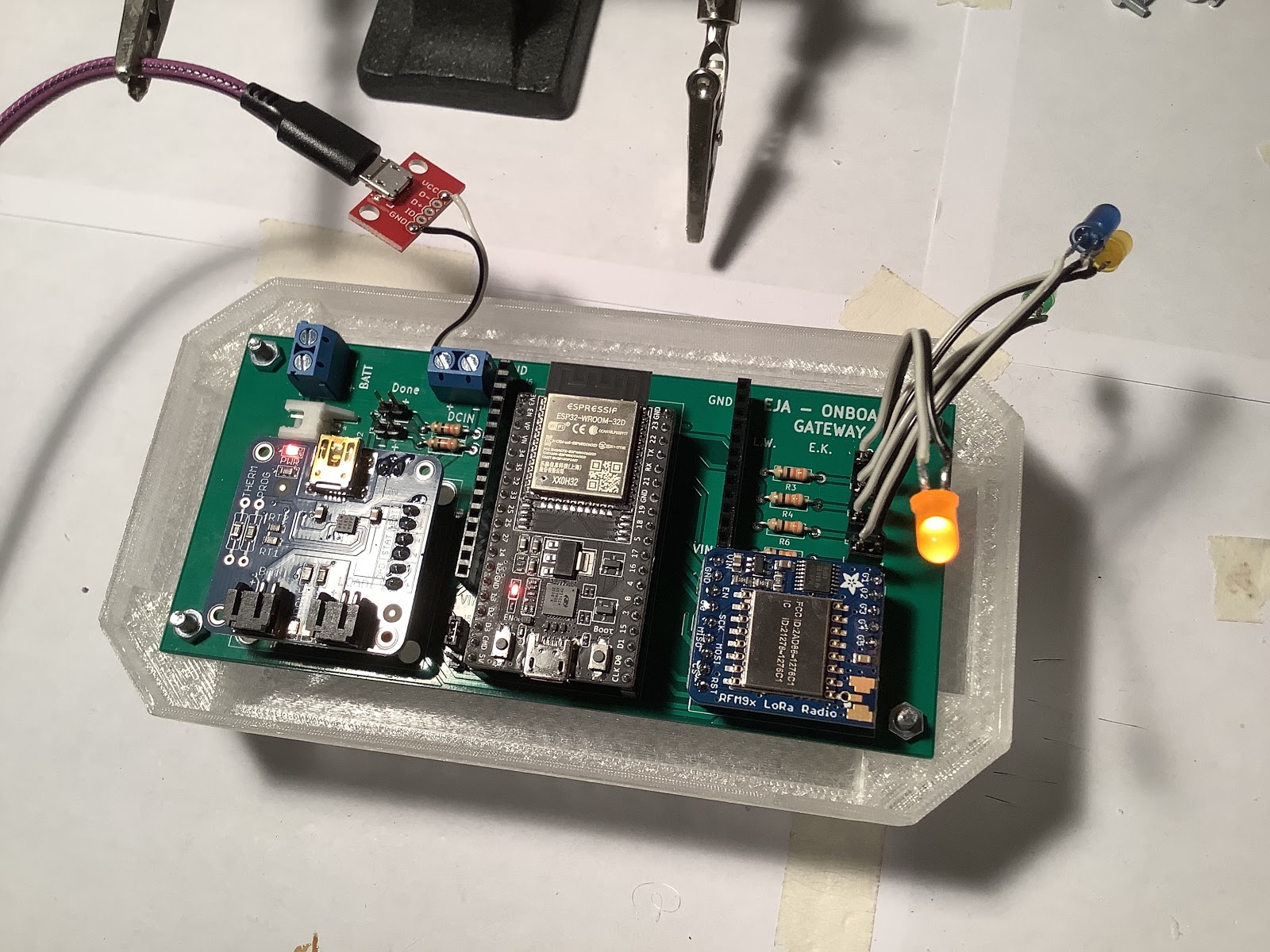

Eja onboard gateway electronics, from the project README
From the project README

Main components on the Eja onboard gateway electronics

USB_LiIon_LiPoly_Charger_BoardESP32-DEVKITC-32DLoRa_RFM95W_Board

Eja onboard gateway electronics bill of materials (BOM)

21 components, 20 distinct parts.

QtyPartRefs
1
USB_LiIon_LiPoly_Charger_Board
U1
1
ESP32-DEVKITC-32D
U2
1
LoRa_RFM95W_Board
U3
1
Conn_DCin
J1
1
Conn_Battery_JST_XH
J2
1
Conn_LED_Charge
J3
1
Conn_LED_Done
J4
1
Conn_VIN_ESP32
J5
1
Conn_Extras_01
J6
1
Conn_Extras_02
J7
1
Conn_Battery_TB
J8
1
Extra_LED_01
J9
1
Extra_LED_02
J10
1
Extra_LED_03
J11
1
Extra_LED_04
J12
2
1K
R1, R2
1
R_Led01
R3
1
R_Led02
R4
1
R_Led03
R5
1
R_Led04
R6

Eja onboard gateway electronics design files

The KiCad project lives in the leonardoward/eja-onboard-gateway-electronics repository on GitHub; these links point at the commit this page was built from.

Eja onboard gateway electronics: common questions

What microcontroller does the Eja onboard gateway electronics use?

The Eja onboard gateway electronics is built around the ESP32-DEVKITC-32D, from the ESP32 family.

How big is the Eja onboard gateway electronics PCB?

The Eja onboard gateway electronics measures 134.1 × 62.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Eja onboard gateway electronics?

21 components, from 20 distinct parts. The full bill of materials is listed on this page.

Where can I download the Eja onboard gateway electronics design files?

From the leonardoward/eja-onboard-gateway-electronics repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Eja onboard gateway electronics design in my own project?

Yes, under the terms of its Apache-2.0 license, which leonardoward chose for the repository.

Can I test firmware for the Eja onboard gateway electronics without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
