WonderTANG
About the WonderTANG PCB
WonderTANG is an open source PCB design by lfantoniosi, published on GitHub under the BSD-2-Clause license. It is a 2-layer board measuring 101.6 × 89.5 mm, with 28 components from 14 distinct parts.
Other key parts include the SN74LVC245AN and Tang_Nano_20k. By type, the board carries 11 capacitors, 6 ICs, 4 resistors, 3 connectors, 2 transistors and 2 diodes.
It belongs with the retro computing and audio designs in this gallery.
From the project
TangNano 20K cartridge for MSX computers
https://github.com/lfantoniosi/new-juice

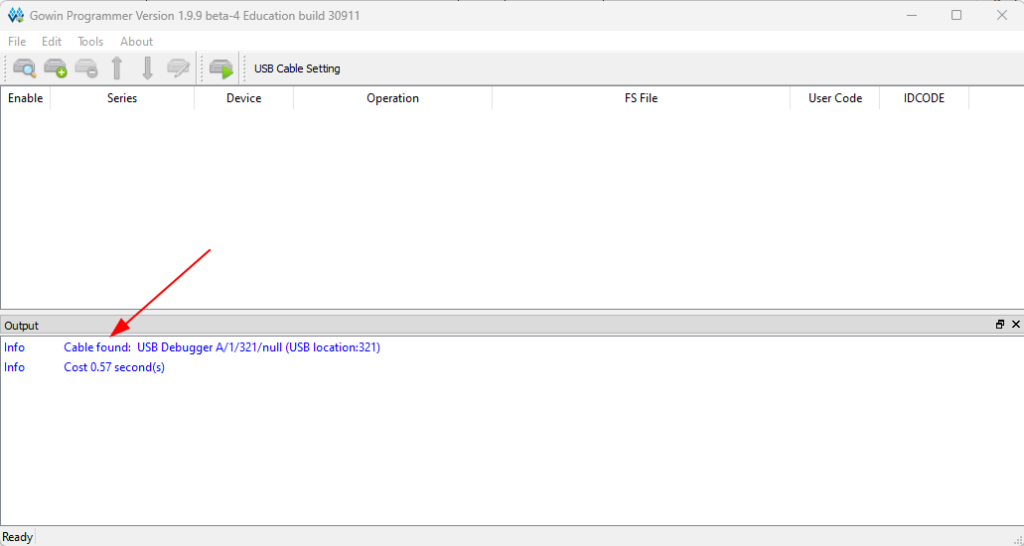

This cartridge allows any MSX computer to host a Sipeed Tang Nano 20K. The current fpga core implements:
- MicroSD Nextor 2.1 Drive - FM OPLL + MSX Music ROM - 2MB Super Mega RAM SCC+ - 4MB Memory Mapper - Sega Master System VDP + PSG to allow running SMS roms from SofaRun (Franky HDMI)
The Super Mega RAM SCC+ is a different ACVS-like MegaRam that support different mappers:
Main components on the WonderTANG
WonderTANG bill of materials (BOM)
28 components, 14 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 5 | SN74LVC245AN | DIP-20_W7.62mm_LongPads | U1, U2, U3, U4, U6 |
| 1 | Tang_Nano_20k | Tang_Nano_20k_Audio | U5 |
| 2 | 2N3904 | TO-92_Inline_Wide | Q1, Q2 |
| 1 | MSX-CONNECTOR | CARTRIDGE_MSX_NOCUT | CON1 |
| 1 | AudioJack3 | SJ1-3523N | J2 |
| 1 | AUDIO | PinHeader_2x01_P2.54mm_Vertical | J3 |
| 1 | uSD | LED_D3.0mm | D1 |
| 1 | 1N5817 | D_DO-41_SOD81_P10.16mm_Horizontal | D2 |
| 2 | 4.7u | CP_Radial_D5.0mm_P2.50mm | C1, C2 |
| 8 | 104 | C_Disc_D5.0mm_W2.5mm_P2.50mm | C5, C6, C7, C8, C9, C10, C11, C12 |
| 1 | 10uF | CP_Radial_D5.0mm_P2.00mm | C13 |
| 1 | 330 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R1 |
| 1 | 4.7k | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R4 |
| 2 | 2.2K | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R5, R6 |
WonderTANG design files
The KiCad project lives in the lfantoniosi/WonderTANG repository on GitHub; these links point at the commit this page was built from.
- Layoutkicad/WonrderTANG.kicad_pcb
- Schematickicad/WonrderTANG.kicad_sch
WonderTANG: common questions
How big is the WonderTANG PCB?
The WonderTANG measures 101.6 × 89.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the WonderTANG?
28 components, from 14 distinct parts. The full bill of materials is listed on this page.
Where can I download the WonderTANG design files?
From the lfantoniosi/WonderTANG repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the WonderTANG design in my own project?
Yes, under the terms of its BSD-2-Clause license, which lfantoniosi chose for the repository.
