Micromouse-Lula and-Rejoice PCB layout, top view — open source board by LlamaLuLu

About the Micromouse-Lula and-Rejoice PCB

Micromouse-Lula and-Rejoice is an open source PCB design by LlamaLuLu, published on GitHub. It is a 2-layer board measuring 82 × 60 mm, with 65 components from 43 distinct parts.

Other key parts include the DRV8833PWPR, TPS62067DSGR, INA219AIDCNR, TPS61088RHLR and HUSB237-AA001-DN06R. By type, the board carries 25 resistors, 21 capacitors, 7 ICs, 5 transistors, 3 inductors and 2 LEDs.

It belongs with the robotics & motion and power & battery designs in this gallery.

From the project

Our Micromouse power subsystem for the Design course EEE3088F

- Must interface with shared motherboard via 2×16 pin header - All subsystems must interoperate safely and reliably - Total cost must not exceed $28.25 per student - Designed with PCB production in mind (JLCPCB compatible)

The final PCB submission is in a zipped folder: Final PCB Files

ZIP File Includes: 1. Zipped Gerber files (with silkscreen including group & student numbers) 2. BOM .csv file 3. POS/CPL .csv file 4. Screenshot of JLCPCB BOM upload page 5. Screenshot of JLCPCB Add to Cart confirmation page

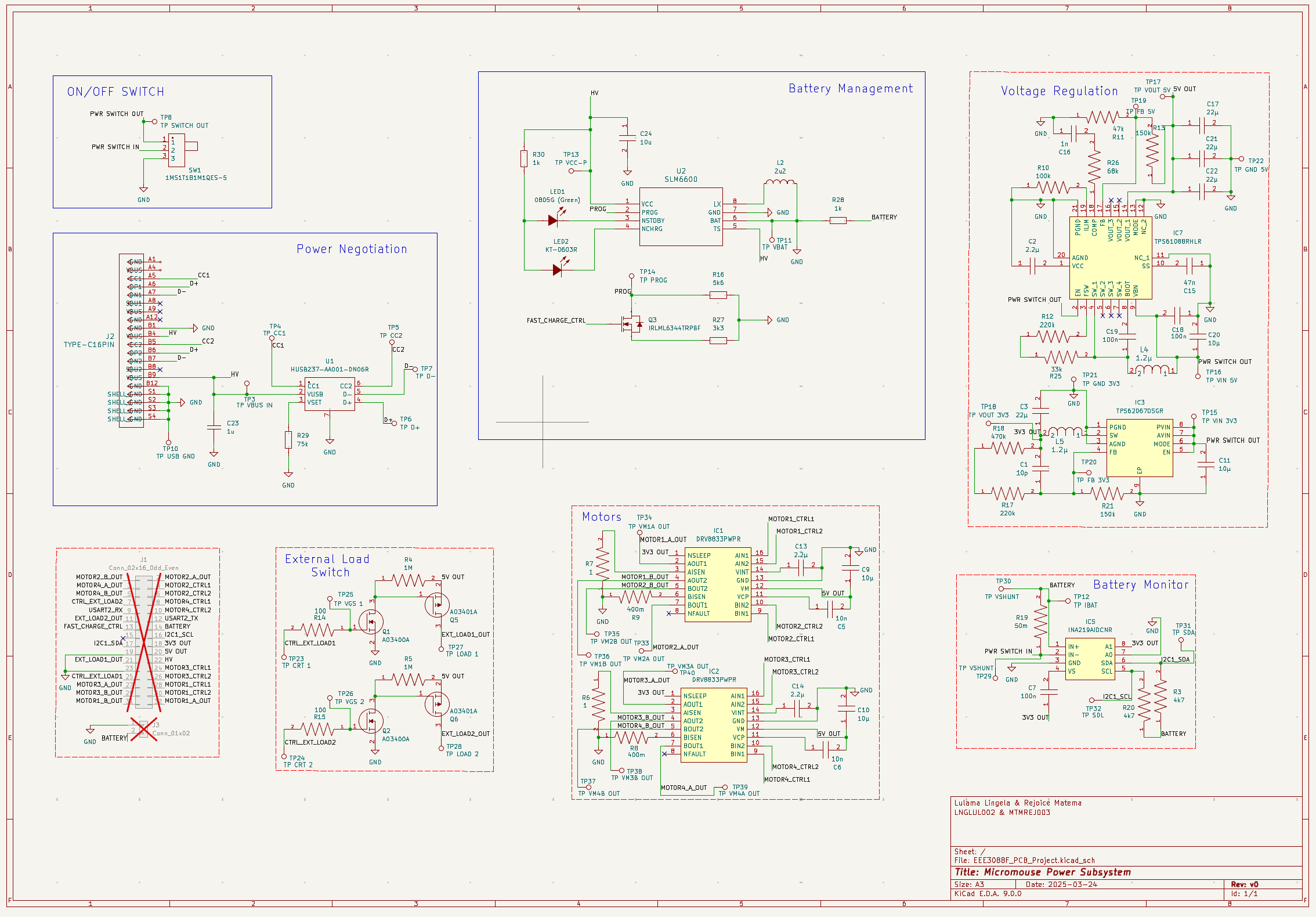

Micromouse-Lula and-Rejoice, from the project README
From the project README

Main components on the Micromouse-Lula and-Rejoice

DRV8833PWPRTPS62067DSGRINA219AIDCNRTPS61088RHLRHUSB237-AA001-DN06RSLM6600

Micromouse-Lula and-Rejoice bill of materials (BOM)

65 components, 43 distinct parts.

QtyPartRefs
2
DRV8833PWPR
IC1, IC2
1
TPS62067DSGR
IC3
1
INA219AIDCNR
IC5
1
TPS61088RHLR
IC7
1
HUSB237-AA001-DN06R
Hynetek(慧能泰)
U1
1
SLM6600
U2
2
AO3400A
Q1, Q2
1
IRLML6344TRPBF
Infineon(英飞凌)
Q3
2
AO3401A
Q5, Q6
1
TYPE-C16PIN
J2
1
1MS1T1B1M1QES-5
Dailywell(德利威)
SW1
1
0805G (Green)
KENTO
LED1
1
KT-0603R
KENTO
LED2
1
2u2
FH(风华)
L2
2
1.2µ
L4, L5
1
CL10C100JB8NNNC
10p
C1
3
CL31B225KBHNNNE
2.2µ
C2, C13, C14
1
CL21A226MAQNNNE
22µ
C3
2
CL21B103KBANNNC
10n
C5, C6
3
CL31B104KBCNNNC
100n
C7, C18, C19
Show 23 more
QtyPartRefs
4
CL31A106KBHNNNE
10µ
C9, C10, C11, C20
1
CL10B473KB8NNNC
47n
C15
1
1206B102K202NT
1n
C16
3
CL31A226KAHNNNE
22µ
C17, C21, C22
1
1u
SAMSUNG(三星)
C23
1
CL31A106KBHNNNE
10u
C24
2
4k7
R3, R20
2
1M
R4, R5
2
1
R6, R7
2
400m
R8, R9
1
100k
R10
1
47k
R11
2
220k
R12, R17
2
150k
R13, R21
2
100
R14, R15
1
5k6
UNI-ROYAL(厚声)
R16
1
470k
R18
1
50m
R19
1
33k
R25
1
68k
R26
1
3k3
UNI-ROYAL(厚声)
R27
2
1k
UNI-ROYAL(厚声)
R28, R30
1
75k
UNI-ROYAL(厚声)
R29

Micromouse-Lula and-Rejoice design files

The KiCad project lives in the LlamaLuLu/Micromouse-Lula-and-Rejoice repository on GitHub; these links point at the commit this page was built from.

Micromouse-Lula and-Rejoice: common questions

How big is the Micromouse-Lula and-Rejoice PCB?

The Micromouse-Lula and-Rejoice measures 82 × 60 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Micromouse-Lula and-Rejoice?

65 components, from 43 distinct parts. The full bill of materials is listed on this page.

Where can I download the Micromouse-Lula and-Rejoice design files?

From the LlamaLuLu/Micromouse-Lula-and-Rejoice repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Micromouse-Lula and-Rejoice design in my own project?

The repository has no license, so all rights stay with LlamaLuLu. Use it as a reference, and ask the author before reusing the design.
