Placa

lmtreser·Proyectos-Educativos·Internet of Things/Project Neon UNMdP FI/hardware/placa con vias/placa.kicad_pcb

Placa PCB layout, top view — open source ESP32 board by lmtreser

About the Placa PCB

Placa is an open source ESP32 PCB design by lmtreser, published on GitHub. It is a 2-layer board measuring 76.7 × 68.6 mm, with 20 components from 15 distinct parts.

Its main chip is the ESP32-DevKitC, from the ESP32 family. By type, the board carries 10 connectors, 3 diodes, 3 resistors, 2 switches and 1 IC.

It belongs with the iot & wireless designs in this gallery.

From the project

Proyectos educativos diversos, generalmente con participación activa de alumnos

Hands on Iot es un curso dictado por el Laboratorio de Instrumentación Virtual y Robótica Aplicada (LIVRA) de la Facultad de Ingenieria de la Universidad Nacional de Mar del Plata.

- Experimentar en las tecnologías que involucra IoT - Comprender el funcionamiento de los dispositivos IoT basados en microcontrolador - Conexión y aplicación de Sensores digitales, analógicos y Actuadores - Desarrollar firmware de los dispositivo IoT y software de Servidores Web - Conocer y Aplicar herramientas de desarrollo y tecnologías de Plataformas IoT en la nube y API de acceso a los datos - Reflexionar…

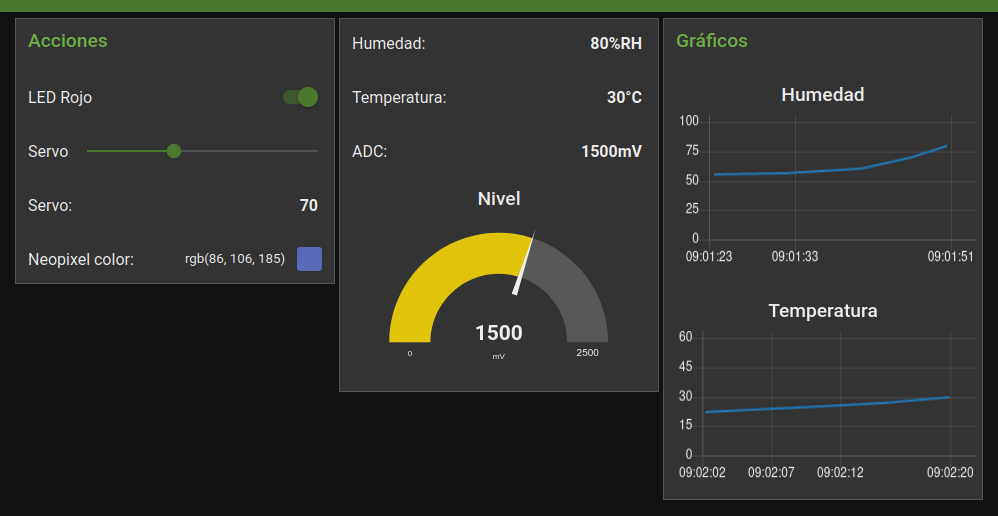

Placa, from the project README
From the project README

Main components on the Placa

ESP32-DevKitC

Placa bill of materials (BOM)

20 components, 15 distinct parts.

QtyPartRefs
1
ESP32-DevKitC
U1
1
DHT11
J1
1
NeoPixel
J2
1
Servo
J3
1
Conn_01x03_Male
J4
2
Screw_Terminal_01x02
J5, J6
1
Conn_01x06_Female
J7
1
Conn_01x02_Male
J8
2
Conn_01x01_Male
J11, J12
1
R_Potentiometer
RV1
2
SW_Push
SW1, SW2
1
ROJO
D1
1
AMARILLO
D2
1
VERDE
D3
3
470
R1, R2, R3

Placa design files

The KiCad project lives in the lmtreser/Proyectos-Educativos repository on GitHub; these links point at the commit this page was built from.

Placa: common questions

What microcontroller does the Placa use?

The Placa is built around the ESP32-DevKitC, from the ESP32 family.

How big is the Placa PCB?

The Placa measures 76.7 × 68.6 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Placa?

20 components, from 15 distinct parts. The full bill of materials is listed on this page.

Where can I download the Placa design files?

From the lmtreser/Proyectos-Educativos repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Placa design in my own project?

The repository has no license, so all rights stay with lmtreser. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Placa without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
