AIME PCB layout, top view — open source ESP32 board by louisrousset

About the AIME PCB

AIME is an open source ESP32 PCB design by louisrousset, published on GitHub. It is a 2-layer board measuring 40 × 54 mm, with 14 components from 10 distinct parts.

Its main chip is the Custom, from the ESP32 family. Other key parts include the DM-OLED096-636. By type, the board carries 6 resistors, 3 connectors, 3 capacitors and 1 IC.

It belongs with the iot & wireless, audio and sensors designs in this gallery.

From the project

The project covers the full development cycle, from sensor fabrication to data visualization. A custom PCB was designed, and ESP32 firmware was developed to exploit the gas sensor measurements and transmit the data wirelessly. The collected data is then processed and displayed on

The project covers the full development cycle, from sensor fabrication to data visualization. A custom PCB was designed, and ESP32 firmware was developed to exploit the gas sensor measurements and transmit the data wirelessly. The collected data is then processed and displayed on a web-based interface.

The system relies on LoRa communication for long-range data transmission and integrates both hardware and software components.

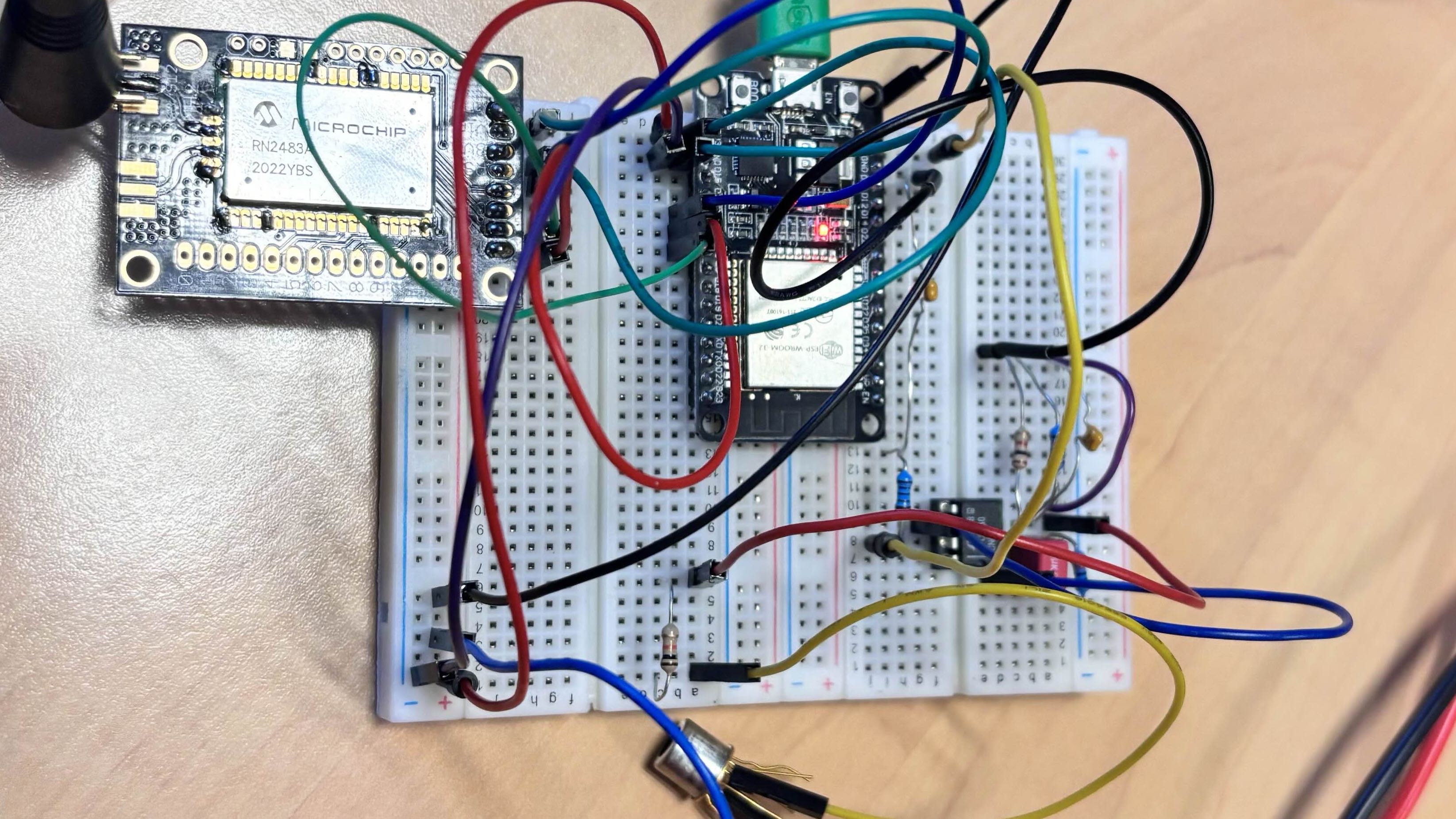

AIME, from the project README
From the project README

Main components on the AIME

DM-OLED096-636

AIME bill of materials (BOM)

14 components, 10 distinct parts.

QtyPartRefs
1
DM-OLED096-636
U1
1
Conn_01x08_Socket
J1
1
Conn_ESP32_Custom
J2
1
Conn_01x02_Socket
J3
1
~
LTC1050
2
100n
C1, C2
1
1µ
C4
2
100k
R1, R6
2
1k
R2, R5
2
10k
R4, R7

AIME design files

The KiCad project lives in the louisrousset/AIME repository on GitHub; these links point at the commit this page was built from.

AIME: common questions

What microcontroller does the AIME use?

The AIME is built around the Custom, from the ESP32 family.

How big is the AIME PCB?

The AIME measures 40 × 54 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the AIME?

14 components, from 10 distinct parts. The full bill of materials is listed on this page.

Where can I download the AIME design files?

From the louisrousset/AIME repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the AIME design in my own project?

The repository has no license, so all rights stay with louisrousset. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the AIME without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
