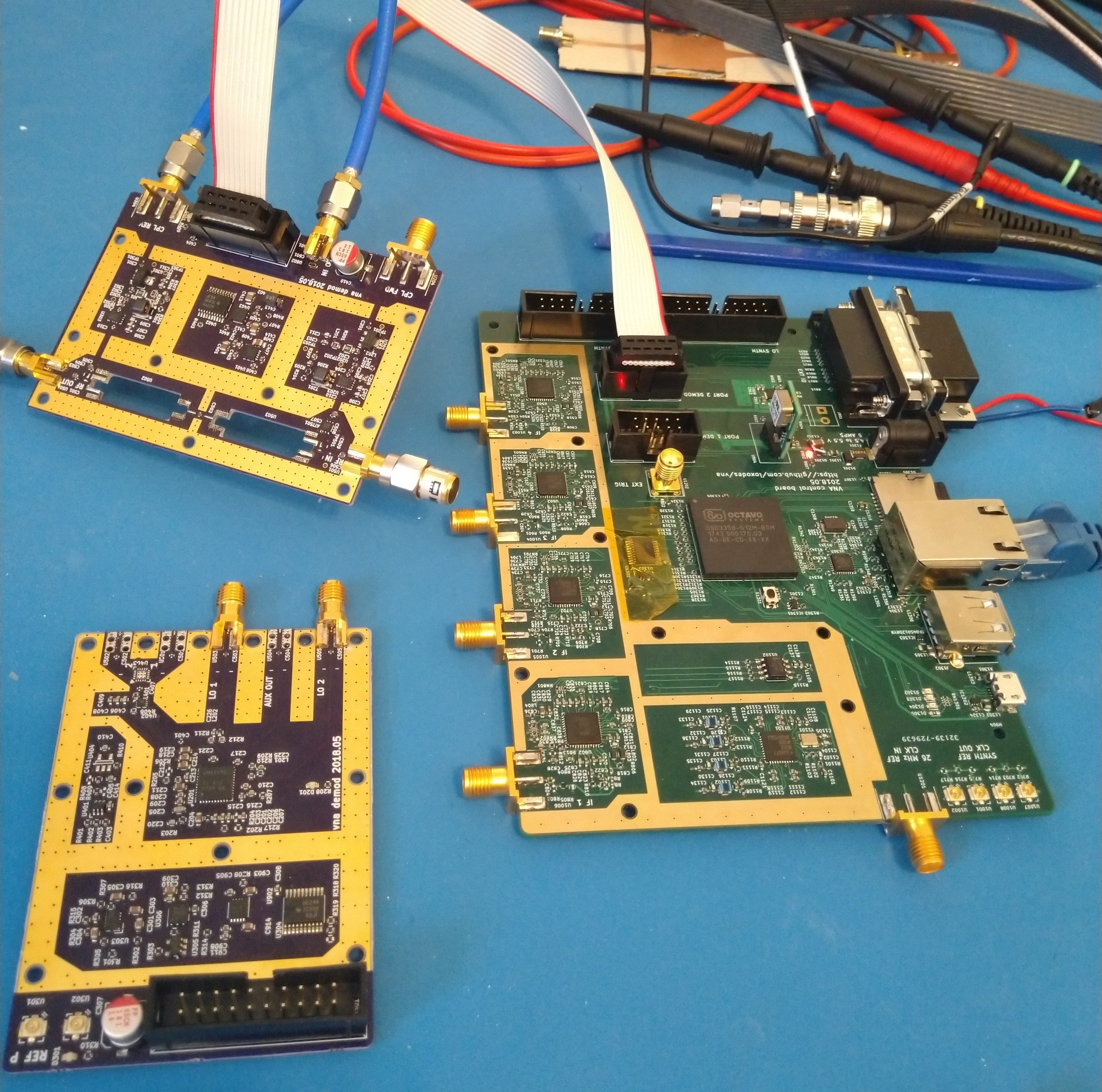

About the Synth PCB
Synth is an open source PCB design by loxodes, published on GitHub. It is a 4-layer board measuring 47 × 27.5 mm, with 80 components from 23 distinct parts.
Other key parts include the TXCO, LMX2592 and mounting_box. By type, the board carries 40 capacitors, 27 resistors, 8 ICs, 2 diodes, 2 inductors and 1 connector.
It belongs with the audio designs in this gallery.
From the project
Under development open hardware microwave vector network analyzer

Main components on the Synth
Synth bill of materials (BOM)
80 components, 23 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 5 | CONN_SMA | 732512200_SMA | U1, U4, U5, U6, U7 |
| 1 | TXCO | crystal_FA238-TSX3225 | U2 |
| 1 | LMX2592 | QFN-40-1EP_6x6mm_Pitch0.5mm | U3 |
| 1 | mounting_box | POMONA_2400BOX | U8 |
| 1 | CONN_01X07 | Pin_Header_Straight_1x07 | P1 |
| 2 | LED | LED_0603 | D1, D2 |
| 2 | 18 nF | R_0402 | L1, L2 |
| 19 | 100 nF | C_0402 | C1, C3, C5, C7, C9, C10, C11, C13 +11 |
| 9 | 10 uF | C_0603 | C2, C4, C6, C8, C12, C21, C22, C26 +1 |
| 2 | 1 uF | C_0402 | C14, C19 |
| 1 | 47 nF | C_0402 | C15 |
| 1 | 560 pF | C_0402 | C17 |
| 1 | DNP | C_0402 | C23 |
| 1 | 6800 pF | C_0402 | C24 |
| 6 | 30 pF | C_0402 | C29, C31, C33, C35, C37, C39 |
| 1 | R_Small | R_0402 | R1 |
| 2 | DNP | R_0402 | R2, R4 |
| 3 | 0 | R_0402 | R3, R5, R11 |
| 8 | 1k | R_0402 | R6, R7, R8, R12, R13, R14, R15, R16 |
| 1 | 150 | R_0402 | R9 |
Show 3 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 12 | R_0402 | R10 |
| 1 | 680 | R_0402 | R17 |
| 10 | 49.9 | R_0402 | R18, R19, R20, R21, R22, R23, R24, R25 +2 |
Synth design files
The KiCad project lives in the loxodes/vna repository on GitHub; these links point at the commit this page was built from.
Synth: common questions
How big is the Synth PCB?
The Synth measures 47 × 27.5 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the Synth?
80 components, from 23 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Synth design files?
From the loxodes/vna repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the Synth design in my own project?
The repository has no license, so all rights stay with loxodes. Use it as a reference, and ask the author before reusing the design.
