Sin nombre v8 spin off

lucahttp·PortablePi·portablePi v4 USBKeyborad from zero/sin nombre v8 spin off.kicad_pcb

Sin nombre v8 spin off PCB layout, top view — open source Raspberry Pi board by lucahttp

About the Sin nombre v8 spin off PCB

Sin nombre v8 spin off is an open source Raspberry Pi PCB design by lucahttp, published on GitHub. It is a 2-layer board measuring 101.6 × 141.1 mm, with 61 components from 5 distinct parts.

Its main chip is the Raspberry_Pi_Zero_W_(v1.3), from the Raspberry Pi family. Other key parts include the ATmega328P-PU. By type, the board carries 57 switches, 2 ICs and 1 connector.

From the project

Make your Raspberry Pi portable to edit your code anywhere

Is a Father Board witch can connect to the raspberry pi (currently compatible to this gpio configuration, orange pi thinkercard, an anothers) this aport an Screen and keyboard (on one board) then i will add more things like audio jack, ethernet port, hub USB and everything you can imagine and put in your pockets.

everything looked like fine until the company that makes CHIP, declared bankrupt.

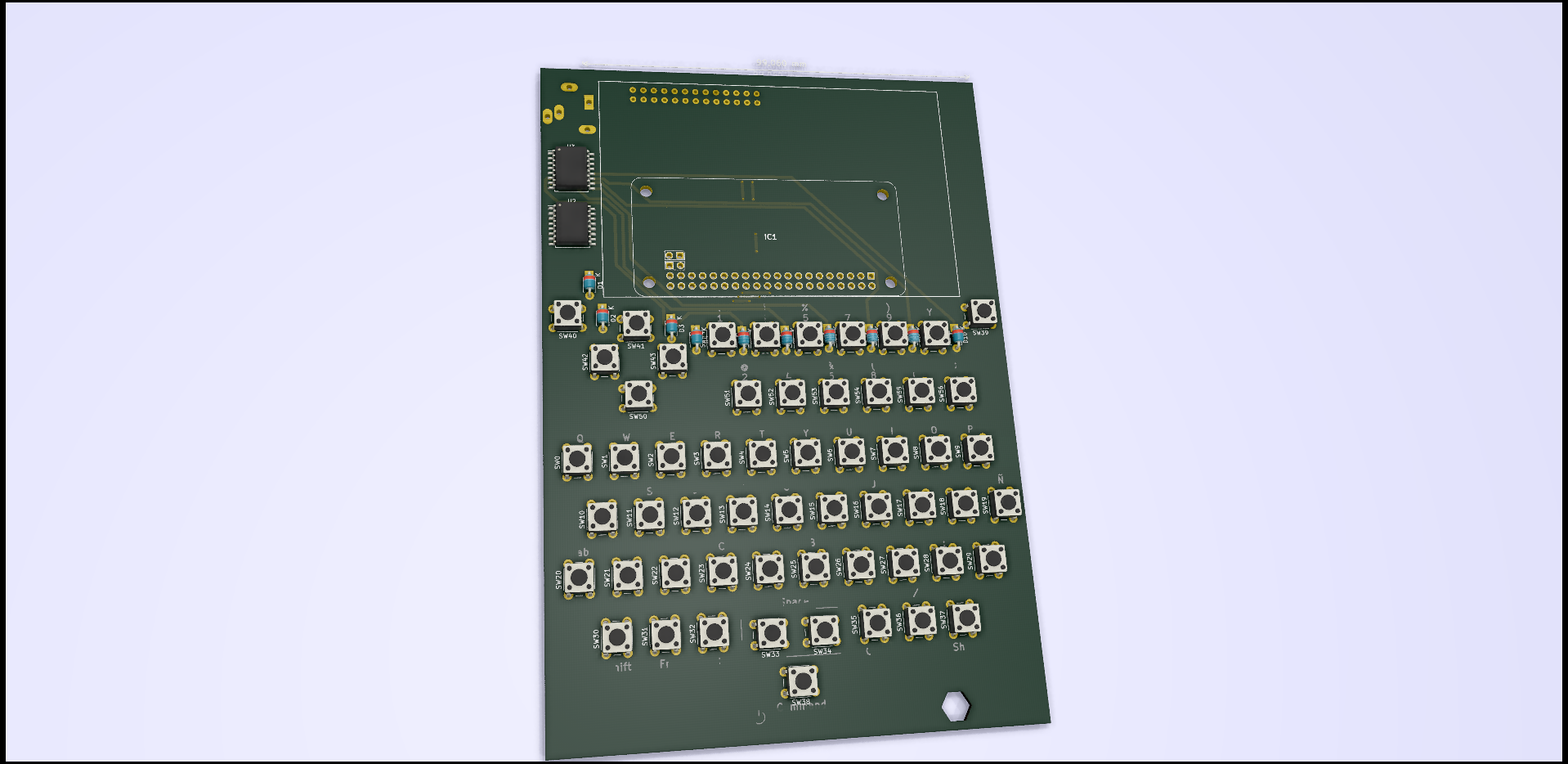

Sin nombre v8 spin off, from the project README
From the project README

Main components on the Sin nombre v8 spin off

Raspberry_Pi_Zero_W_(v1.3)ATmega328P-PU

Sin nombre v8 spin off bill of materials (BOM)

61 components, 5 distinct parts.

QtyPartRefs
1
Raspberry_Pi_Zero_W_(v1.3)
IC1
1
ATmega328P-PU
U1
1
AudioJack3
J1
1
3.5_Inch_RPI
DS1
57
SW_Push
SW0, SW1, SW2, SW3, SW4, SW5, SW6, SW7 +49

Sin nombre v8 spin off design files

The KiCad project lives in the lucahttp/PortablePi repository on GitHub; these links point at the commit this page was built from.

Sin nombre v8 spin off: common questions

What microcontroller does the Sin nombre v8 spin off use?

The Sin nombre v8 spin off is built around the Raspberry_Pi_Zero_W_(v1.3), from the Raspberry Pi family.

How big is the Sin nombre v8 spin off PCB?

The Sin nombre v8 spin off measures 101.6 × 141.1 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Sin nombre v8 spin off?

61 components, from 5 distinct parts. The full bill of materials is listed on this page.

Where can I download the Sin nombre v8 spin off design files?

From the lucahttp/PortablePi repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Sin nombre v8 spin off design in my own project?

The repository has no license, so all rights stay with lucahttp. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Sin nombre v8 spin off without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Raspberry Pi firmware against it before you order a PCB.
