Cutie-Wardriver
About the Cutie-Wardriver PCB
Cutie-Wardriver is an open source ESP32 PCB design by LyndLabs, published on GitHub under the MIT license. It is a 2-layer board measuring 39 × 63 mm, with 13 components from 13 distinct parts.
Its main chip is the XIAO ESP32-S2, from the ESP32 family. Other key parts include the ATGM336H. By type, the board carries 5 connectors, 5 switches and 3 ICs.
It belongs with the power & battery designs in this gallery.
From the project

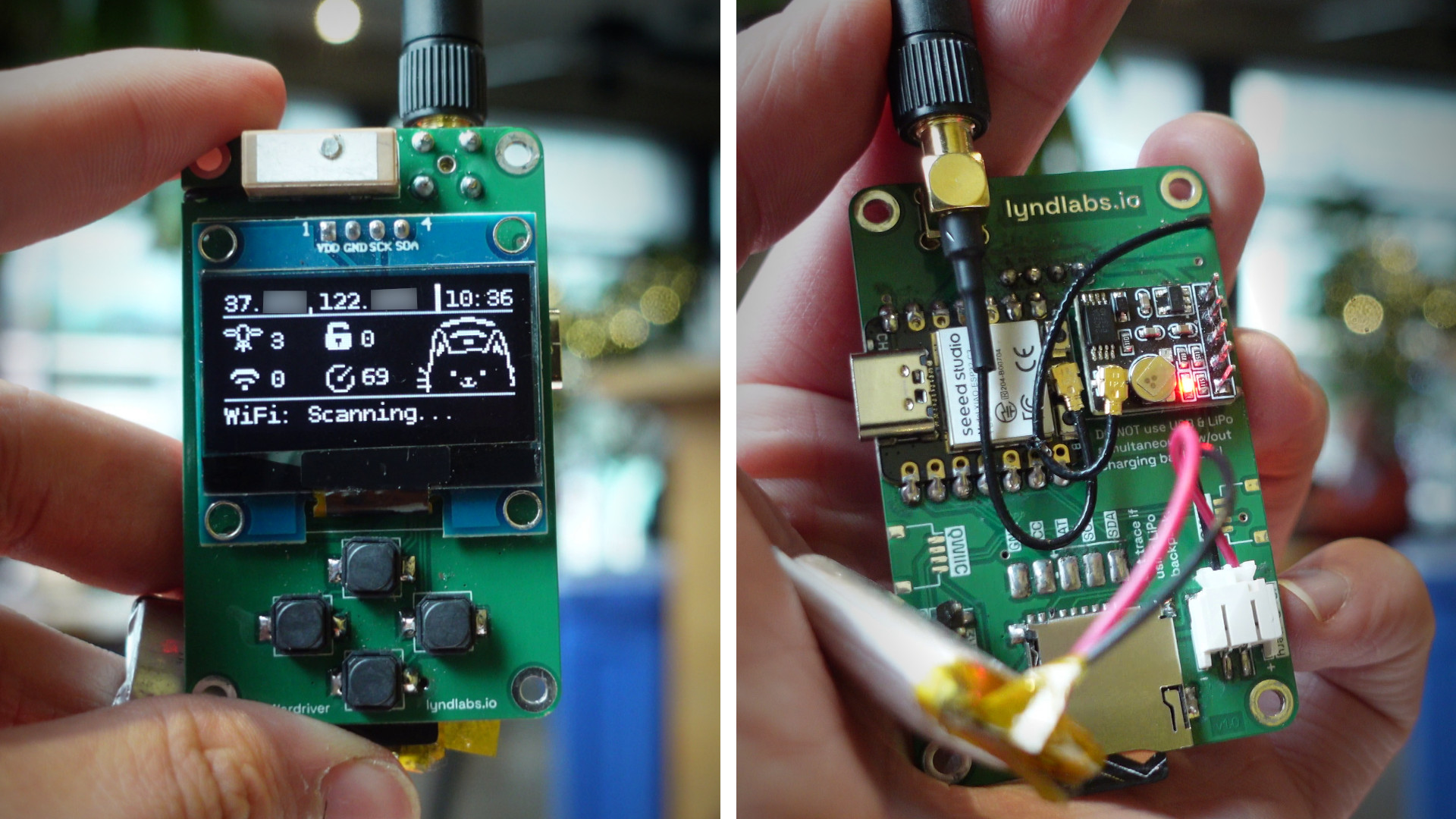

The Cute ESP32 Pocket Wardriver! Based on the Xiao / QT-Py boards.
Main components on the Cutie-Wardriver
Cutie-Wardriver bill of materials (BOM)
13 components, 13 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | XIAO ESP32-S2 | MOUDLE14P-SMD-2.54-21X17.8MM | U1 |
| 1 | ATGM336H | ATGM336H-GPS | U2 |
| 1 | ~ | MiniMeter | U4 |
| 1 | MICRO-SD CARD | MicroSD | J1 |
| 1 | Conn_01x02_Female | JST_PH_S2B-PH-SM4-TB_1x02-1MP_P2.00mm_Horizontal | J2 |
| 1 | Qwiic Connector | JST_SH_SM04B-SRSS-TB_1x04-1MP_P1.00mm_Horizontal | J3 |
| 1 | SH1106 | SH1106 | J4 |
| 1 | Conn_01x05_Female | PinHeader_1x05_P2.54mm_Vertical_SMD_Pin1Left | J6 |
| 1 | Up | Smol | SW1 |
| 1 | Left | Smol | SW2 |
| 1 | Right | Smol | SW3 |
| 1 | Down | Smol | SW4 |
| 1 | SW_SPST | SW_SPDT_PCM12 | SW5 |
Cutie-Wardriver design files
The KiCad project lives in the LyndLabs/Cutie-Wardriver repository on GitHub; these links point at the commit this page was built from.
Cutie-Wardriver: common questions
What microcontroller does the Cutie-Wardriver use?
The Cutie-Wardriver is built around the XIAO ESP32-S2, from the ESP32 family.
How big is the Cutie-Wardriver PCB?
The Cutie-Wardriver measures 39 × 63 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Cutie-Wardriver?
13 components, from 13 distinct parts. The full bill of materials is listed on this page.
Where can I download the Cutie-Wardriver design files?
From the LyndLabs/Cutie-Wardriver repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Cutie-Wardriver design in my own project?
Yes, under the terms of its MIT license, which LyndLabs chose for the repository.
Can I test firmware for the Cutie-Wardriver without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
