Module17 HMI Back Panel
M17-Project·Module_17·hardware/side_panels/Module17-Side_Panels_Back.kicad_pcb
About the Module17 HMI Back Panel PCB
Module17 HMI Back Panel is an open source PCB design by M17-Project, published on GitHub under the CERN-OHL-W-2.0 license. It is a 2-layer board measuring 103 × 30.5 mm, with 4 components from 1 distinct parts.
It belongs with the audio and rf & radio designs in this gallery.
From the project
M17 modem board for 9600-baud capable radios

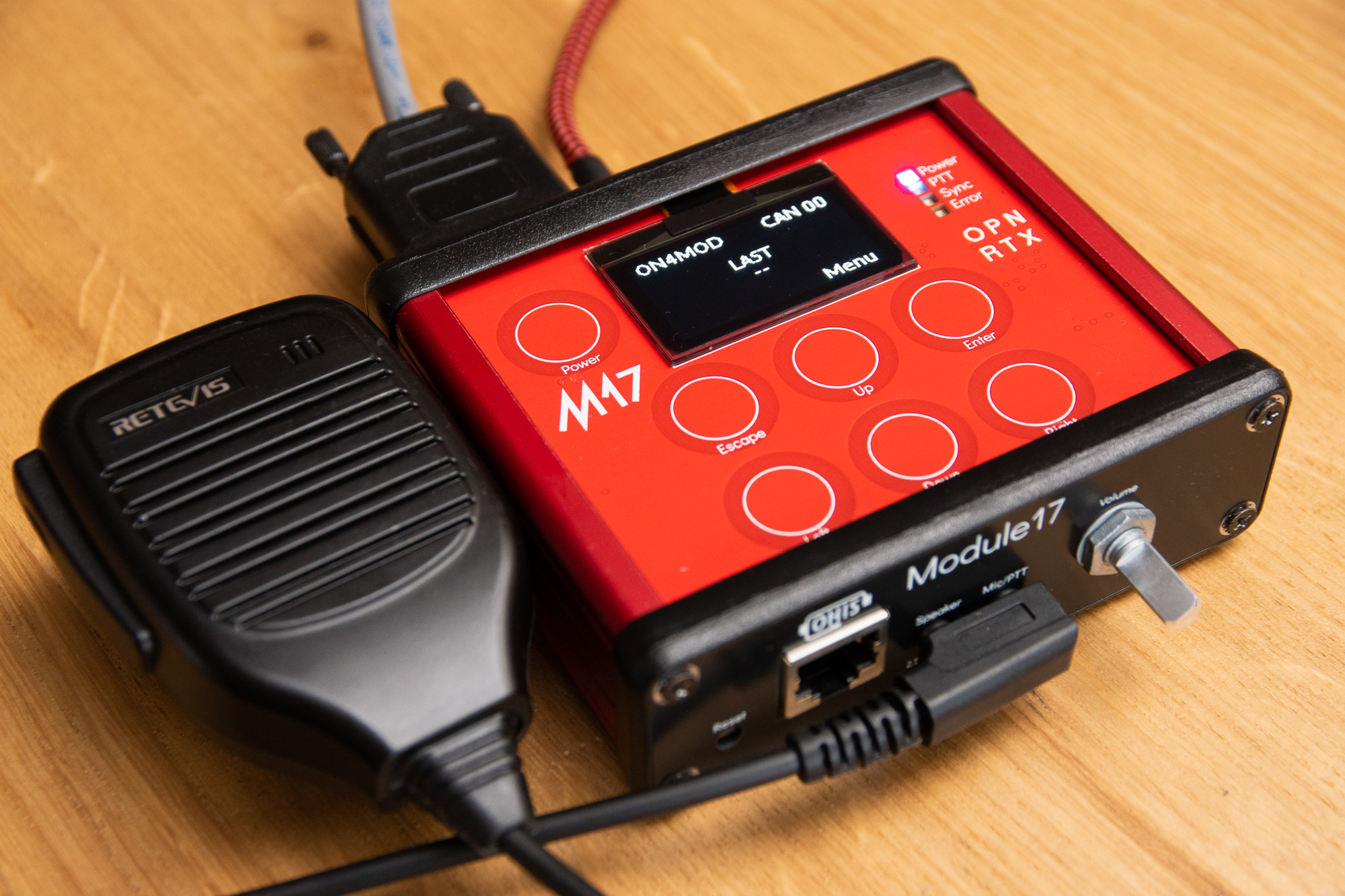

This project provides a standalone modem that transforms any 9600 baud capable transceiver into an M17 compatible radio. It is based on a STM32F4 microcontroller and is designed to run the OpenRTX firmware. Audio and PTT connectivity is given through a "Kenwood 2 Pin" compatible connector (2.5 and 3.5mm audio jacks) or an OHIS connector (this is NOT an internet connector). Power supply of 6 to 15 volts can be applied through a 5.5/2.5mm DC plug.

Module17 HMI Back Panel bill of materials (BOM)
4 components, 1 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 4 | MountingHole_Pad | MountingHole_3.7mm_Pad_Via_Small_Pad | H1, H2, H3, H4 |
Module17 HMI Back Panel design files
The KiCad project lives in the M17-Project/Module_17 repository on GitHub; these links point at the commit this page was built from.
Module17 HMI Back Panel: common questions
How big is the Module17 HMI Back Panel PCB?
The Module17 HMI Back Panel measures 103 × 30.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Module17 HMI Back Panel?
4 components, from 1 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Module17 HMI Back Panel design files?
From the M17-Project/Module_17 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Module17 HMI Back Panel design in my own project?
Yes, under the terms of its CERN-OHL-W-2.0 license, which M17-Project chose for the repository.
