KiKard old

m5kro·KiKard-old·hardware/kikard.kicad_pcb

KiKard old PCB layout, top view — open source Nordic nRF board by m5kro

About the KiKard old PCB

KiKard old is an open source Nordic nRF PCB design by m5kro, published on GitHub. It is a 2-layer board measuring 40 × 70 mm, with 70 components from 30 distinct parts.

Its main chip is the NRF52840-QIAA-R, from the Nordic nRF family. Other key parts include the ST25R3916-AQWT. By type, the board carries 46 capacitors, 5 resistors, 4 switches, 4 inductors, 3 crystals and 2 ICs.

From the project

Non working project

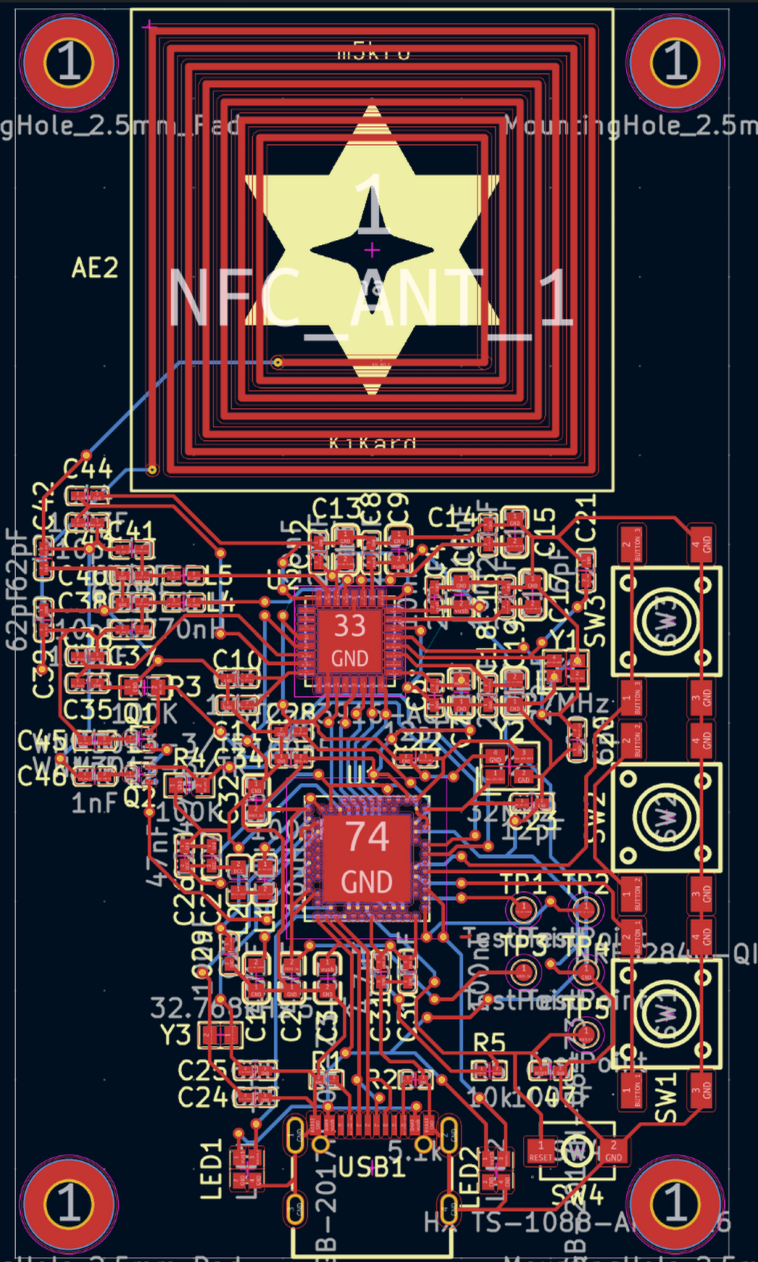

KiKard old, from the project README
From the project README

Main components on the KiKard old

NRF52840-QIAA-RST25R3916-AQWT

KiKard old bill of materials (BOM)

70 components, 30 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
NRF52840-QIAA-R
U1
1
ST25R3916-AQWT
U2
2
WNM3013-3/TR
Q1, Q2
1
27MHz
Y1
1
32MHz
Y2
1
32.768kHz
Y3
1
Antenna_Loop
AE2
3
K2-6639SP-C4SC-04
SW1, SW2, SW3
1
HX TS-1088-AR02016
SW4
1
TYPE-C16PIN
USB1
2
ZSRGB-2017H-08-Z3
LED1, LED2
1
10uH
L1
1
15nH
L2
2
270nH
L4, L5
4
4.7uF
C1, C2, C3, C32
8
10nF
C4, C6, C8, C10, C12, C14, C16, C18
7
2.2uF
C5, C7, C9, C13, C15, C17, C19
2
1uF
C11, C27
4
6pF
C20, C21, C24, C25
2
12pF
C22, C23
Show 10 more
QtyPartRefs
1
47nF
C26
6
100nF
C28, C29, C30, C31, C34, C47
4
100pF
C35, C37, C41, C44
2
10pF
C36, C43
2
680pF
C38, C40
2
62pF
C39, C42
2
1nF
C45, C46
2
5.1k
R1, R2
2
100K
R3, R4
1
10k
R5

KiKard old design files

The KiCad project lives in the m5kro/KiKard-old repository on GitHub; these links point at the commit this page was built from.

KiKard old: common questions

What microcontroller does the KiKard old use?

The KiKard old is built around the NRF52840-QIAA-R, from the Nordic nRF family.

How big is the KiKard old PCB?

The KiKard old measures 40 × 70 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the KiKard old?

70 components, from 30 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the KiKard old design files?

From the m5kro/KiKard-old repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the KiKard old design in my own project?

The repository has no license, so all rights stay with m5kro. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the KiKard old without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Nordic nRF firmware against it before you order a PCB.
