ED060SC4-Driver-Board-Hardware layout, top view — open source STM32 board by Mael-Le-Garrec
Simulate this board

About the ED060SC4-Driver-Board-Hardware

ED060SC4-Driver-Board-Hardware is an open source STM32 PCB design by Mael-Le-Garrec, published on GitHub. It is a 4-layer board measuring 71.3 × 44.5 mm, with 73 components from 34 distinct parts.

Its main chip is the STM32F103C8T6, from the STM32 family. Other key parts include the TPS65185RGZR, USBLC6-4SC6 and USBLC6-2SC6. By type, the board carries 36 capacitors, 12 resistors, 7 diodes, 6 connectors, 5 ICs and 3 inductors.

It belongs with the displays & leds designs in this gallery.

From the project

Driver board for the ED060SC4 EPD.

This projects intends to be a SPI driver board for the E-Ink display screen ED060SC4.

This project is still under development, you can have a look at the schematics, the PCB or the components, but it's not finished and will likely change!

The board is centered around 3 building blocks:

- ED060SC4, EPD screen - STM32F103C8T6, microcontroller used to drive the screen - TPS65185, used to generate the different rails required

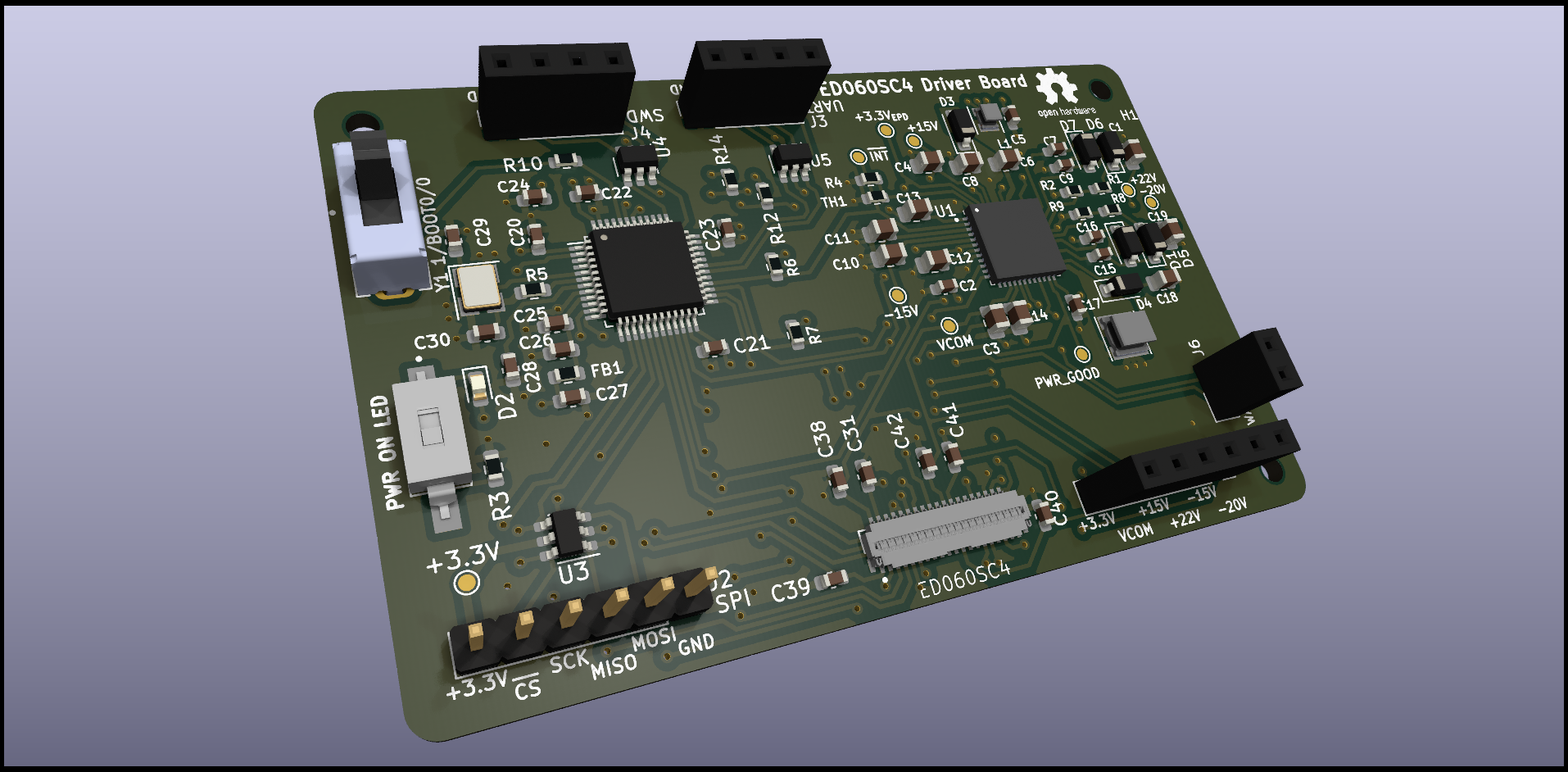

ED060SC4-Driver-Board-Hardware, from the project README
From the project README

Main components on the ED060SC4-Driver-Board-Hardware

TPS65185RGZRSTM32F103C8T6USBLC6-4SC6USBLC6-2SC6

ED060SC4-Driver-Board-Hardware bill of materials (BOM)

73 components, 34 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
TPS65185RGZR
U1
1
STM32F103C8T6
U2
1
USBLC6-4SC6
U3
2
USBLC6-2SC6
U4, U5
1
C112972
16MHz, 10pF
Y1
1
ED060SC4
J1
1
CONN_01X06
Conn_01x06
J2
2
CONN_01X04
Conn_01x04
J3, J4
1
CONN_01X06
Conn_01x06
J5
1
CONN_01X02
Conn_01x02
J6
1
SS12D07VG2
SW1
1
DSIC01LSGET
SW2
1
C13564
10k NTC
TH1
1
C82544
D
D1
1
C82544
RED
D2
2
C82544
D_Schottky
D3, D4
3
D
D5, D6, D7
1
C14709
120Ω@100MHz
FB1
1
C136232
2.2µH
L1
1
C92936
4.7µH
L2
Show 14 more
QtyPartRefs
12
C98192
4.7µF
C1, C3, C4, C6, C8, C10, C11, C12 +4
4
C85713
10µF
C2, C5, C17, C24
3
10NF
10nF
C7, C15, C25
9
100NF
100nF
C9, C16, C28, C31, C38, C39, C40, C41 +1
4
100nF
C20, C21, C22, C23
2
C5673
1µF
C26, C27
2
10PF
10pF
C29, C30
2
1M
R1, R8
1
47.5K
47.5k
R2
1
1k
R3
1
43K
43k
R4
1
0
R5
5
10K
10k
R6, R7, R10, R12, R14
1
52.3K
52.3k
R9

ED060SC4-Driver-Board-Hardware design files

The KiCad project lives in the Mael-Le-Garrec/ED060SC4-Driver-Board-Hardware repository on GitHub; these links point at the commit this page was built from.

ED060SC4-Driver-Board-Hardware: common questions

What microcontroller does the ED060SC4-Driver-Board-Hardware use?

The ED060SC4-Driver-Board-Hardware is built around the STM32F103C8T6, from the STM32 family.

How big is the ED060SC4-Driver-Board-Hardware?

The ED060SC4-Driver-Board-Hardware measures 71.3 × 44.5 mm, has 4 copper layers and is 1.599978 mm thick.

How many components are on the ED060SC4-Driver-Board-Hardware?

73 components, from 34 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the ED060SC4-Driver-Board-Hardware design files?

From the Mael-Le-Garrec/ED060SC4-Driver-Board-Hardware repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the ED060SC4-Driver-Board-Hardware design in my own project?

The repository has no license, so all rights stay with Mael-Le-Garrec. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the ED060SC4-Driver-Board-Hardware without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
