Raspberry pi hat gate control isolated
About the Raspberry pi hat gate control isolated
Raspberry pi hat gate control isolated is an open source PCB design by manhoosbilli1, published on GitHub. It is a 2-layer board measuring 65 × 56 mm, with 1 components from 1 distinct parts.
It belongs with the dev boards & breakouts and sensors designs in this gallery.
From the project

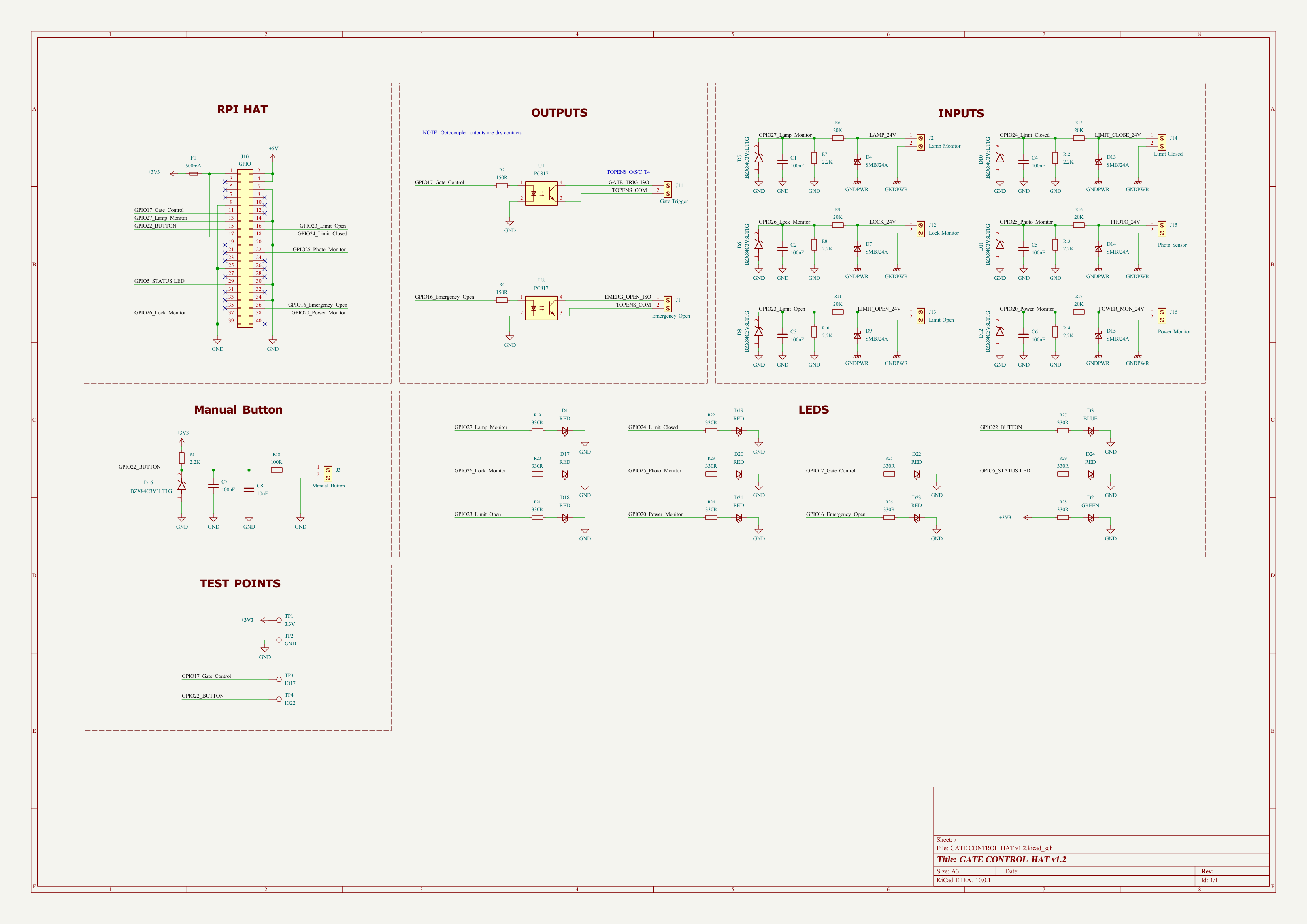

Raspberry Pi HAT for gate control with PC817 optocoupler-isolated power and lock monitoring inputs (v1.2)
Raspberry Pi HAT for gate control with PC817 optocoupler-isolated power / lock monitoring inputs (v1.2)
- Status: In progress - Board size: 65 x 56 mm - Layers: 2 - Components: 5 - Key ICs: - U1,U2: PC817
- 40-pin RPi GPIO header (Conn02x20) - stacks onto a Raspberry Pi as a HAT - PC817 optocouplers (multiple) - galvanic isolation for the field-side inputs (Power Monitor + Lock Monitor); protects the Pi from voltage spikes on long field cables - SMBJ24A - 24 V TVS diode for surge protection on the field input lines - BZX84C3V3LT1G - 3.3 V zener for input clamp/reference - Screw terminals…
Raspberry pi hat gate control isolated bill of materials (BOM)
1 components, 1 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | GPIO | PinSocket_2x20_P2.54mm_Vertical | J1 |
Raspberry pi hat gate control isolated design files
The KiCad project lives in the manhoosbilli1/raspberry-pi-hat-gate-control-isolated repository on GitHub; these links point at the commit this page was built from.
Raspberry pi hat gate control isolated: common questions
How big is the Raspberry pi hat gate control isolated?
The Raspberry pi hat gate control isolated measures 65 × 56 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Raspberry pi hat gate control isolated?
1 components, from 1 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Raspberry pi hat gate control isolated design files?
From the manhoosbilli1/raspberry-pi-hat-gate-control-isolated repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Raspberry pi hat gate control isolated design in my own project?
The repository has no license, so all rights stay with manhoosbilli1. Use it as a reference, and ask the author before reusing the design.
